Ignition Coil

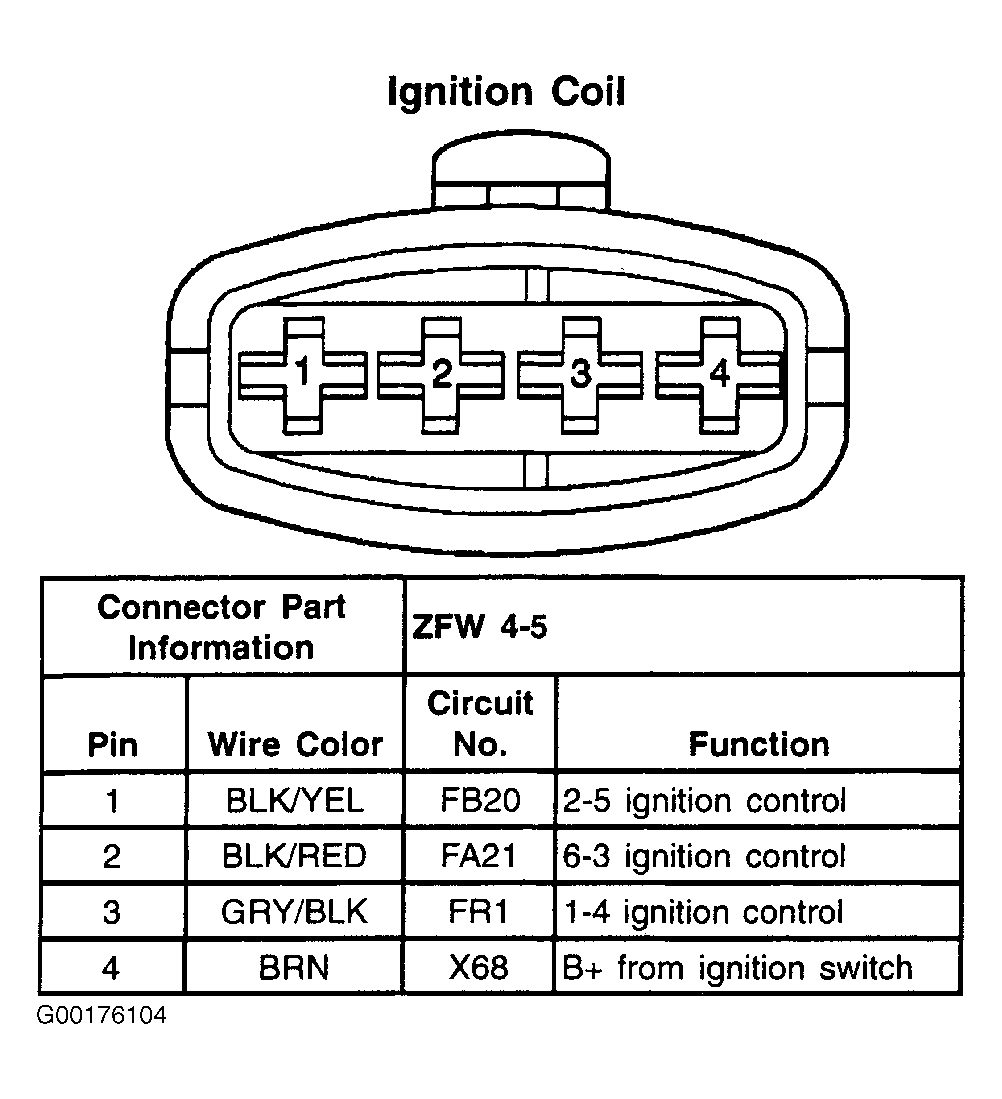

Fig 1: Ignition Coil - 4-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
