Knock Sensor (Bank 1)

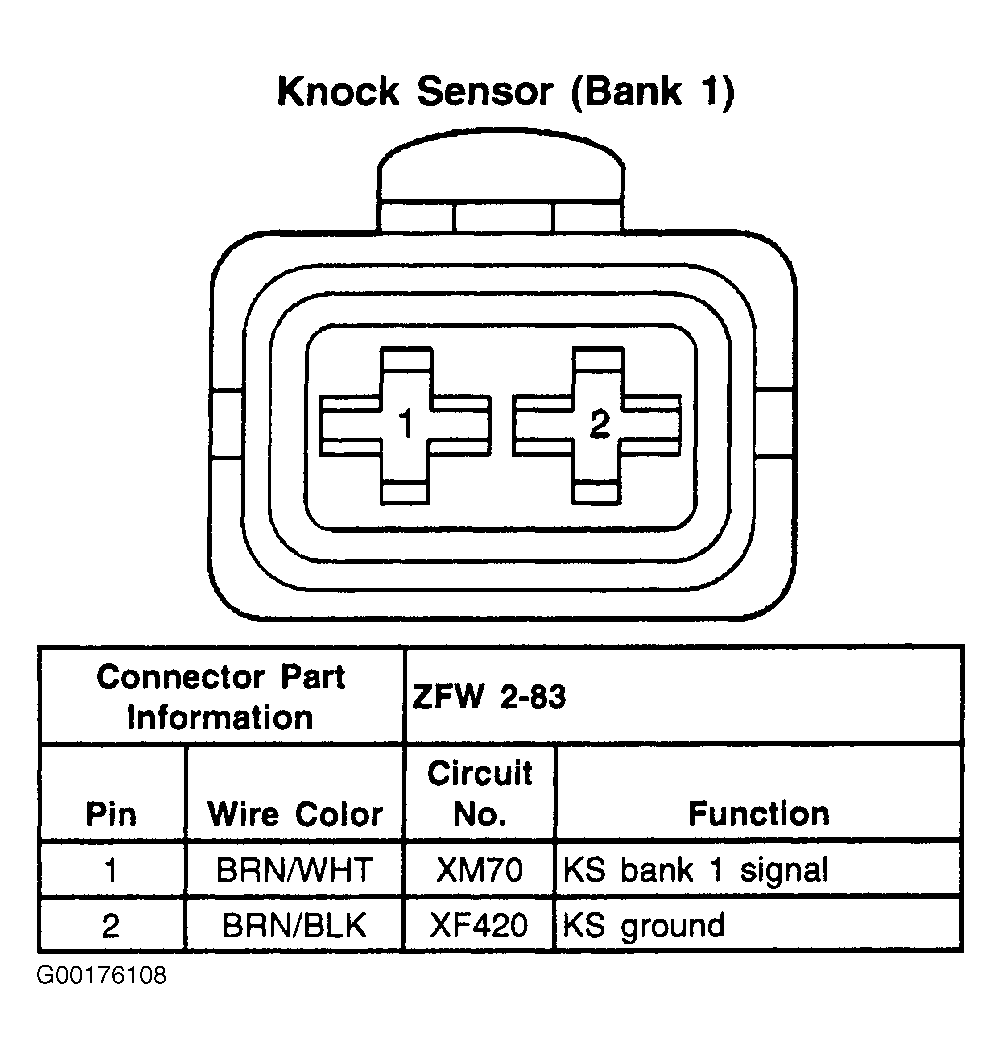

Fig 1: Knock Sensor (Bank 1) - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
