MULTIFUNCTION Relay K134

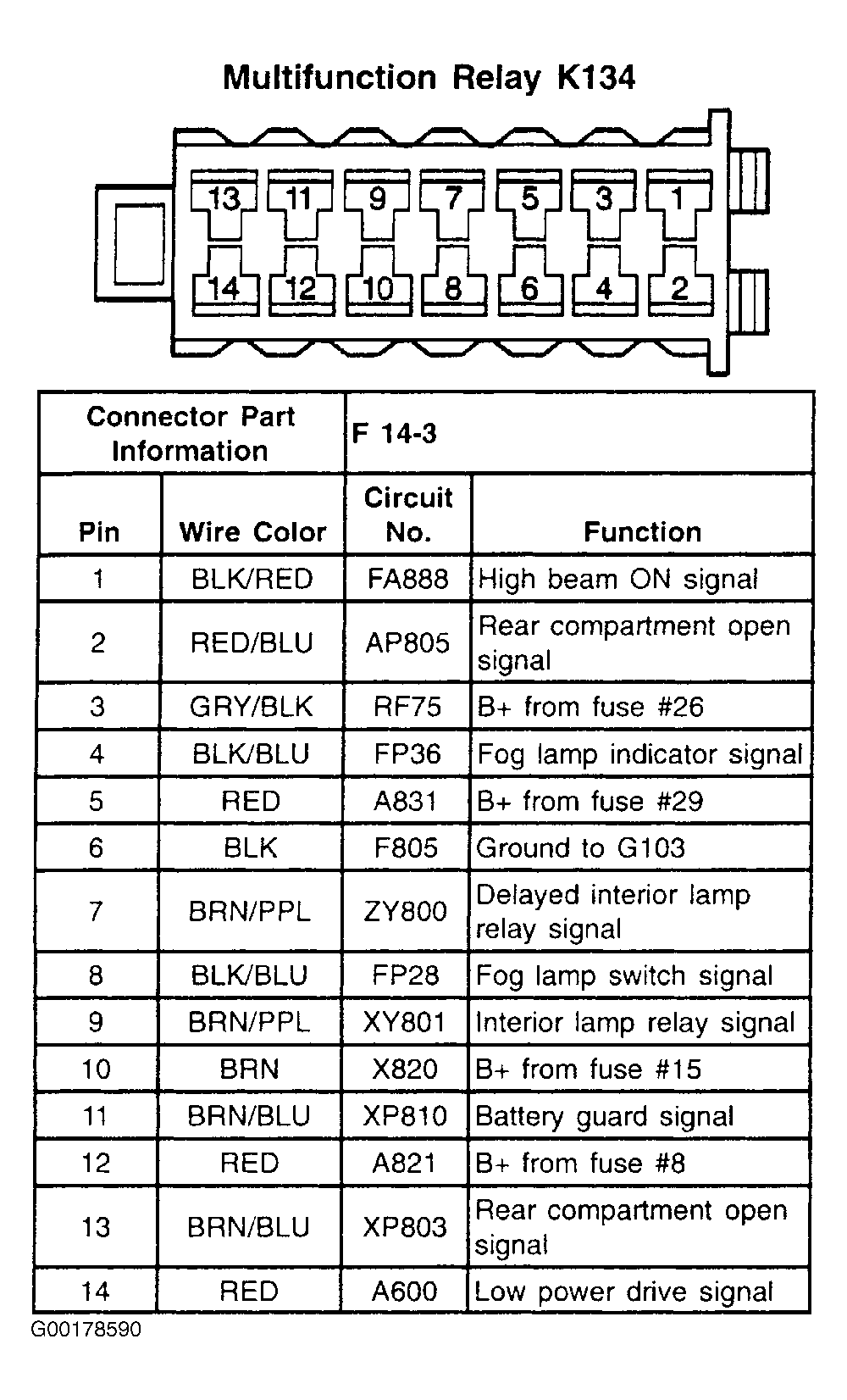

Fig 1: Multifunction Relay K134 - 14-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
