Driver Seat Adjuster Memory Module C2

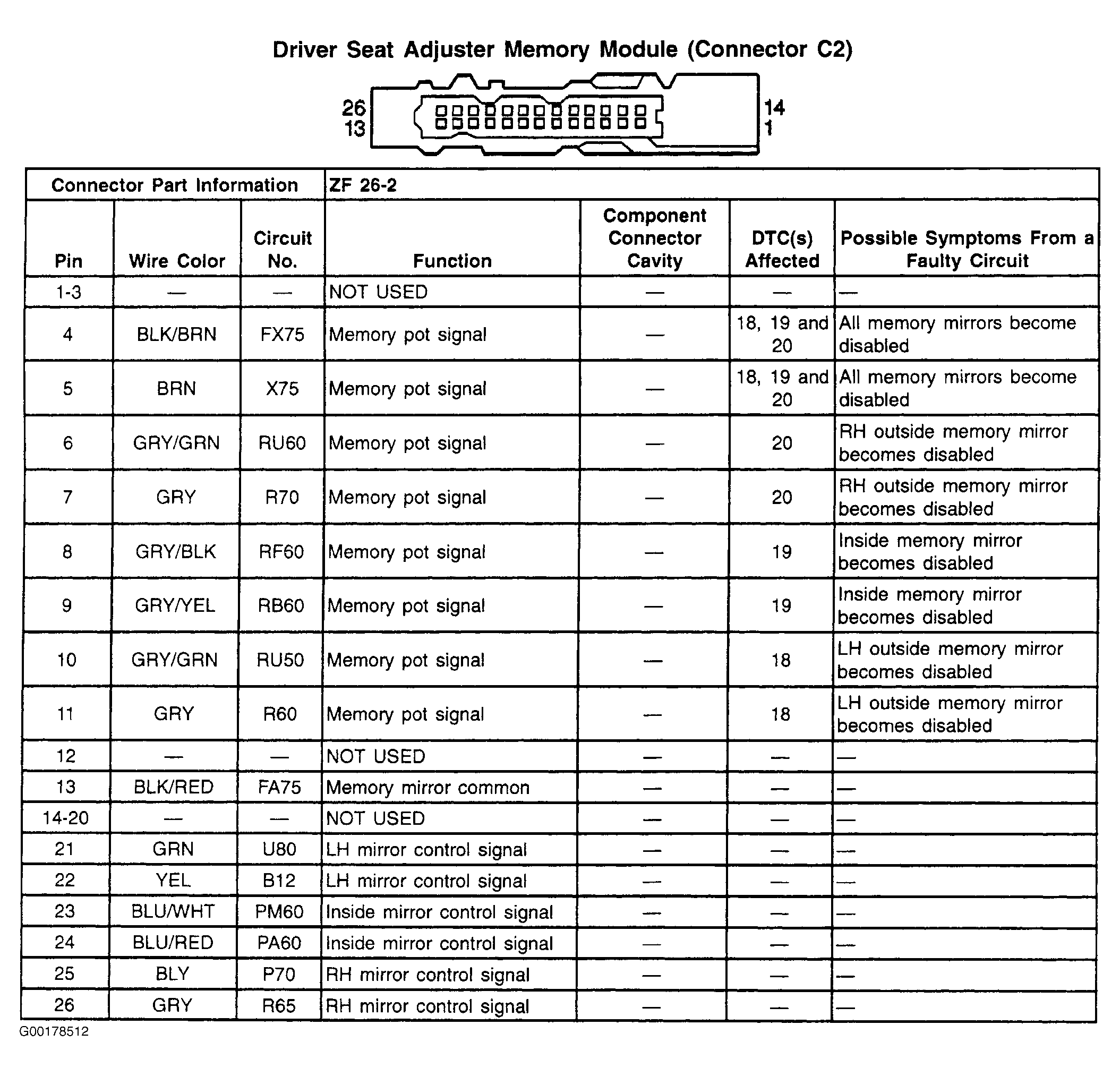

Fig 1: Driver Seat Adjuster Memory Module C2 - 26-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
