Power Steering Control Module

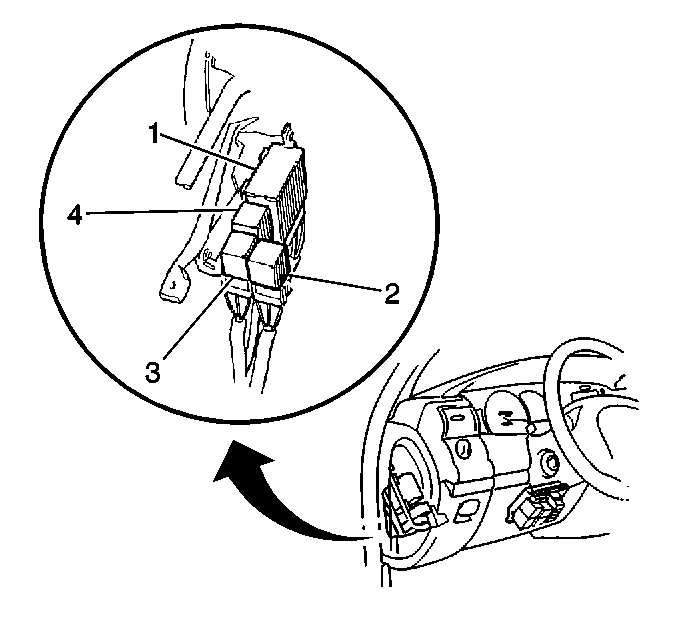

Fig 1: Power Steering Control Module
GM351091Courtesy of GENERAL MOTORS CORP.
  1. 1 Multifunction Relay K134
  2. 2 Passenger Seat Heater Relay K56
  3. 3 Driver Seat Heater Relay K55
  4. 4 Power Steering Control Module
