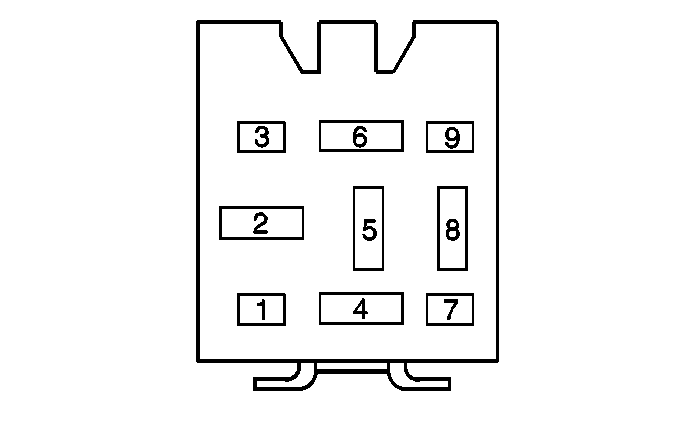

Power Steering Control Module

GM193830
Pin Wire Color Circuit No. Function
1 BRN/WHT XM88 Serial data
2 BLK/PPL FY102 Fluid control valve actuator signal
3 -- -- NOT USED
4 BLU/RED PA12 Vehicle speed signal
5 BLK/GRY FR4 Fluid control valve actuator signal
6 BRN X83 IGN
7 -- -- NOT USED
8 BLK F88 Ground to G103
9 -- -- NOT USED
