Removal & Installation (W/UE1)

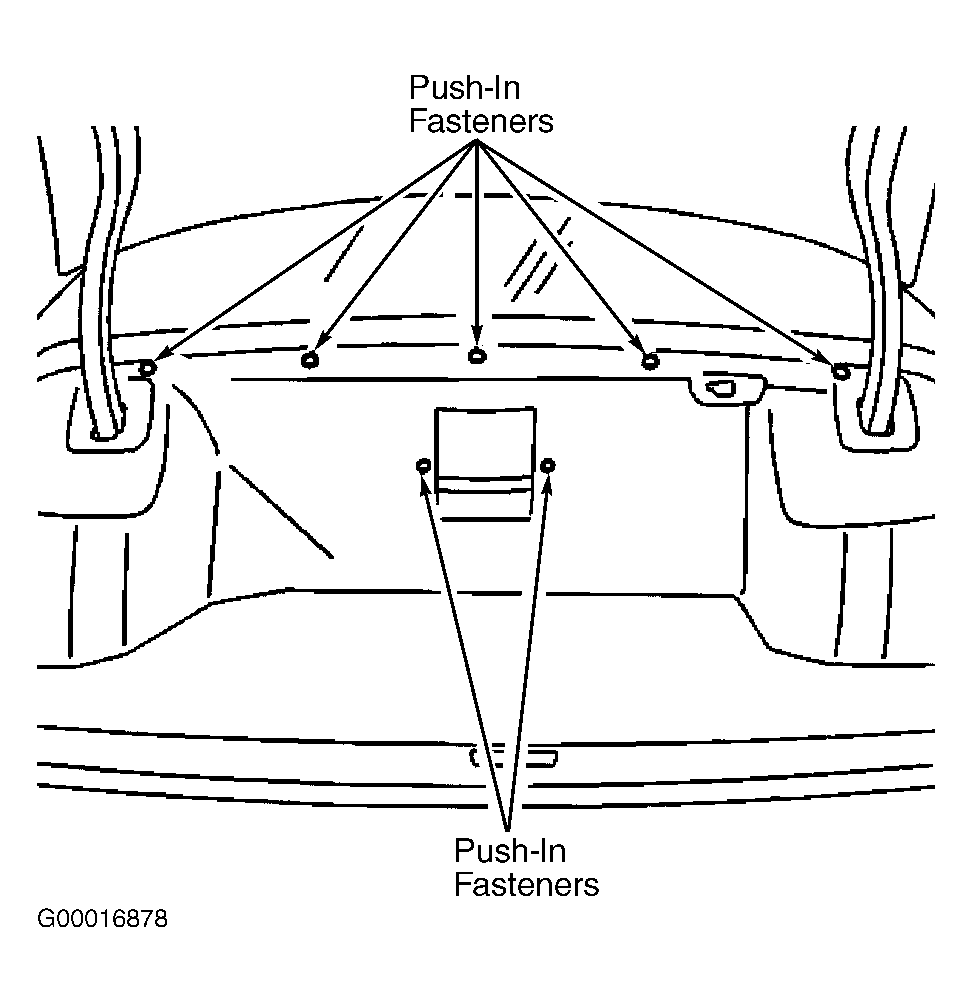

- Open rear compartment lid. Remove push in retainers from top edge and center of rear compartment front trim panel. See Figure
. Remove rear compartment front trim panel from rear compartment.
- Disconnect electrical connector from cellular telephone module. See Figure
. Remove 4 screws retaining cellular telephone module and bracket assembly to rear shelf carrier and remove module and mounting bracket.
- Release cellular telephone module mounting bracket retaining tabs and slide cellular telephone module out of the mounting bracket. To install, reverse removal procedure.
