Component Locations

COMPONENT LOCATIONS

Component

Location

Data Link Connector (DLC)

Under Left Side Of Instrument Panel, On Hood Release Bracket

Engine Compartment Fuse/Relay Center

Left Engine Compartment, Near Front Strut Tower

Forward/Back Motor

⁽¹⁾ Under Respective Front Seat, Mounted To Seat Adjuster Frame

Front & Rear Height Motors

⁽¹⁾ Under Respective Front Seat, Mounted To Seat Adjuster Frame

In/Out Lumbar Motor

⁽²⁾ In Respective Front Seat, Mounted To Seatback Frame

Left Underhood Fuse Block

Left Side Engine Compartment, Near Engine Compartment Fuse/Relay Center

Memory Mirror Module (MMM)

⁽³⁾ Above Brake Pedal

Memory Seat Module (MSM)

⁽¹⁾ Under Left Front Seat, Mounted To Seat Adjuster Frame

Recline Motor

⁽¹⁾ Under Respective Front Seat, Mounted To Seat Adjuster Frame

Rear Compartment Fuse Block

Front Of Trunk, Mounted To Electronics Bay

Up/Down Lumbar Motor

⁽²⁾ In Respective Front Seat, Mounted To Seatback Frame

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

⁽³⁾	See Fig 3 .

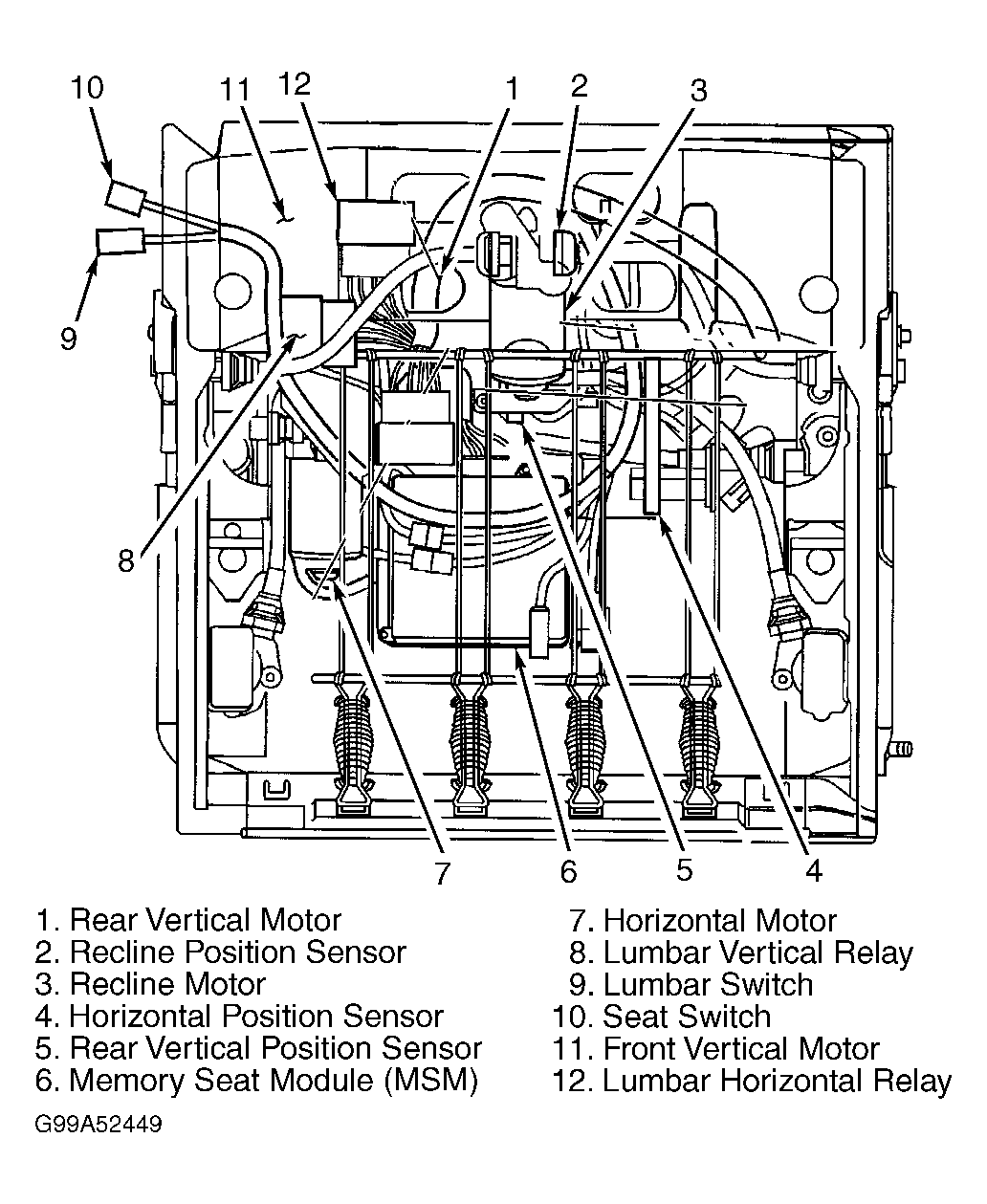

Fig 1: Identifying Power Seat Components

Courtesy of GENERAL MOTORS CORP.

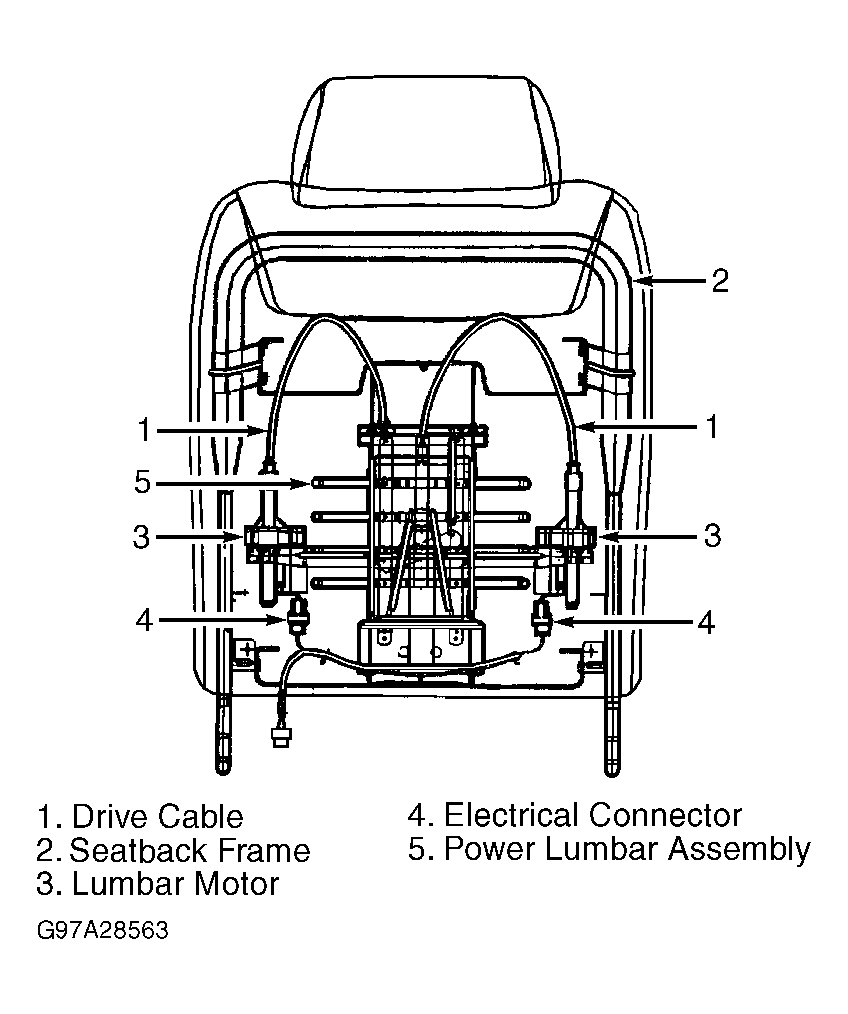

Fig 2: Identifying Power Lumbar Seat Components

Courtesy of GENERAL MOTORS CORP.

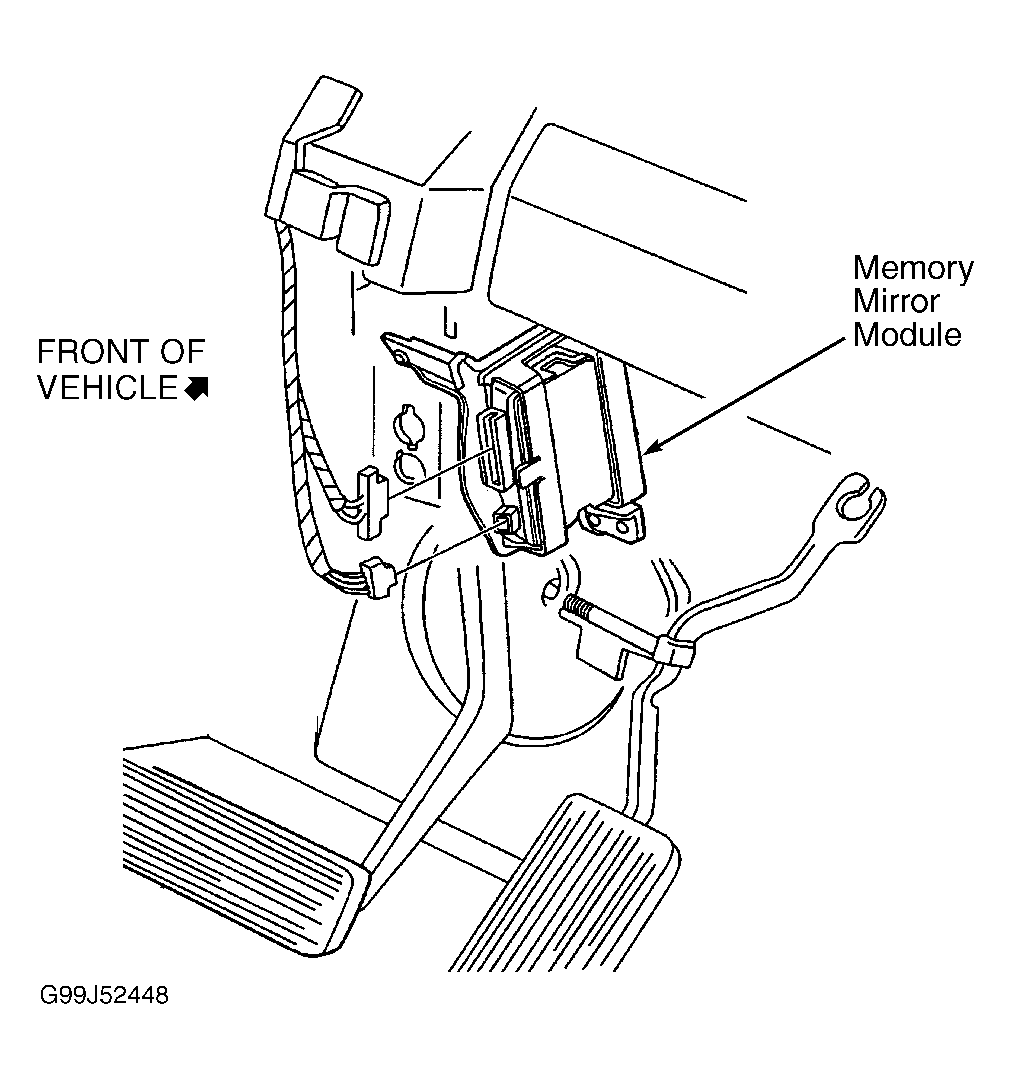

Fig 3: Locating Memory Mirror Module (MMM)

Courtesy of GENERAL MOTORS CORP.
