Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Install the cruise control cable (1) to the cruise control module.

Fig 1: Installing Cruise Control Cable & Module Connector
Courtesy of GENERAL MOTORS CORP.

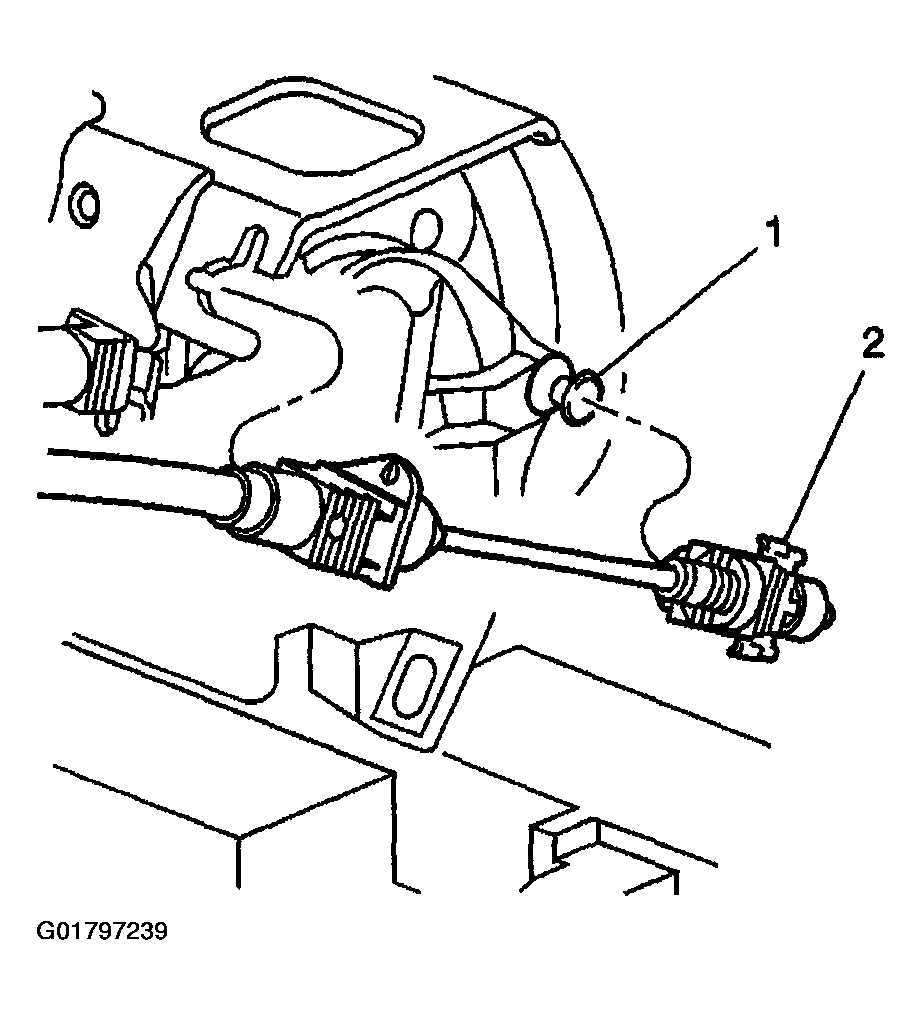

Install the cruise cable to the throttle lever (1) and to the throttle body bracket.

Fig 2: Installing Cruise Control Cable & Throttle Body Lever
Courtesy of GENERAL MOTORS CORP.

Important: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to Cruise Control Description and Operation for the complete operational details.

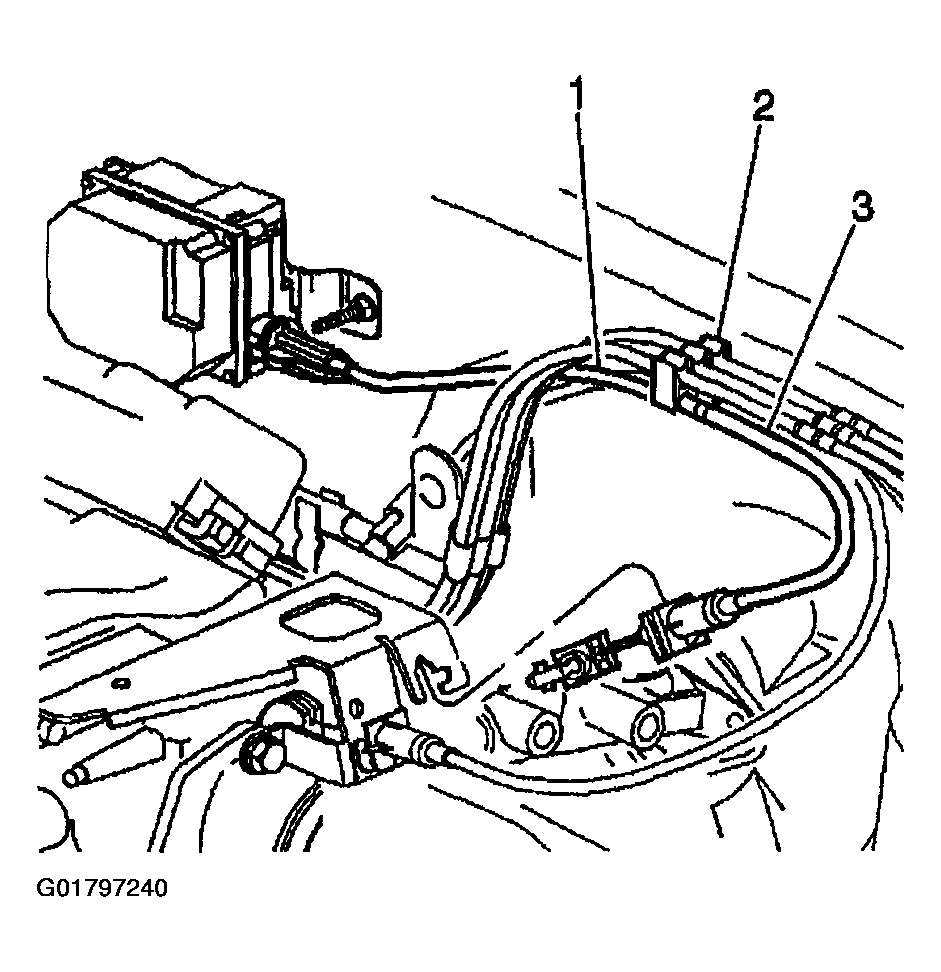

Install the cable (1) to the retainers (2).

Fig 3: Installing Cable & Retainers
Courtesy of GENERAL MOTORS CORP.
