Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

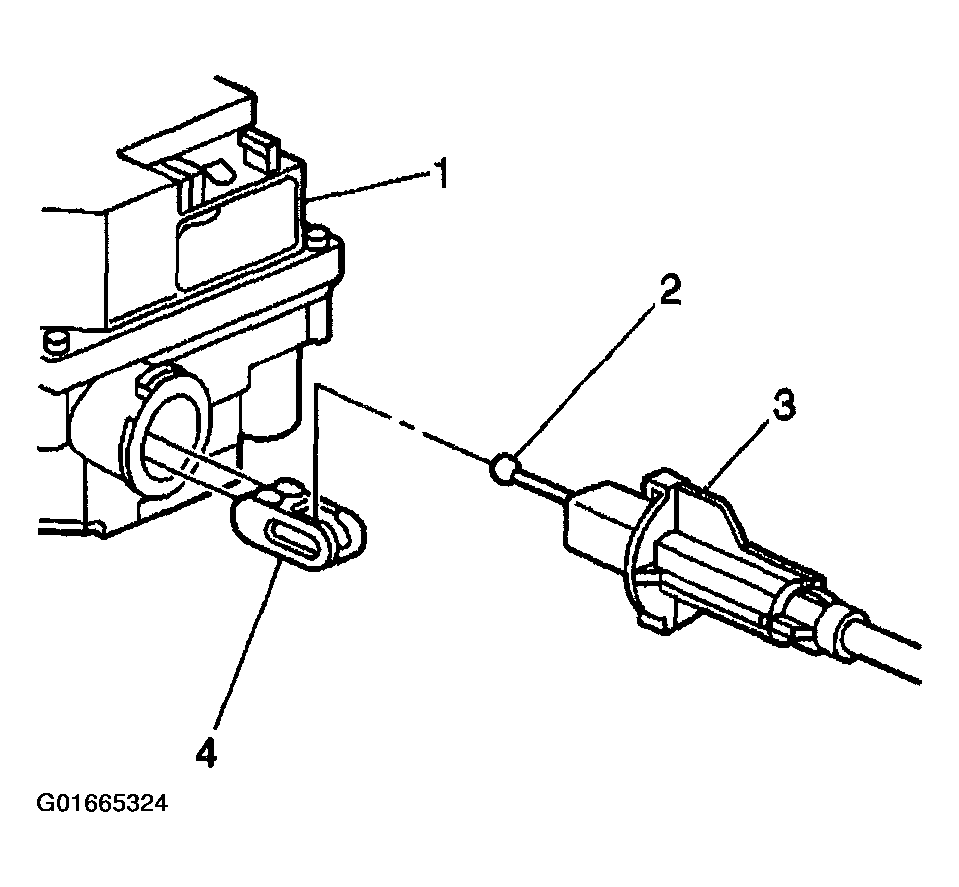

Fig 1: Cruise Control Cable & Module

Courtesy of GENERAL MOTORS CORP.

Important: The nylon cord from the module must be flat. The cord must not be twisted.

Connect the cruise control cable (2) to the cruise control module cord connector (4).
Seat the cable end (3) into the module (1).
Rotate the cable (3) clockwise until the cable is locked to the module housing assembly (1).
Connect the cruise control cable retainer (3) to the throttle body bracket.

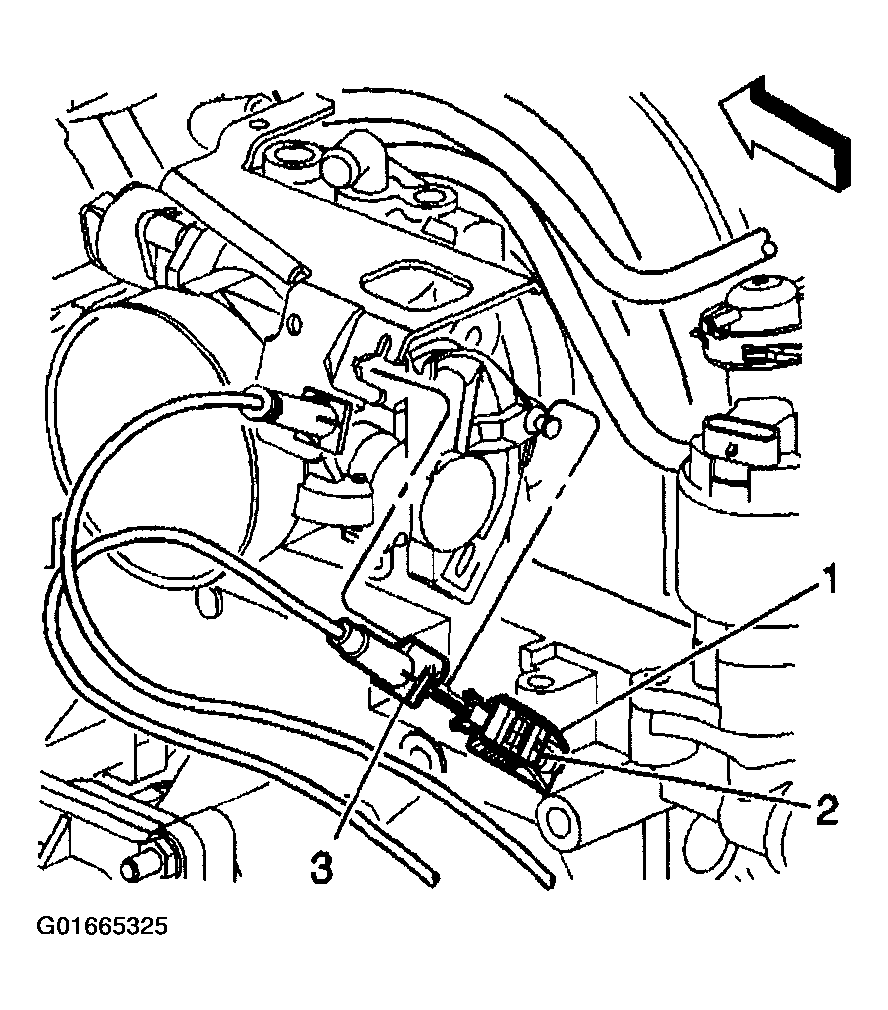

Fig 2: Cruise Control Cable Retainer
Courtesy of GENERAL MOTORS CORP.
Connect the cruise control cable retainer (1) to the throttle body cam stud.
Important: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to Cruise Control Description and Operation for the complete operational details.

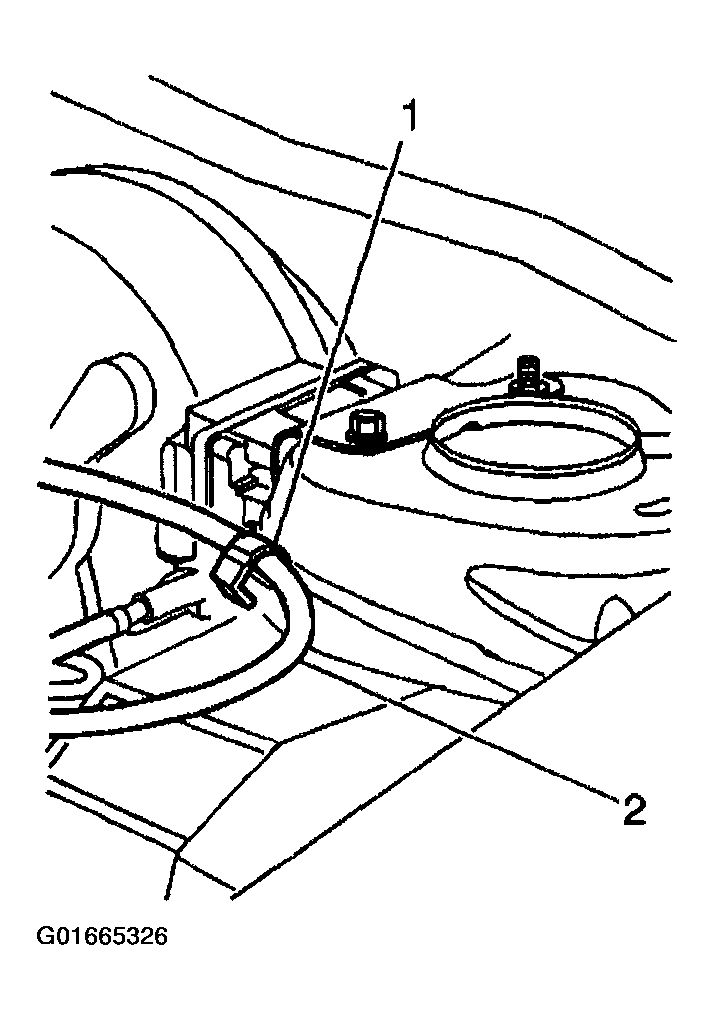

Fig 3: Cruise Control Cable & Retainer Clip
Courtesy of GENERAL MOTORS CORP.
Install the cruise control cable to the retainer clip (1) on the left strut tower.
Secure the retainer clip.
