Cooling System Component Views
WARNING:
This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

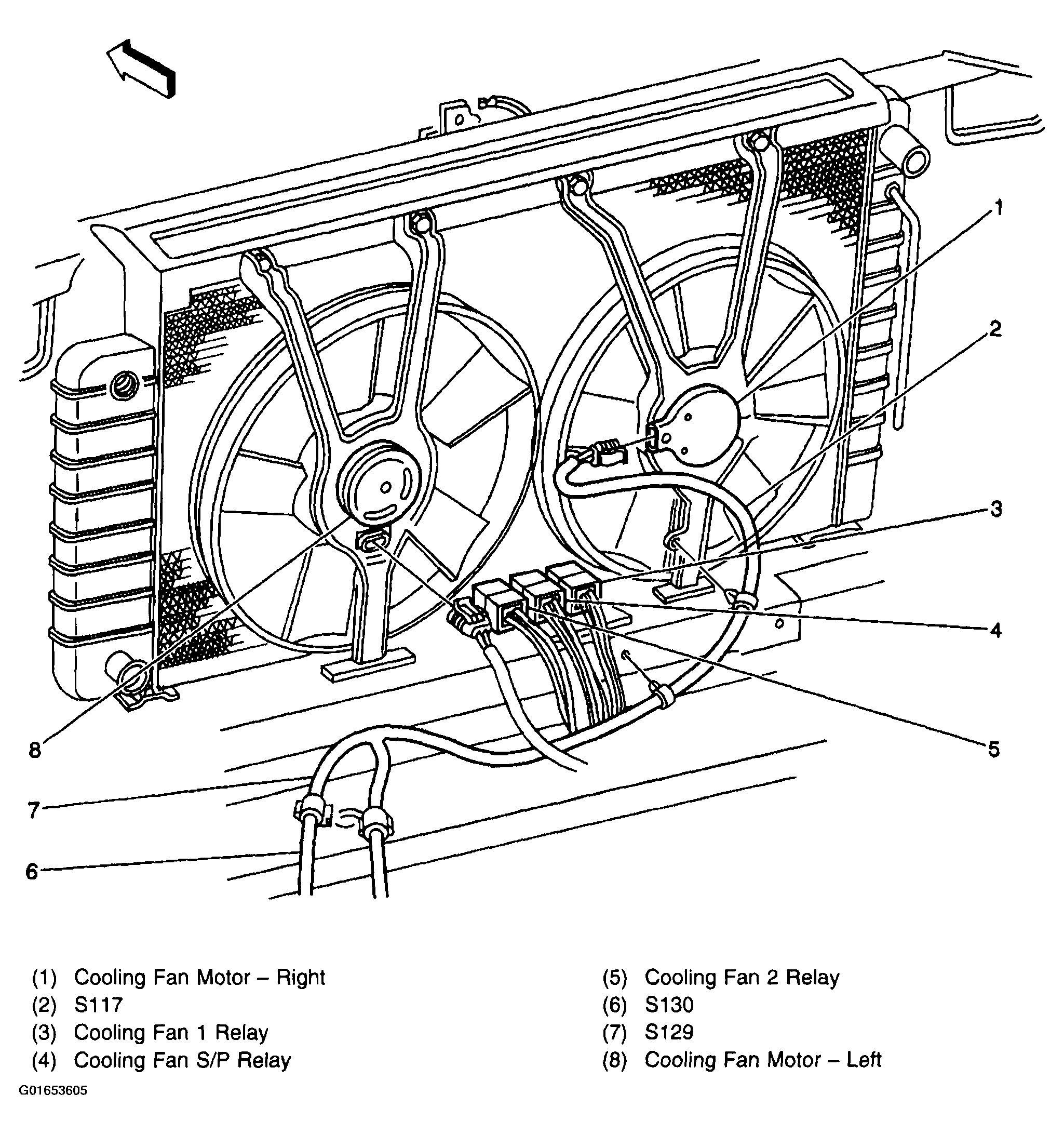

Fig 1: Engine Compartment, Front
Courtesy of GENERAL MOTORS CORP.

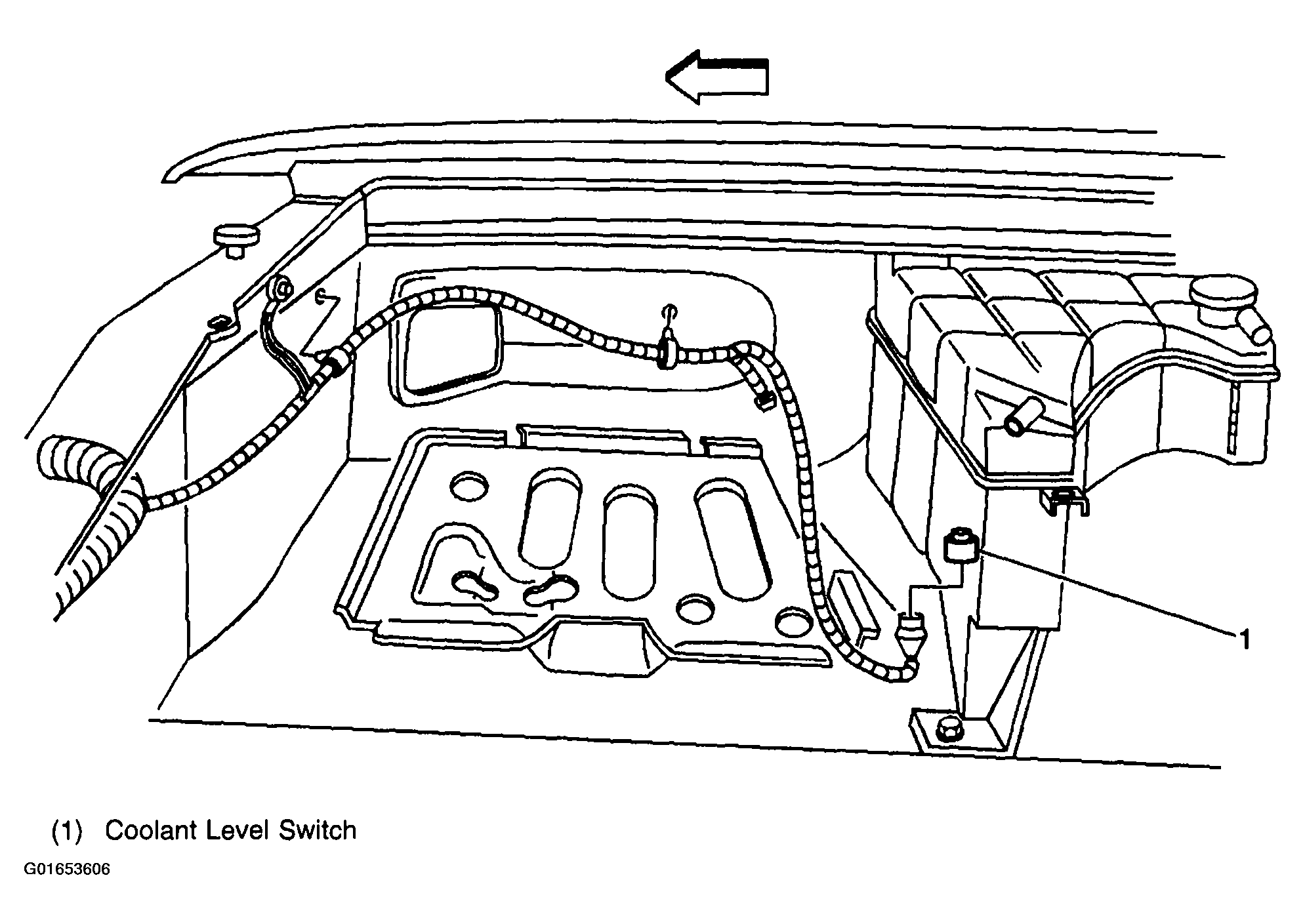

Fig 2: Coolant Level Switch
Courtesy of GENERAL MOTORS CORP.
