Spring Height Measurement

Measure distance from adapter face and bearing assembly to lower spring retainer. Spring height must equal 1.0" (25.4 mm). See Fig 3.

Fig 1: Inspecting Shift Tube

Courtesy of GENERAL MOTORS CORP.

Fig 2: Inspecting Steering Shaft

Courtesy of GENERAL MOTORS CORP.

Fig 3: Measuring Spring Height

Courtesy of GENERAL MOTORS CORP.

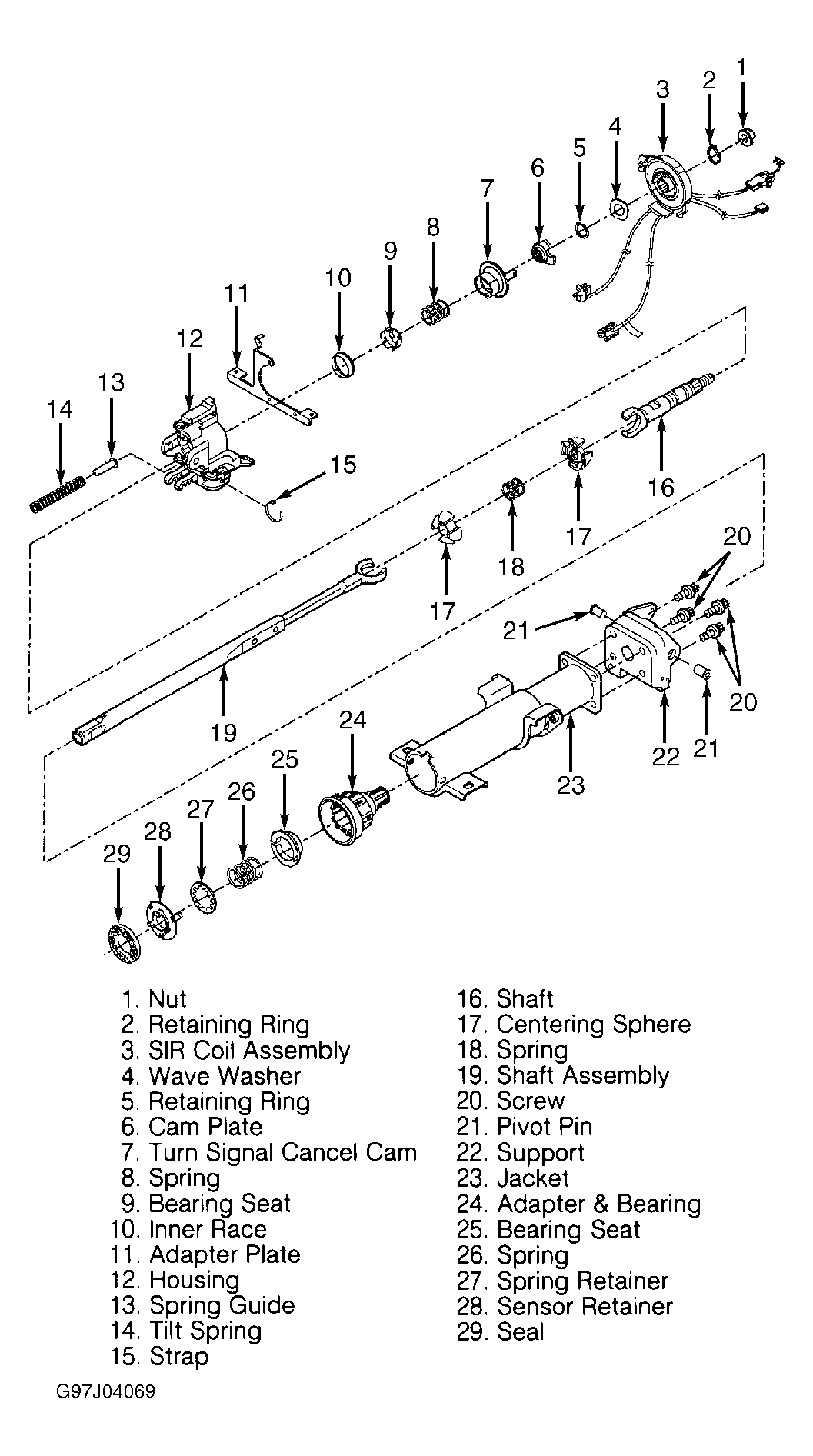

Fig 4: Exploded View Of Steering Column Assembly ("C" Body - Column Shift)

Courtesy of GENERAL MOTORS CORP.

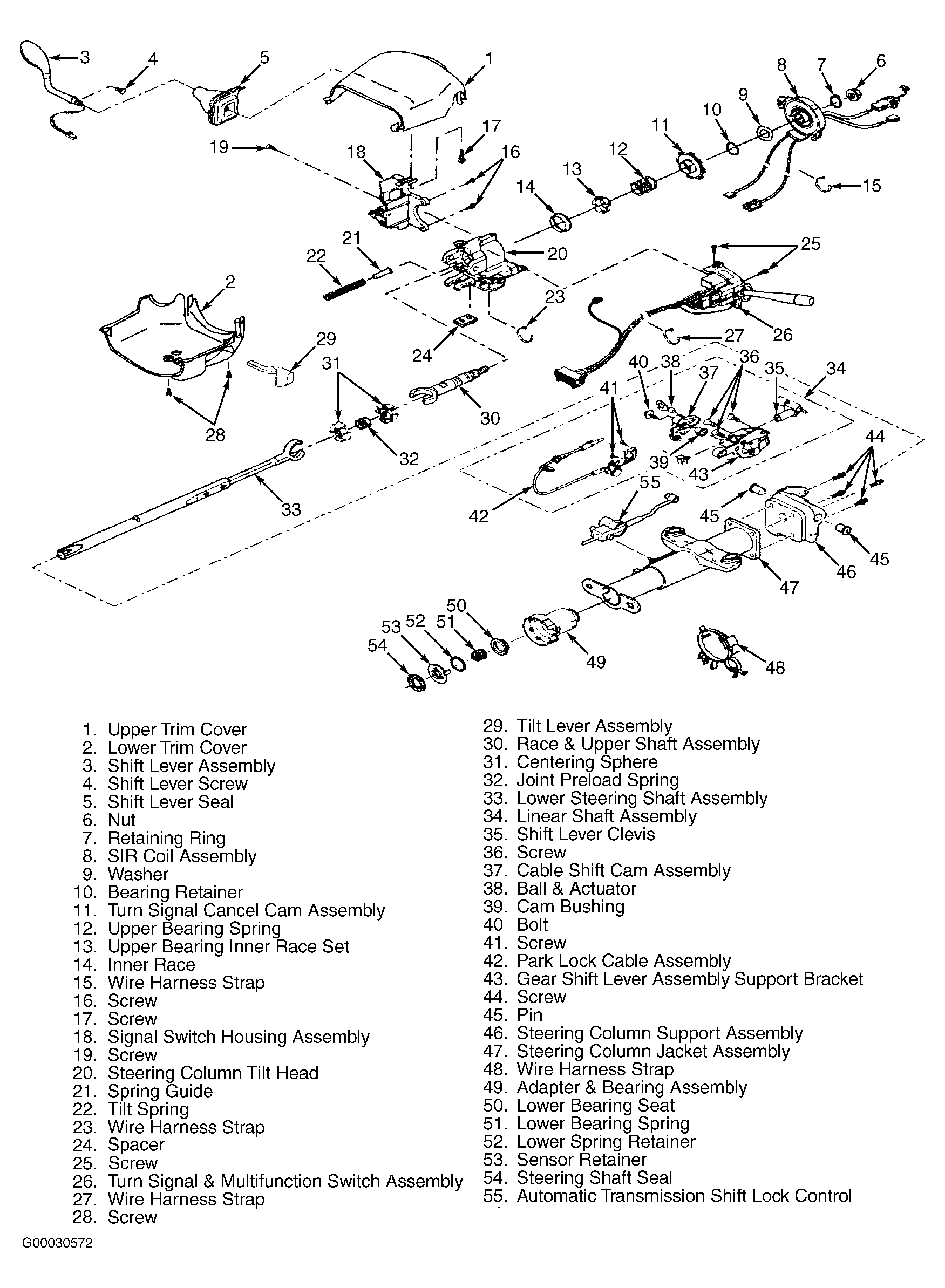

Fig 5: Exploded View Of Steering Column Assembly ("E" & "K" Bodies - Column Shift)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Exploded View Of Steering Column Assembly ("E" & "K" Bodies - Floor Shift)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Exploded View Of Steering Column Assembly ("F" Body)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Exploded View Of Steering Column Assembly ("H" Body - Floor Shift)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Exploded View Of Steering Column Assembly ("N" Body - Tilt)

Courtesy of GENERAL MOTORS CORP.

Fig 10: Exploded View Of Steering Column Assembly ("W" Body - Tilt)

Courtesy of GENERAL MOTORS CORP.

Fig 11: Exploded View Of Steering Column Assembly ("Y" Body)

Courtesy of GENERAL MOTORS CORP.
