Band Control Solenoid: Installation

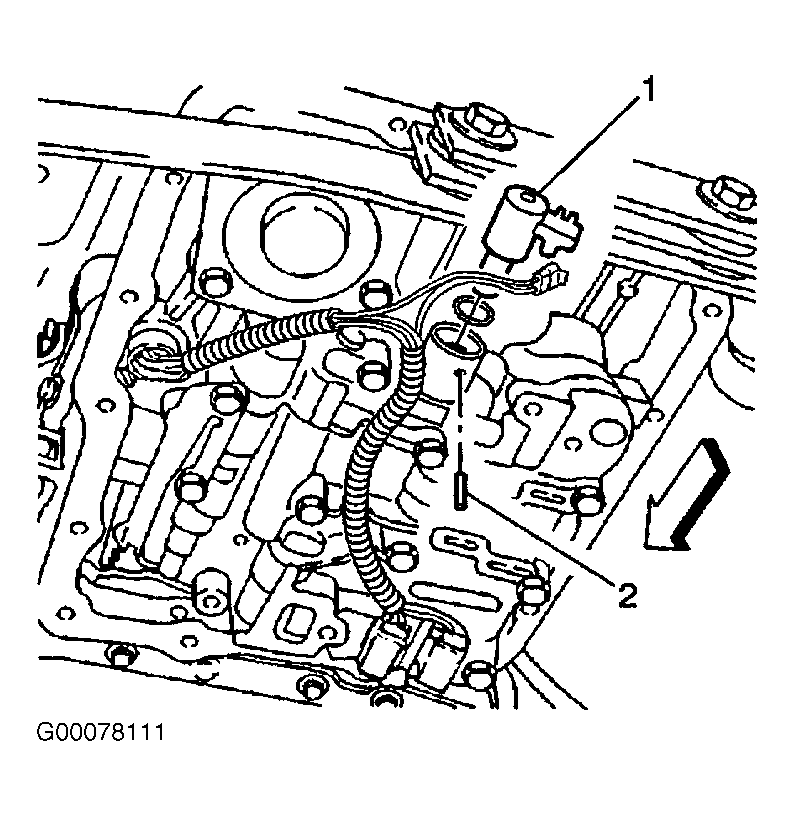

  1. Install the solenoid valve (1) and the wave washer. See Figure .
  2. Install the retaining pin (2). Use a soft mallet to drive the pin in.
  3. Connect the electrical harness connector to the solenoid valve.
  4. Install the transmission oil filter and the transmission oil pan. See DRAINING & REFILLING  under LUBRICATION.
