Connector Identification

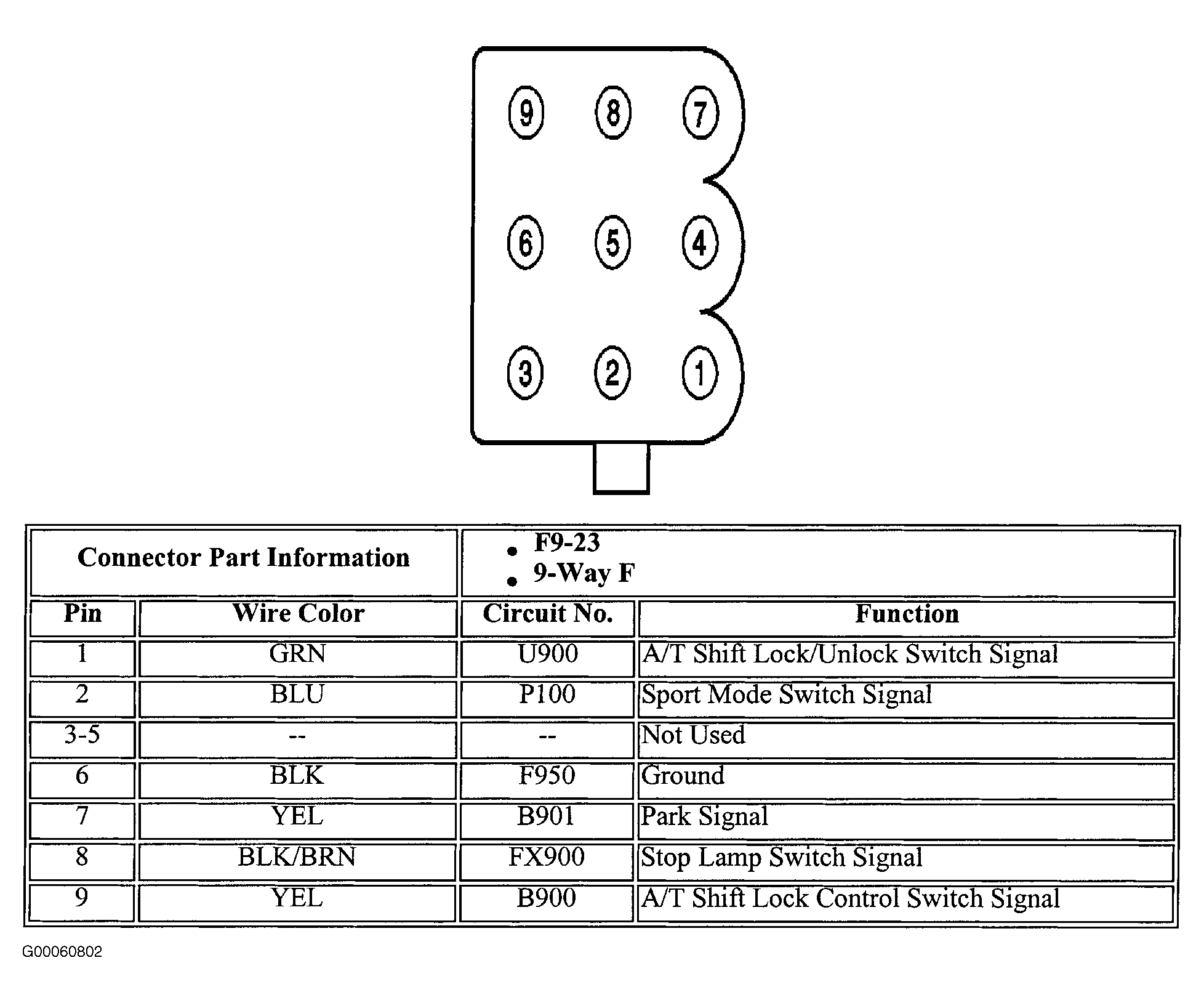

Fig 1: Identifying A/T Shift Lever Connector Terminals
G00060802Courtesy of GENERAL MOTORS CORP.

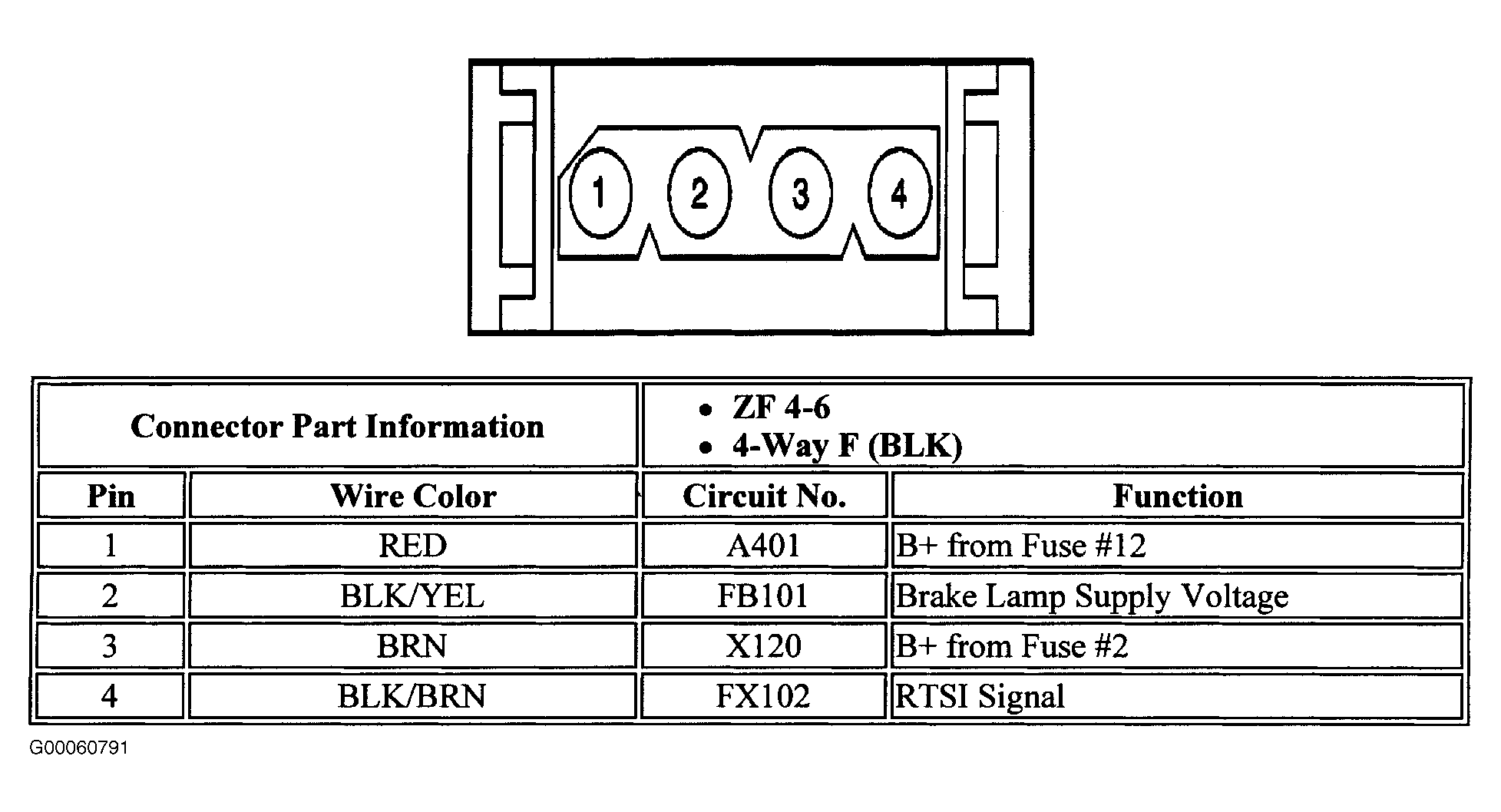

Fig 2: Identifying Stoplamp Switch Connector Terminals
G00060791Courtesy of GENERAL MOTORS CORP.
