Thread Repair Specifications

Thread Repair Specifications

Left Cylinder Head Cam CVR

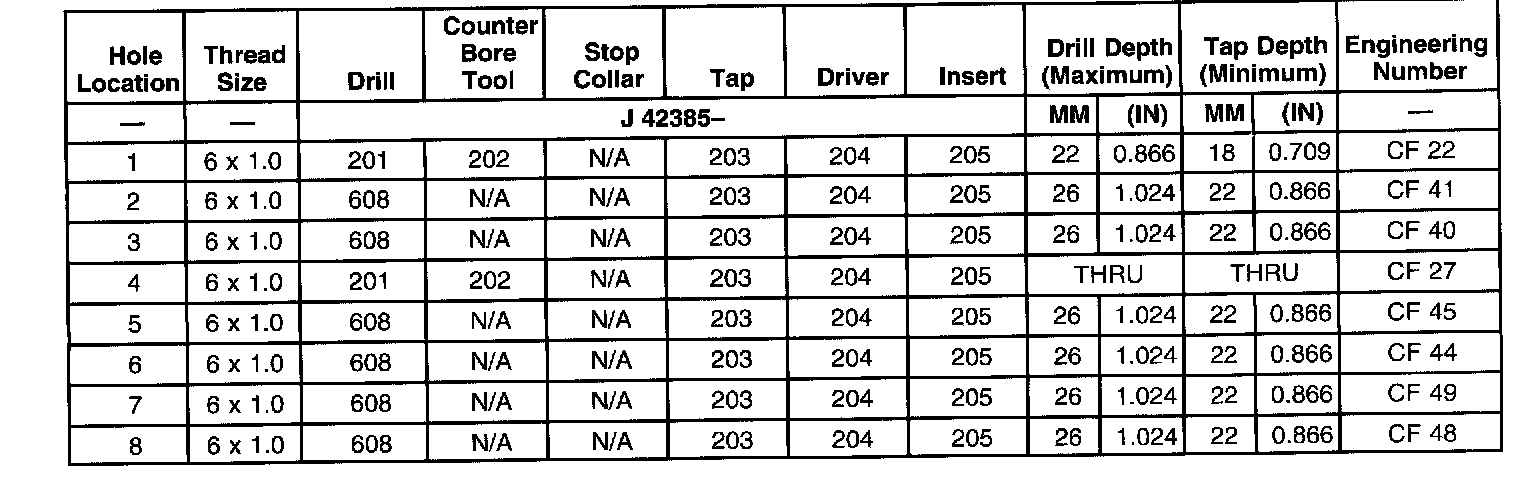

Part 1 of 3

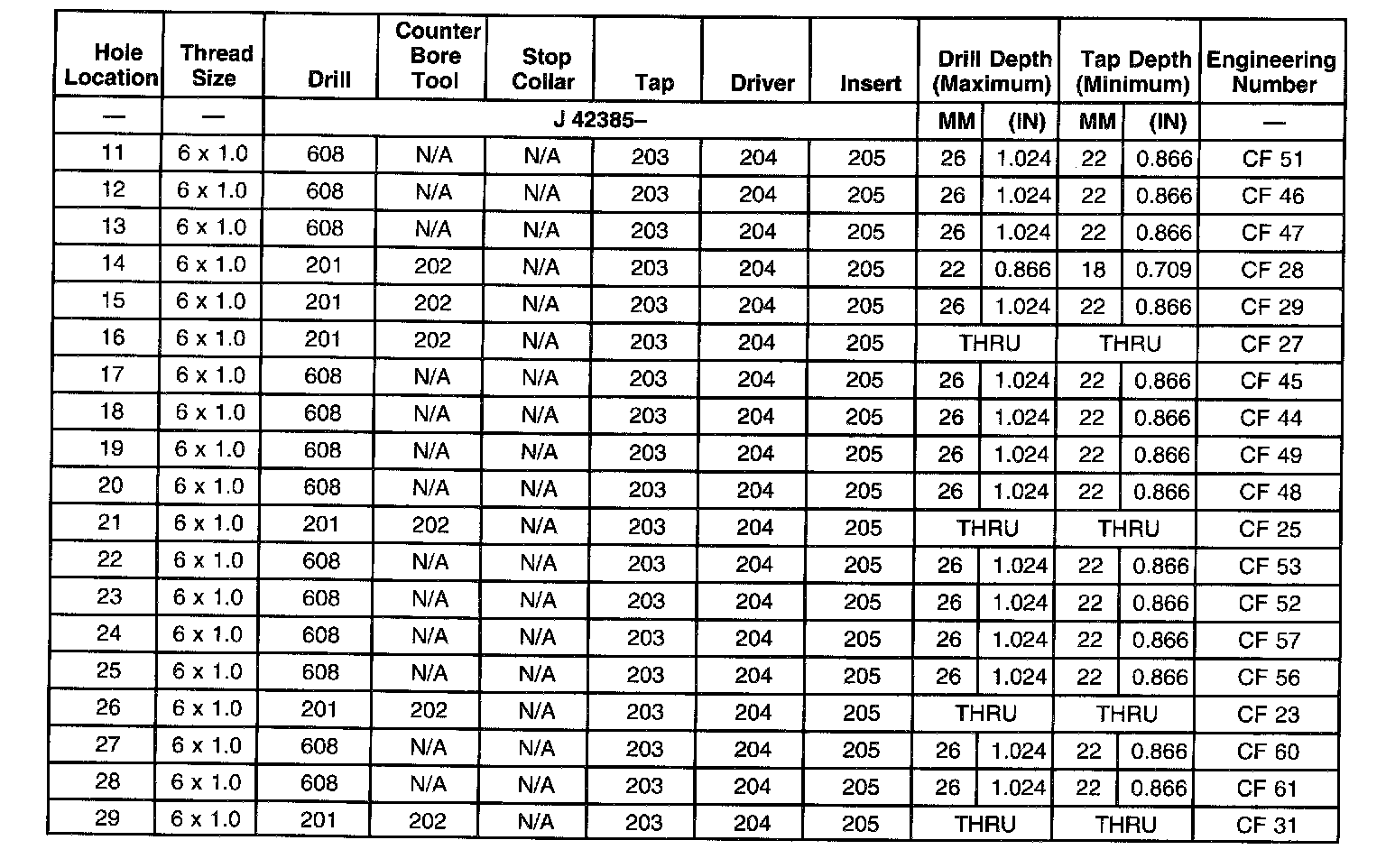

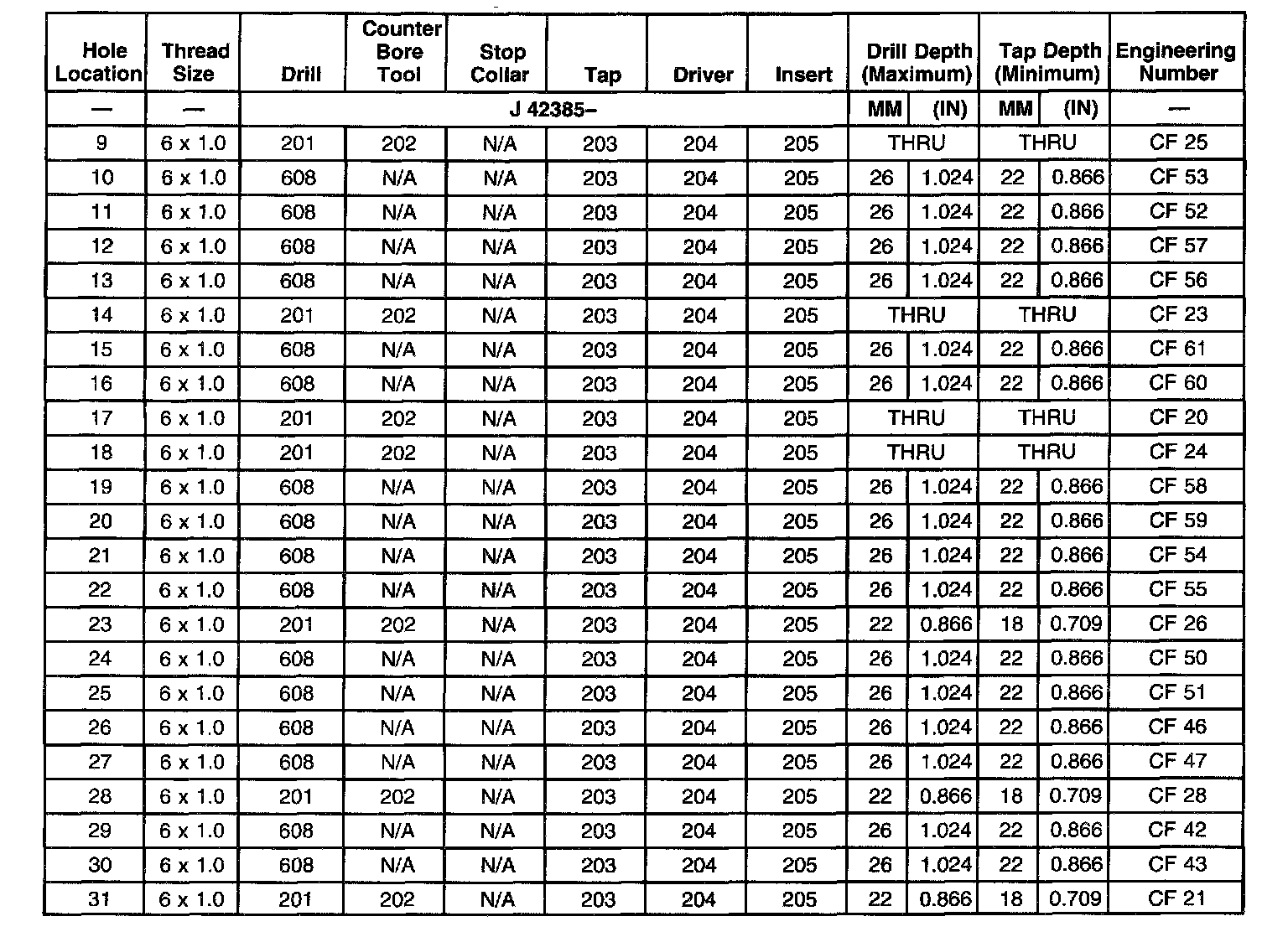

Part 2 of 3

Part 3 of 3

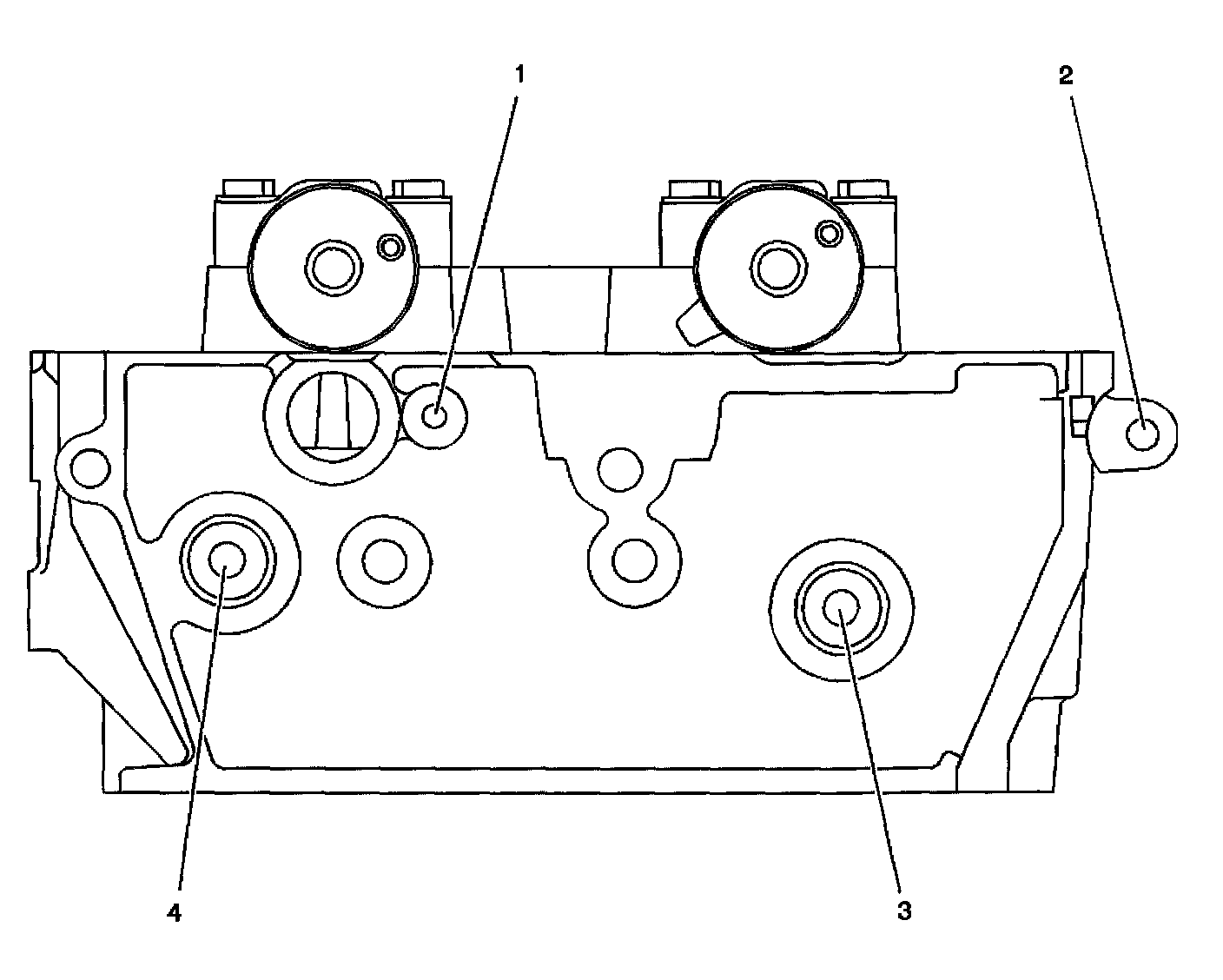

Left Cylinder Head Front Face

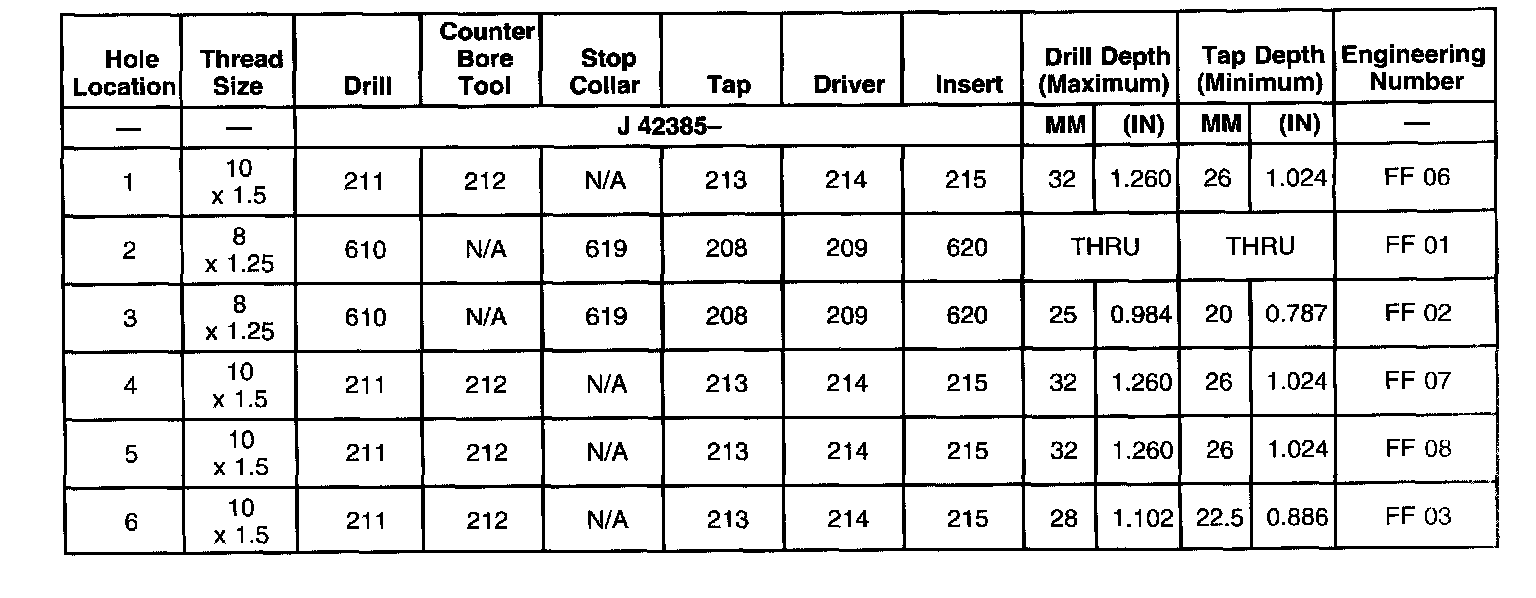

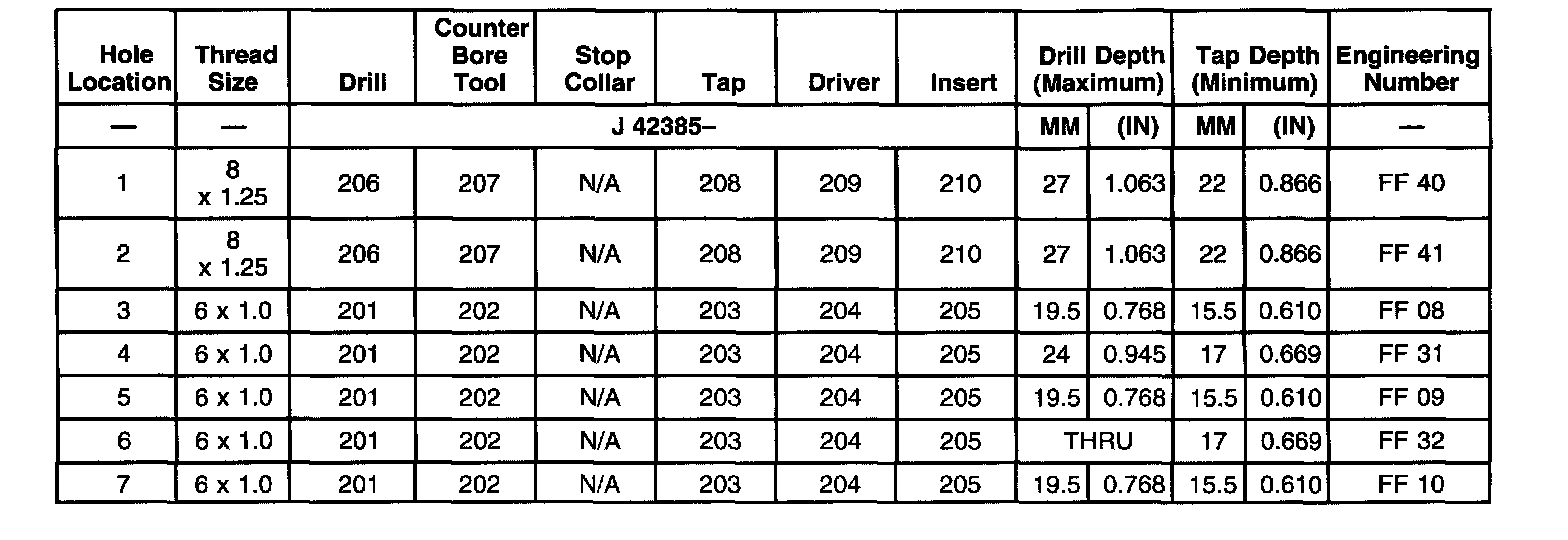

Part 1 of 2

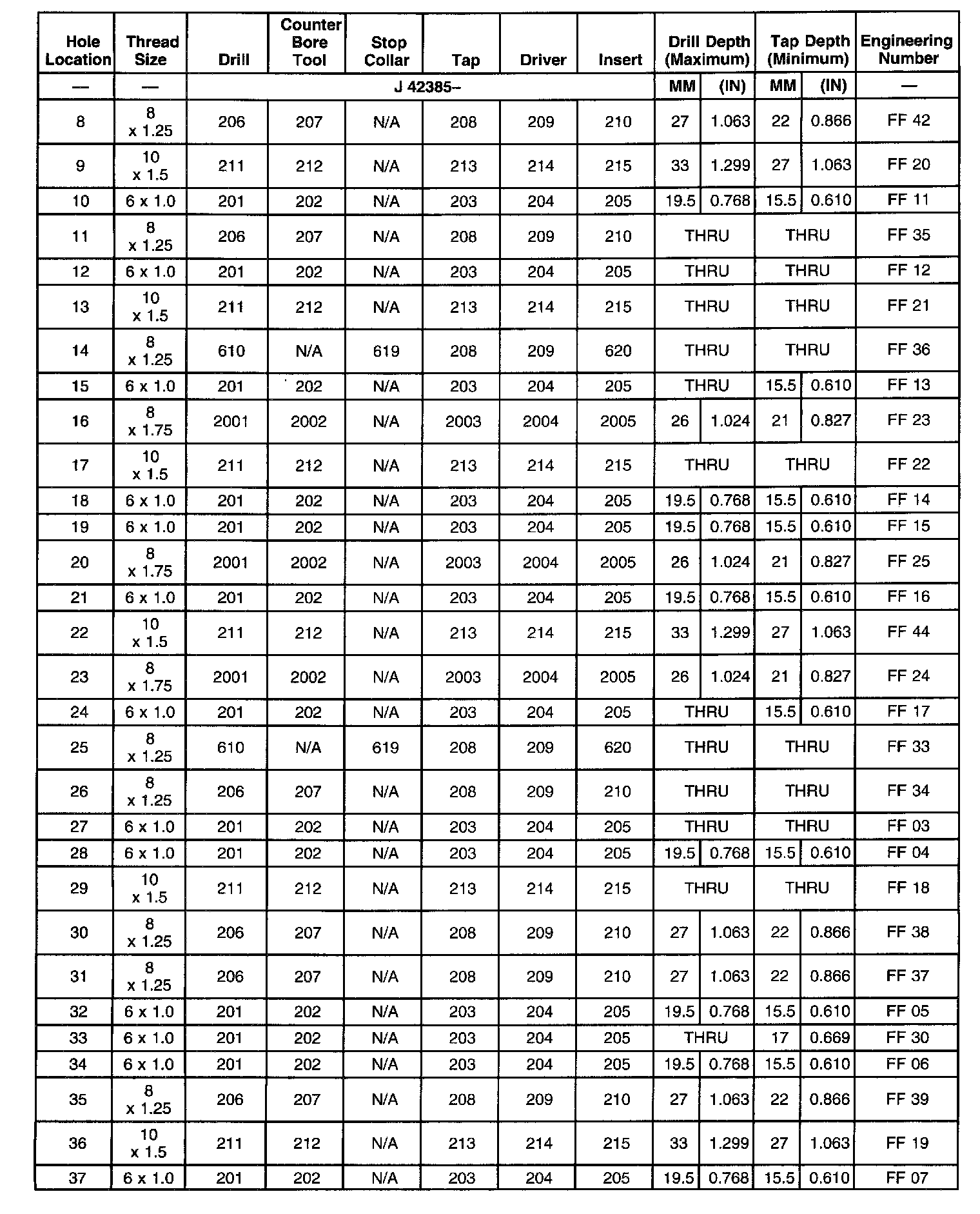

Part 2 of 2

Left Cylinder Head Intake Face

Part 1 of 2

Part 2 of 2

Left Cylinder Head Exhaust Face

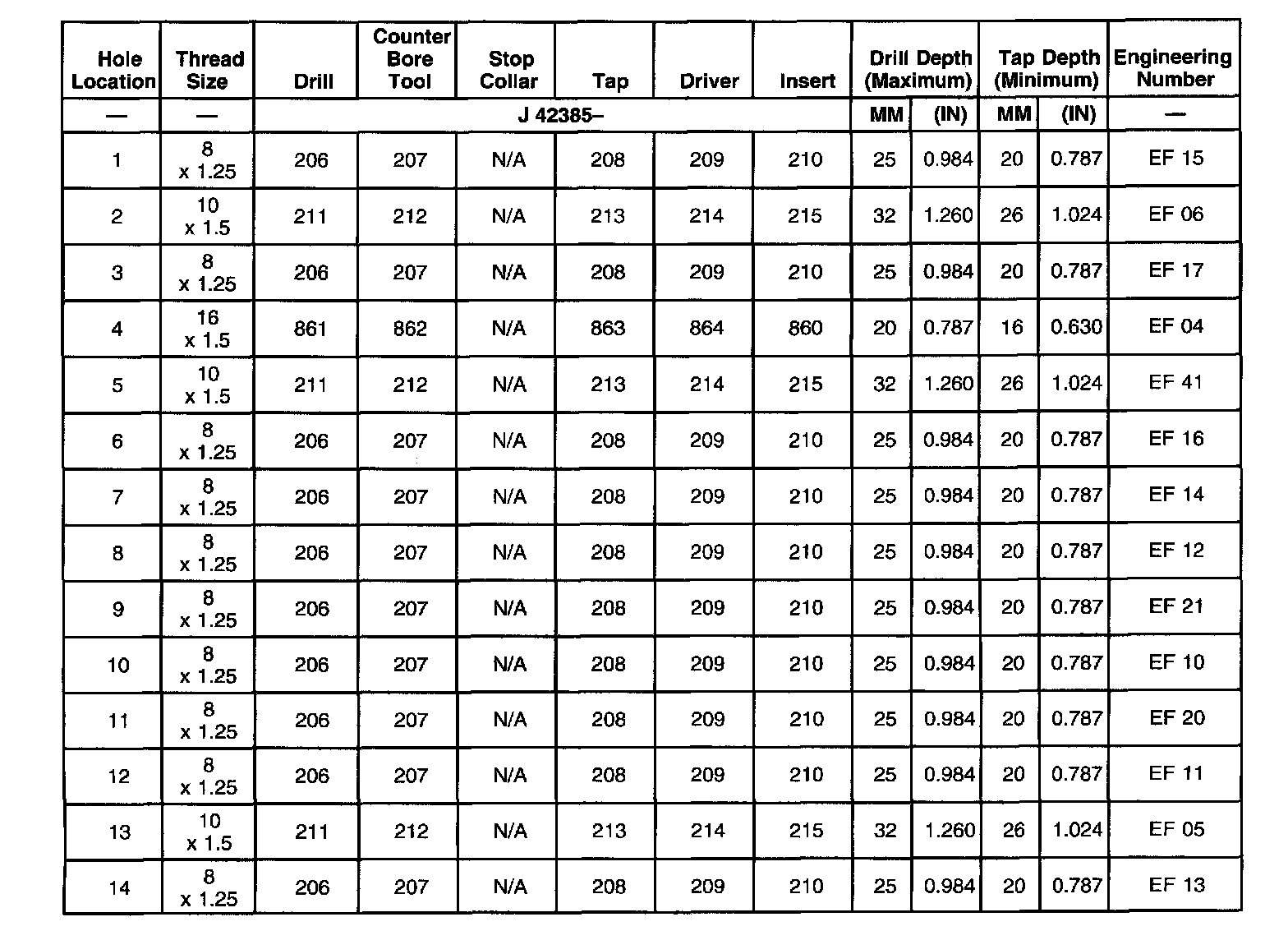

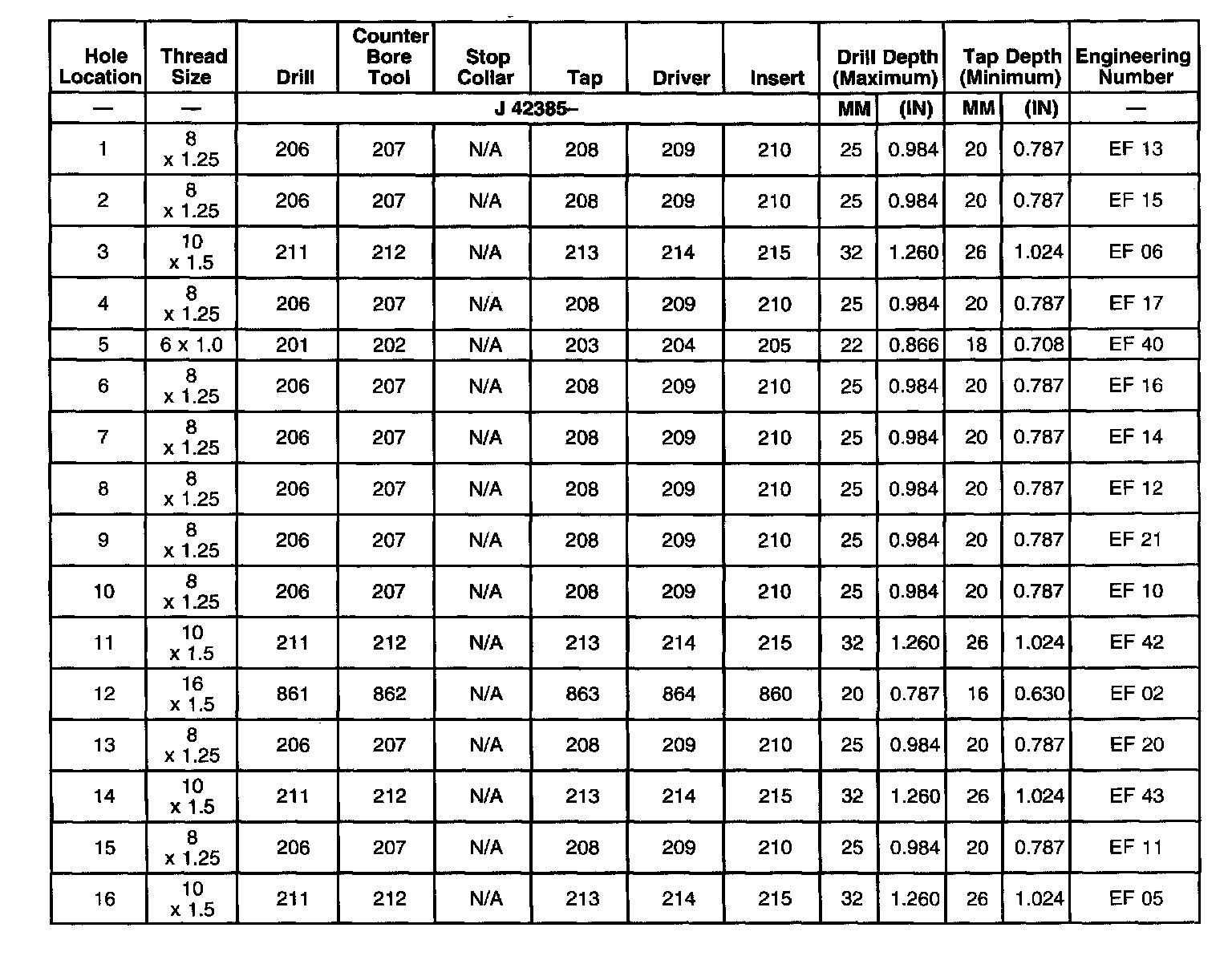

Part 1 of 2

Part 2 of 2

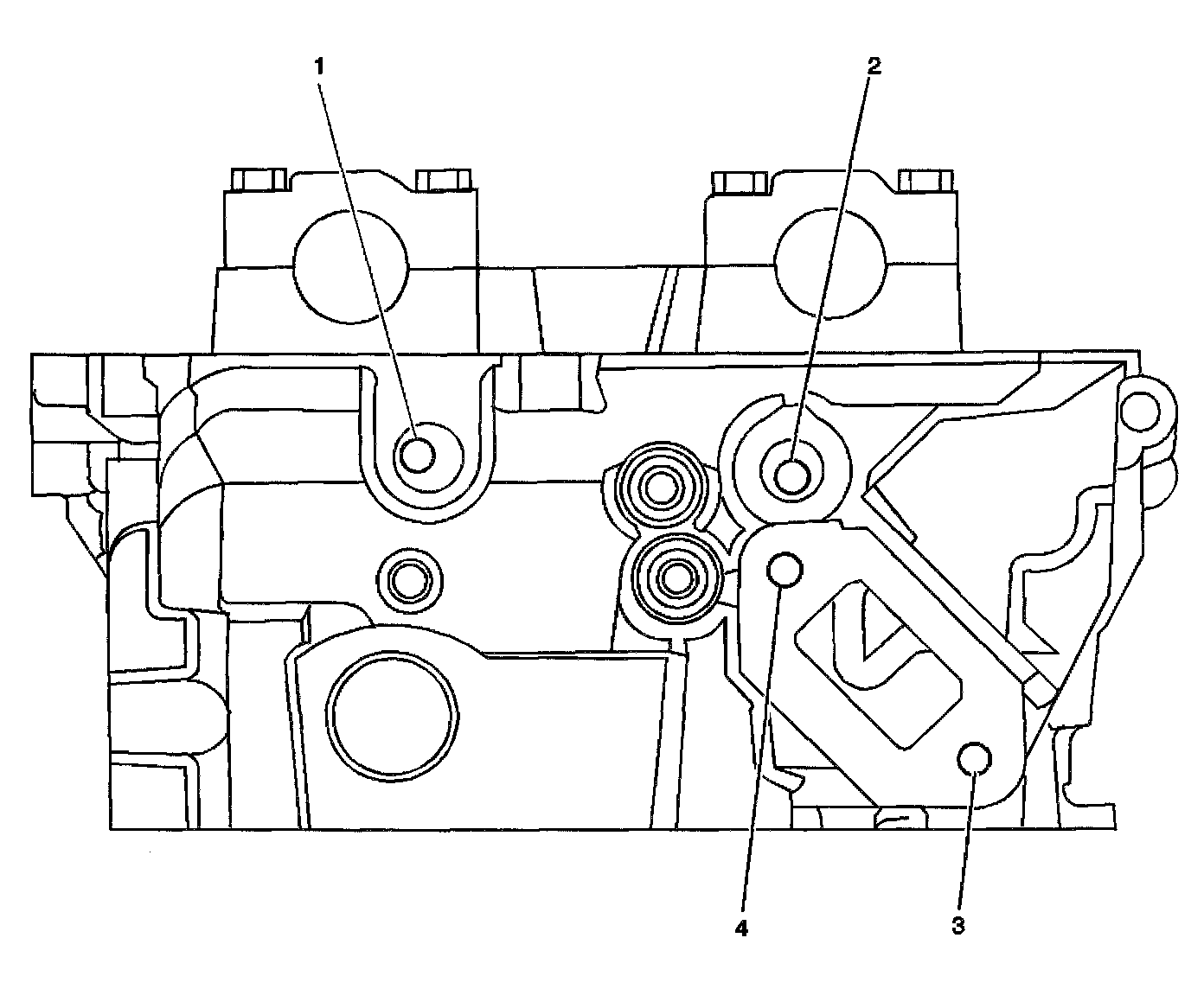

Left Cylinder Head Rear Face

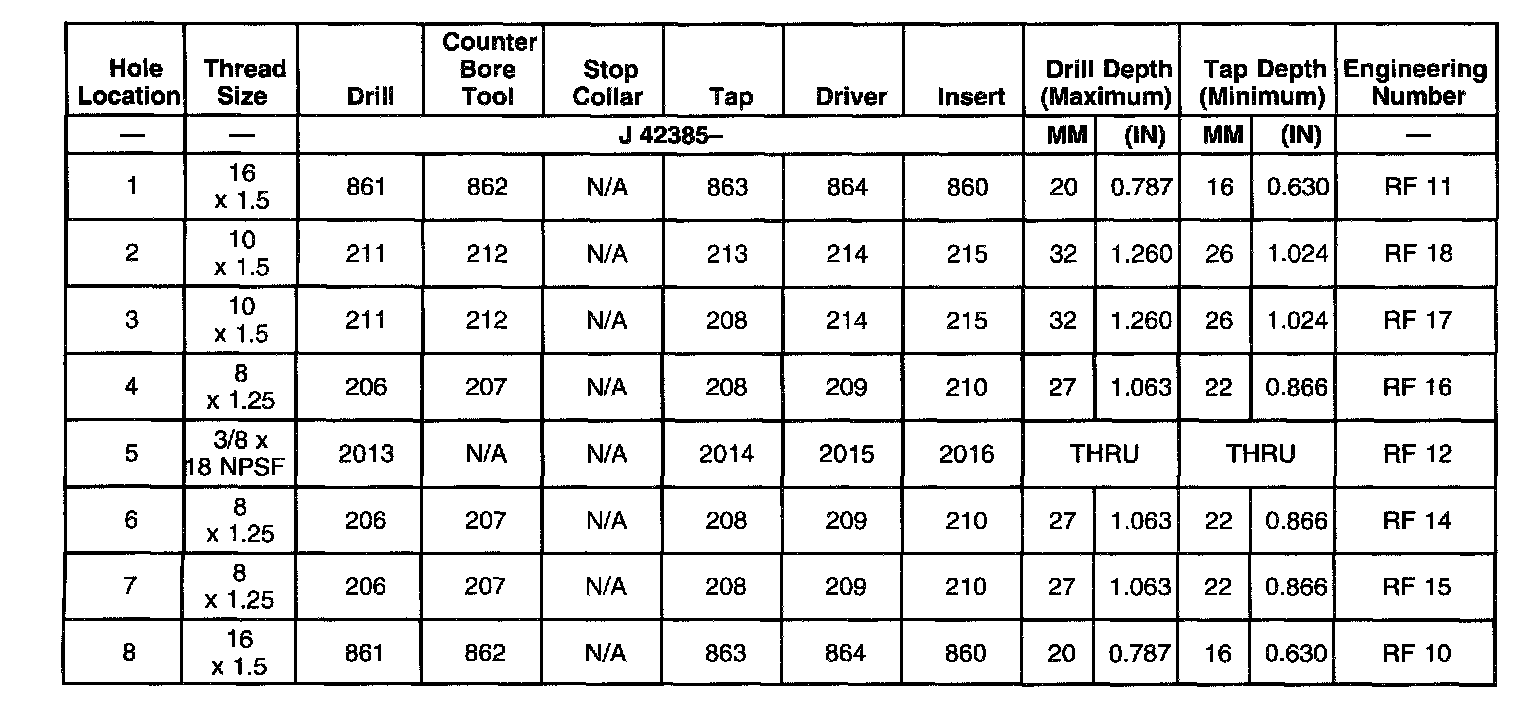

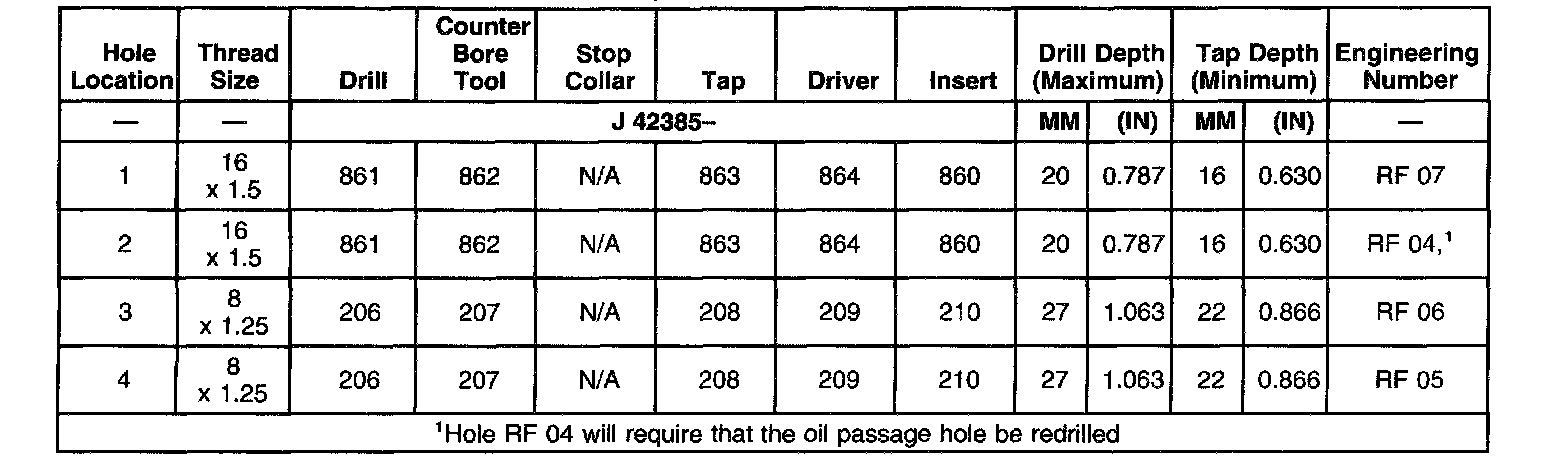

Part 1 of 2

Part 2 of 2

Right Cylinder Head Cam CVR

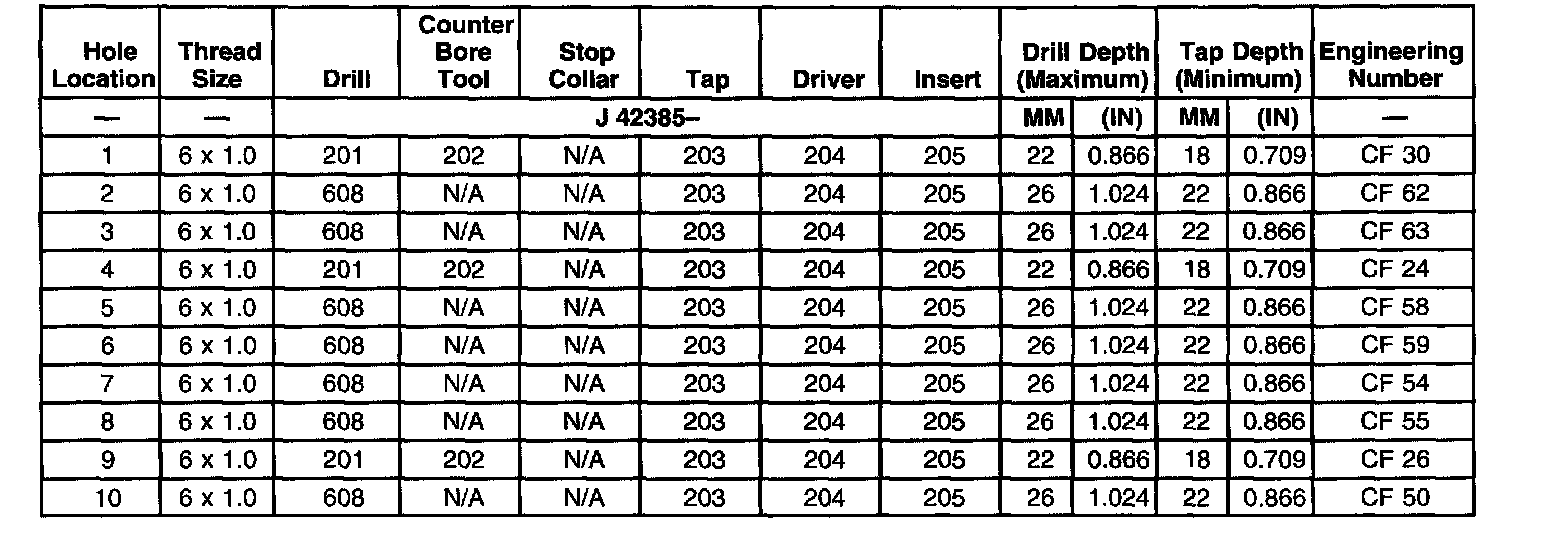

Part 1 of 3

Part 2 of 3

Part 3 of 3

Right Cylinder Head Front Face

Part 1 of 2

Part 2 of 2

Right Cylinder Head Intake Face

Part 1 of 2

Part 2 of 2

Right Cylinder Head Exhaust Face

Part 1 of 2

Part 2 of 2

Right Cylinder Head Rear Face

Part 1 of 2

Part 2 of 2

Engine Block Front

Part 1 of 3

Part 2 of 3

Part 3 of 3

Engine Block Rear

Part 1 of 3

Part 2 of 3

Part 3 of 3

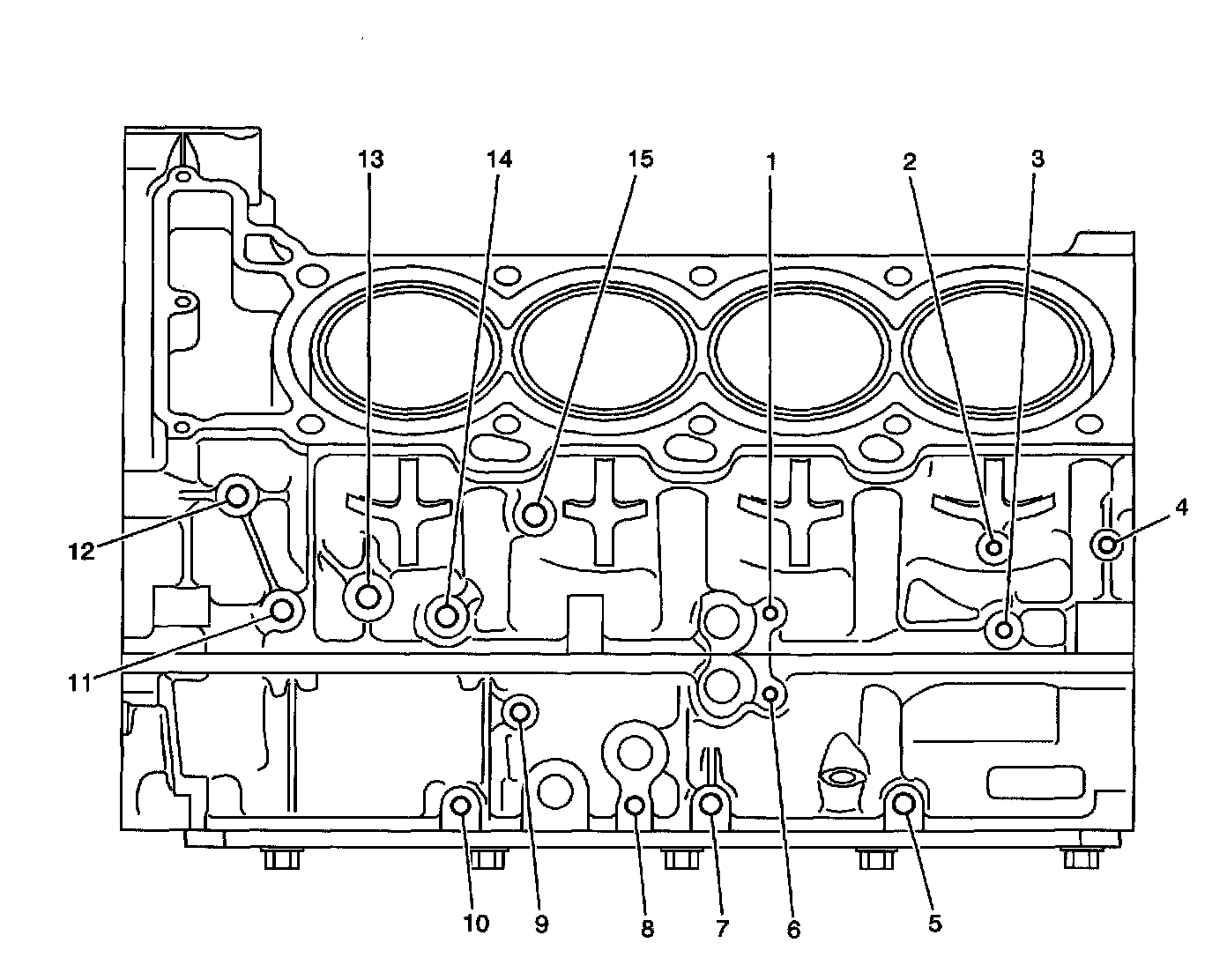

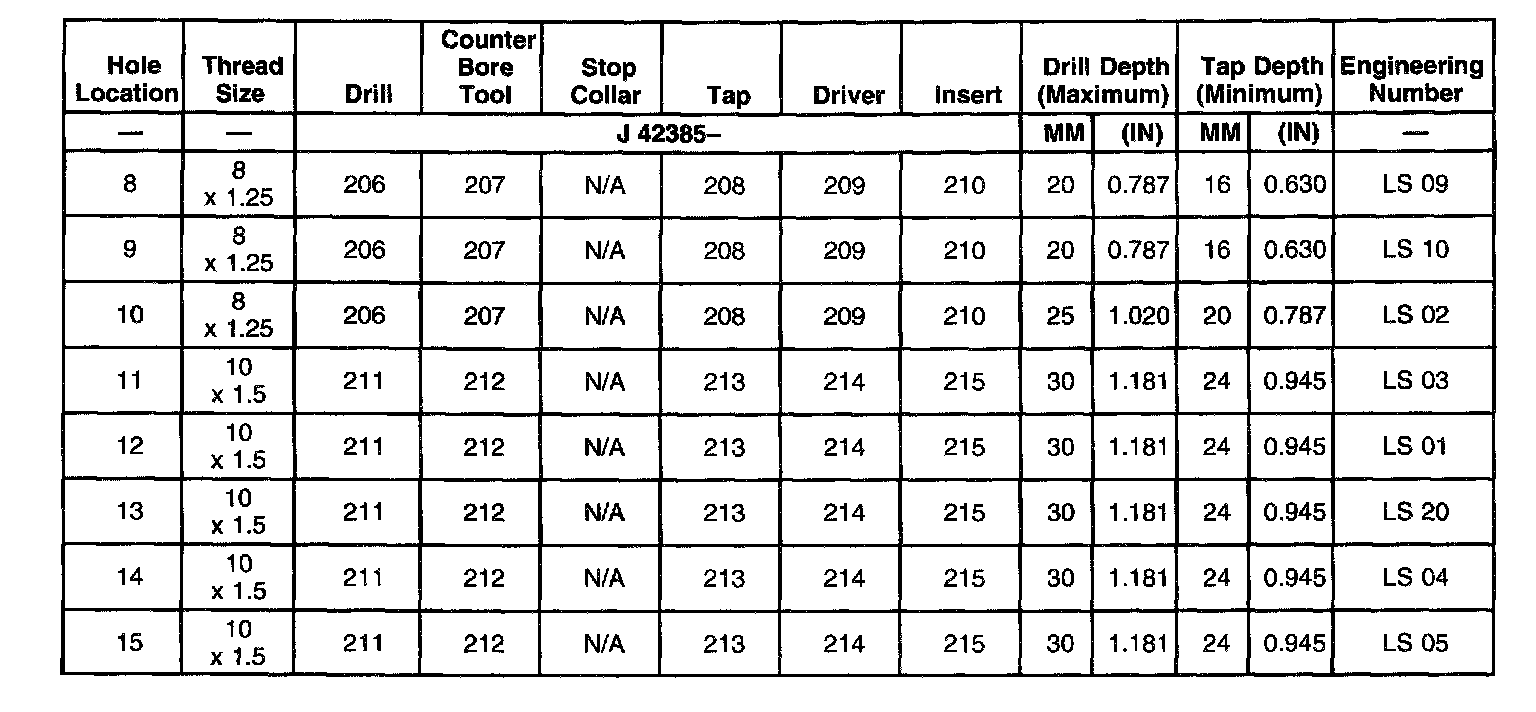

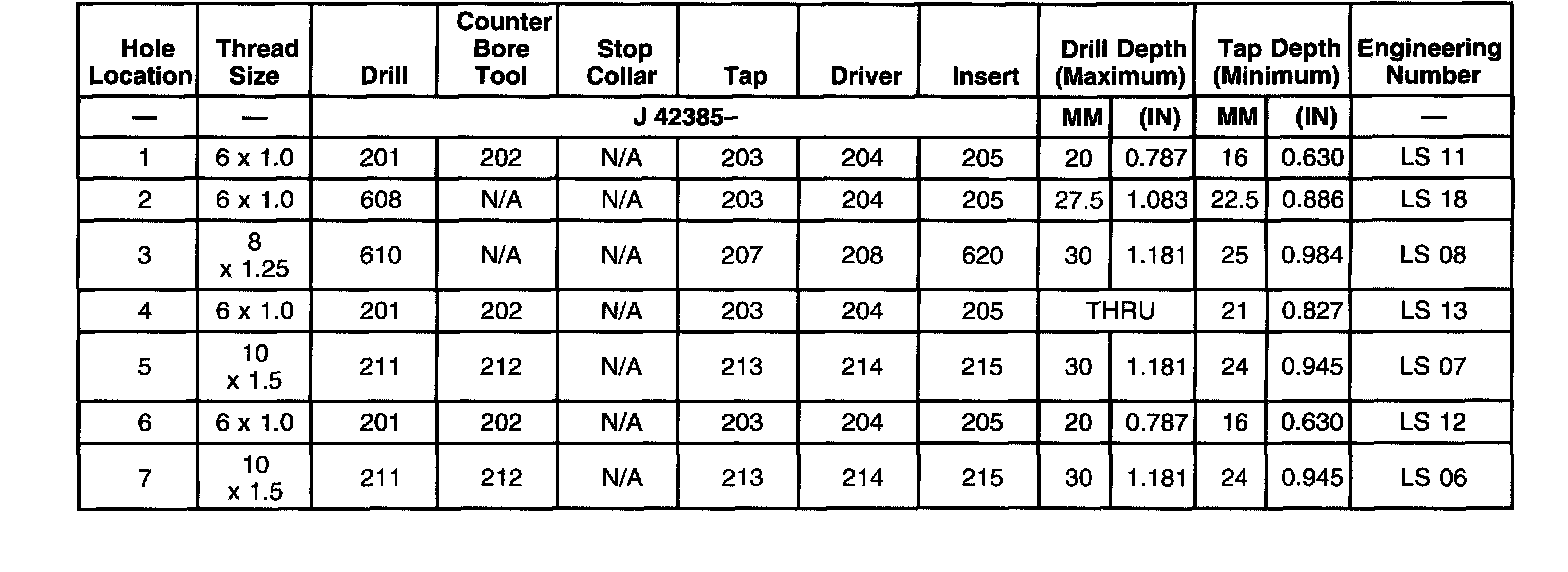

Engine Block Left Side

Part 1 of 3

Part 2 of 3

part 3 of 3

Engine Block Right Side

Part 1 of 2

Part 2 of 2

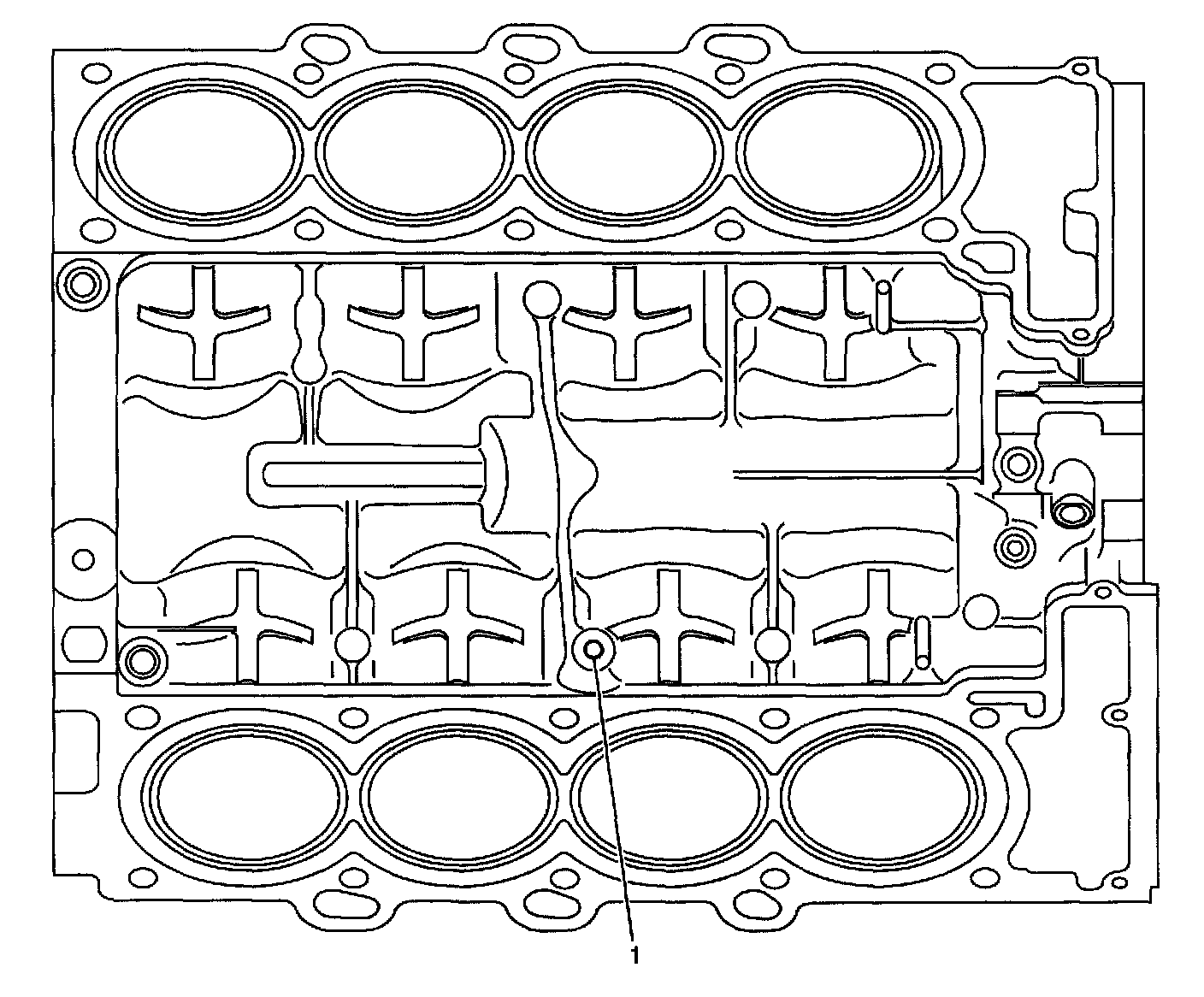

Engine Block Top Face

Part 1 of 2

Part 2 of 2

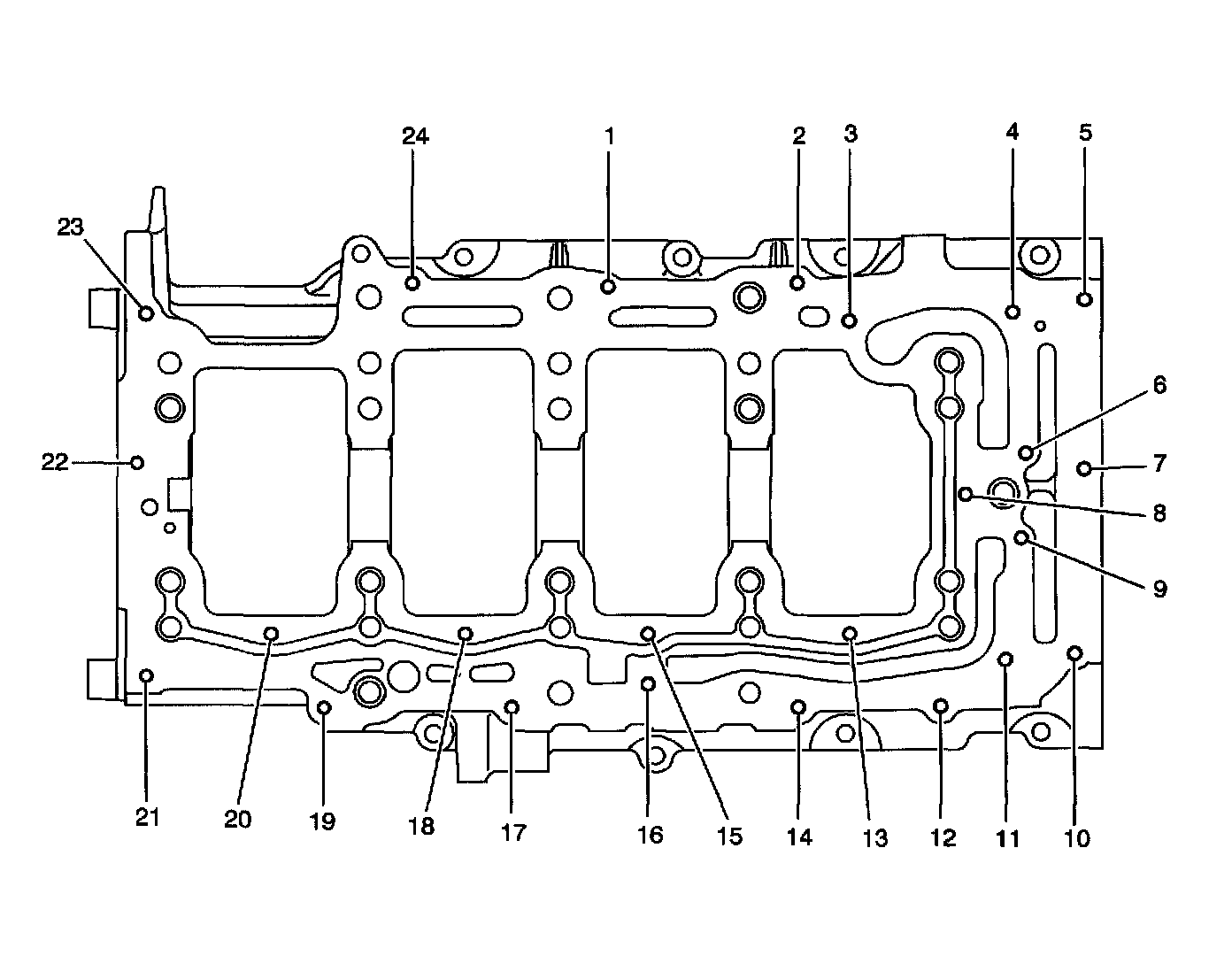

Engine Block Lower

Part 1 of 3

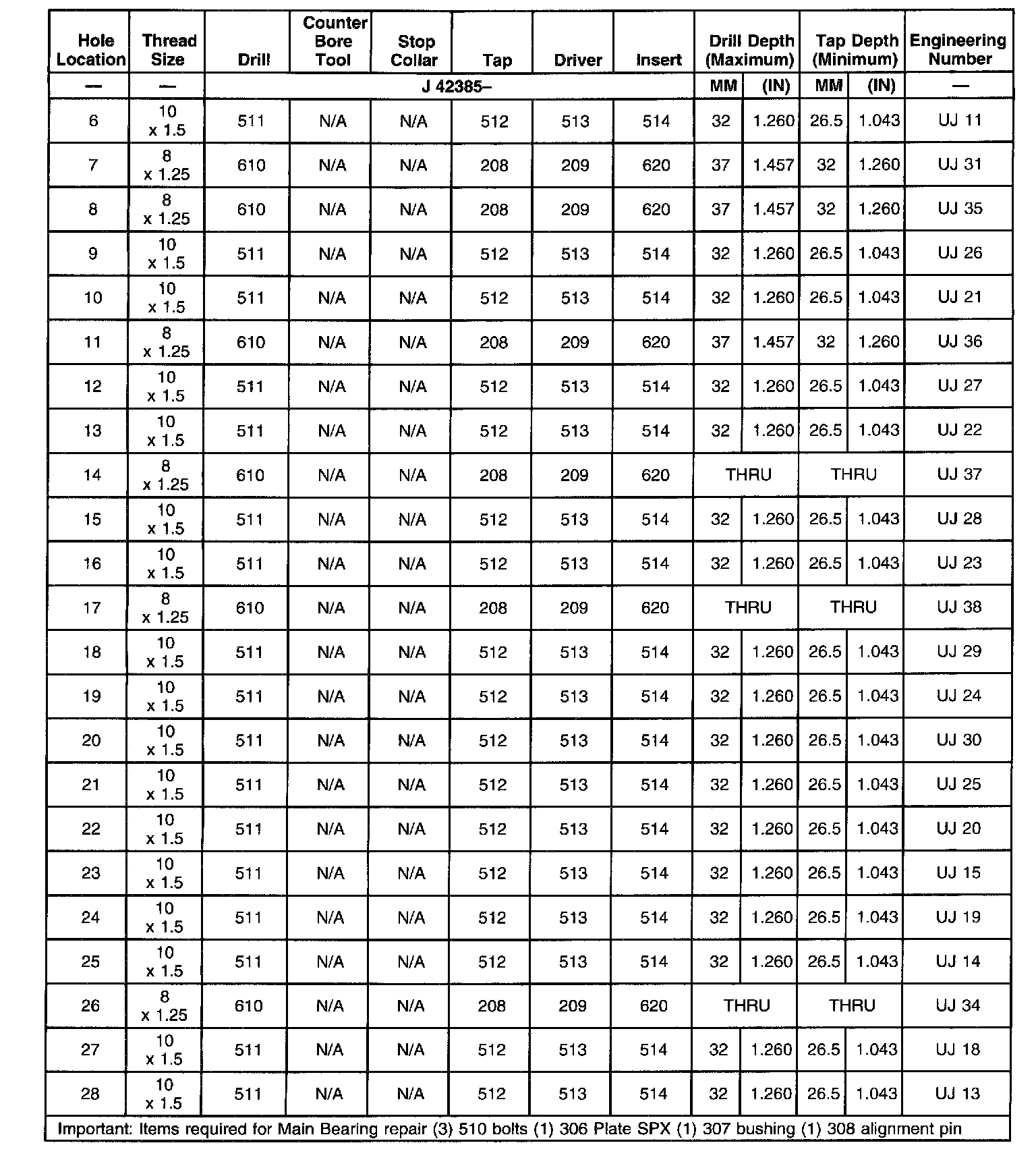

part 2 of 3

part 3 of 3

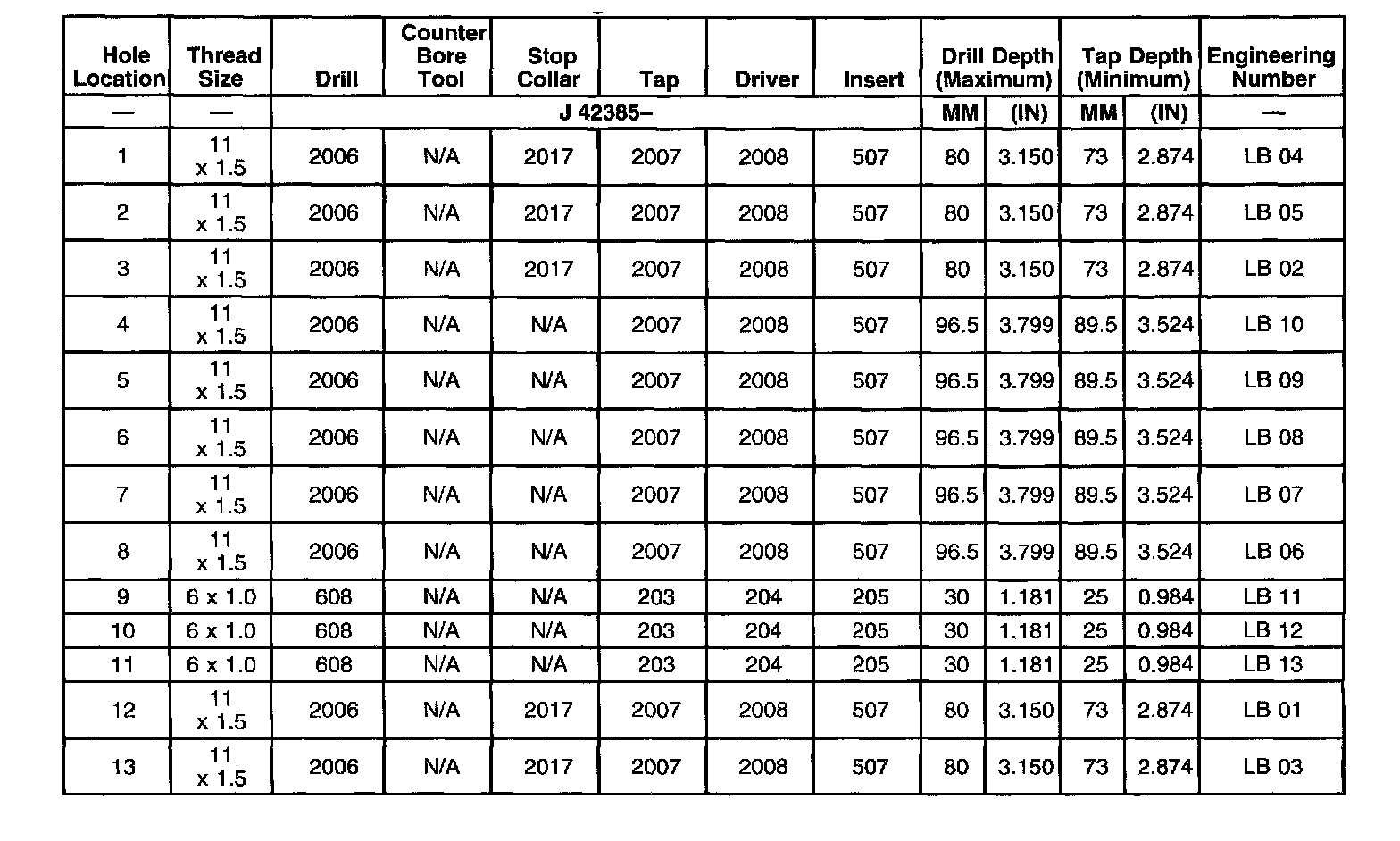

Engine Block Left Deck

Part 1 of 2

Part 2 of 2

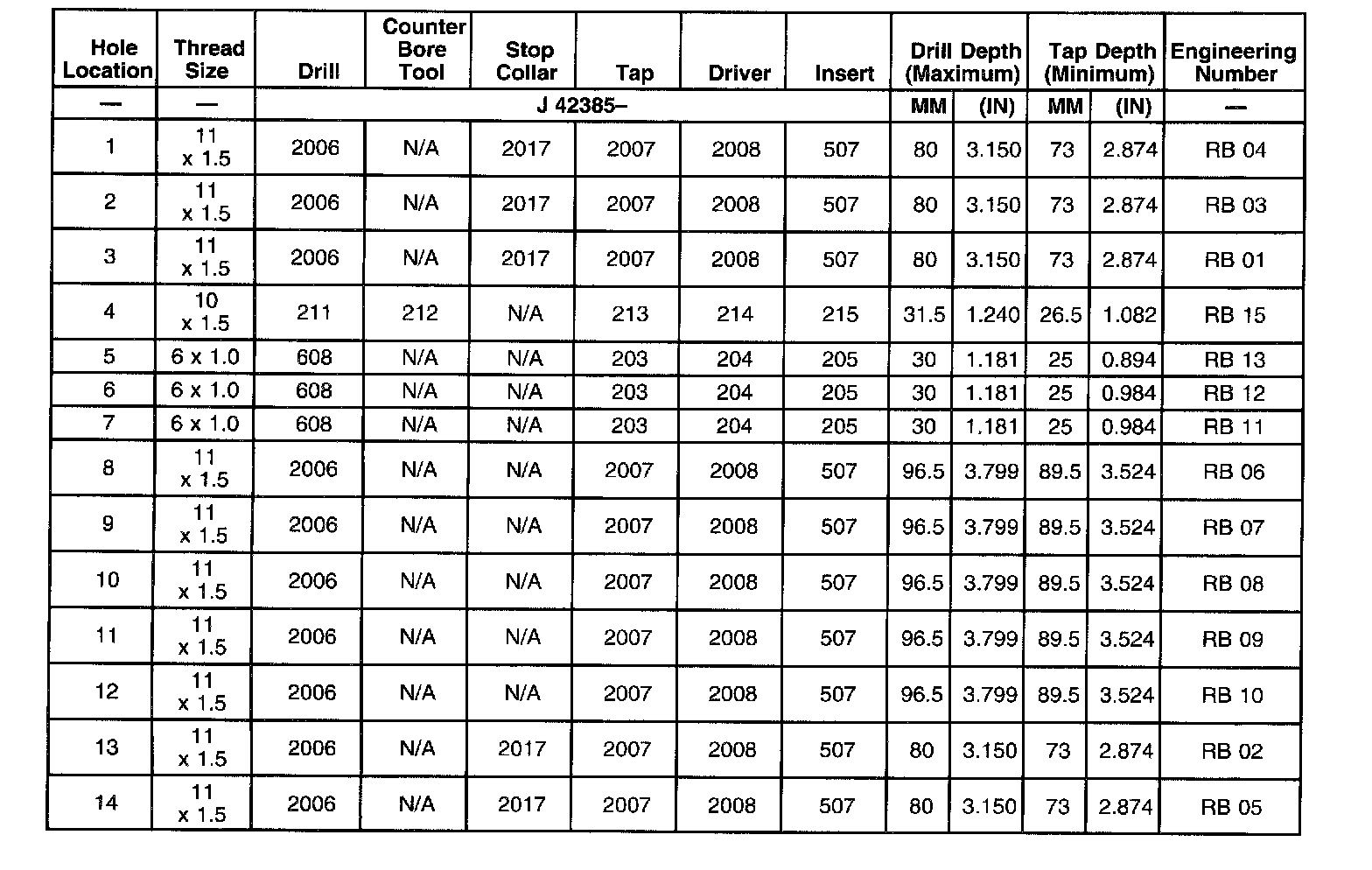

Engine Block Right Deck

Part 1 of 2

Part 2 of 2

Lower Crankcase Pan

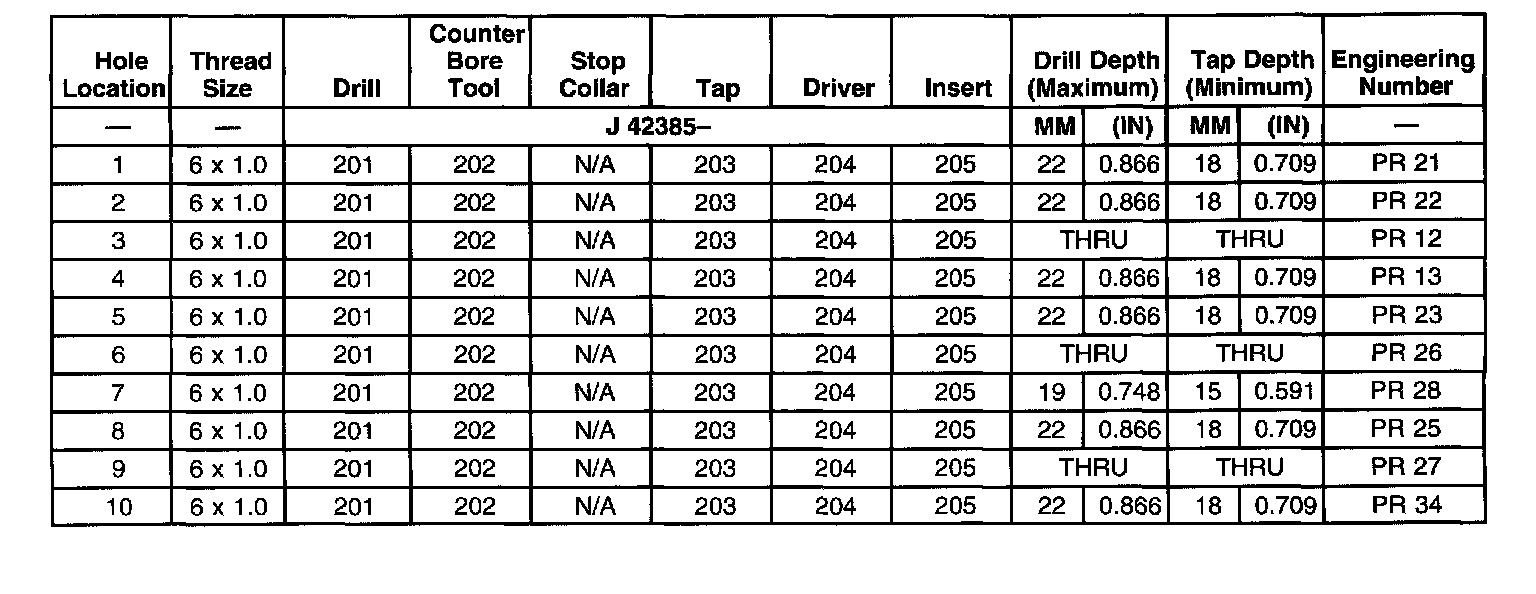

Part 1 of 3

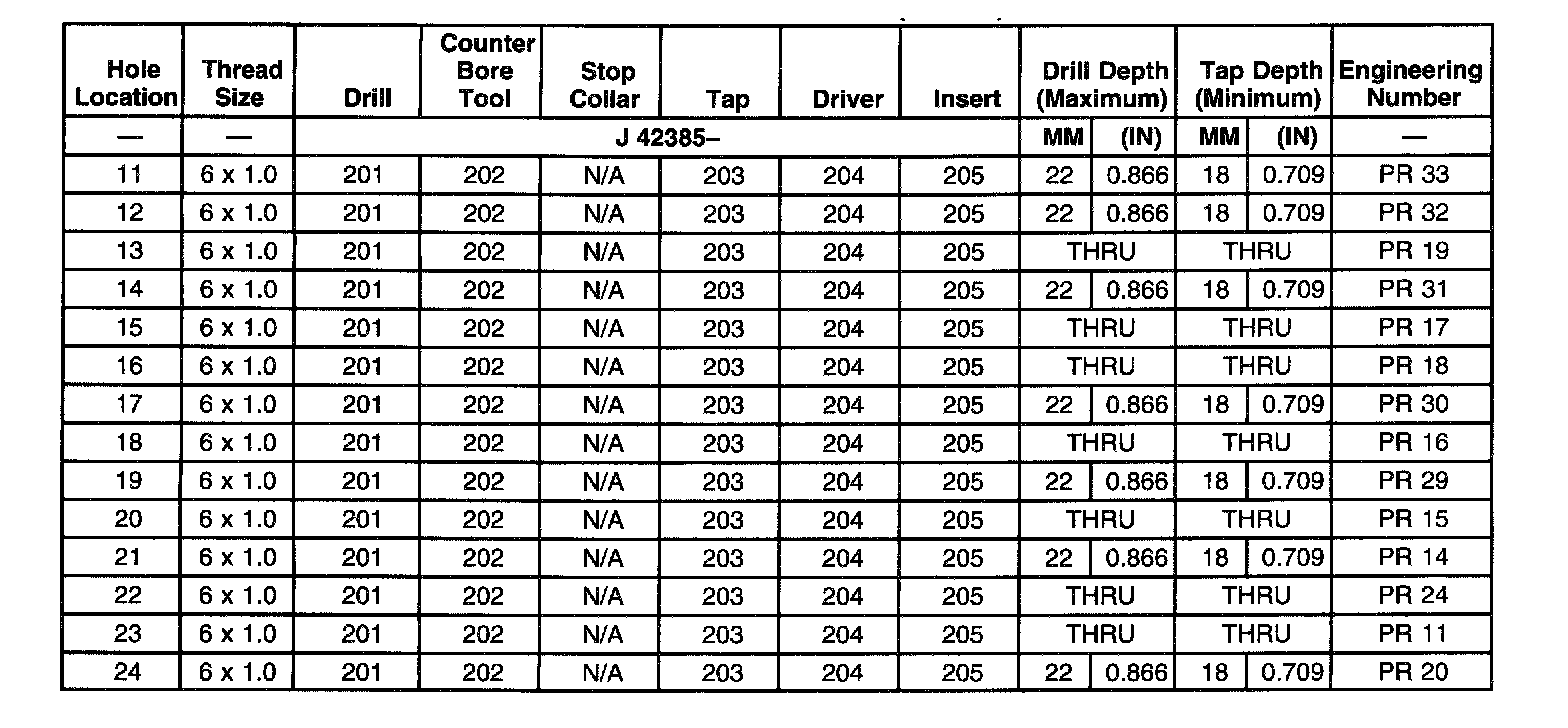

Part 2 of 3

Part 3 of 3
