Control Module References

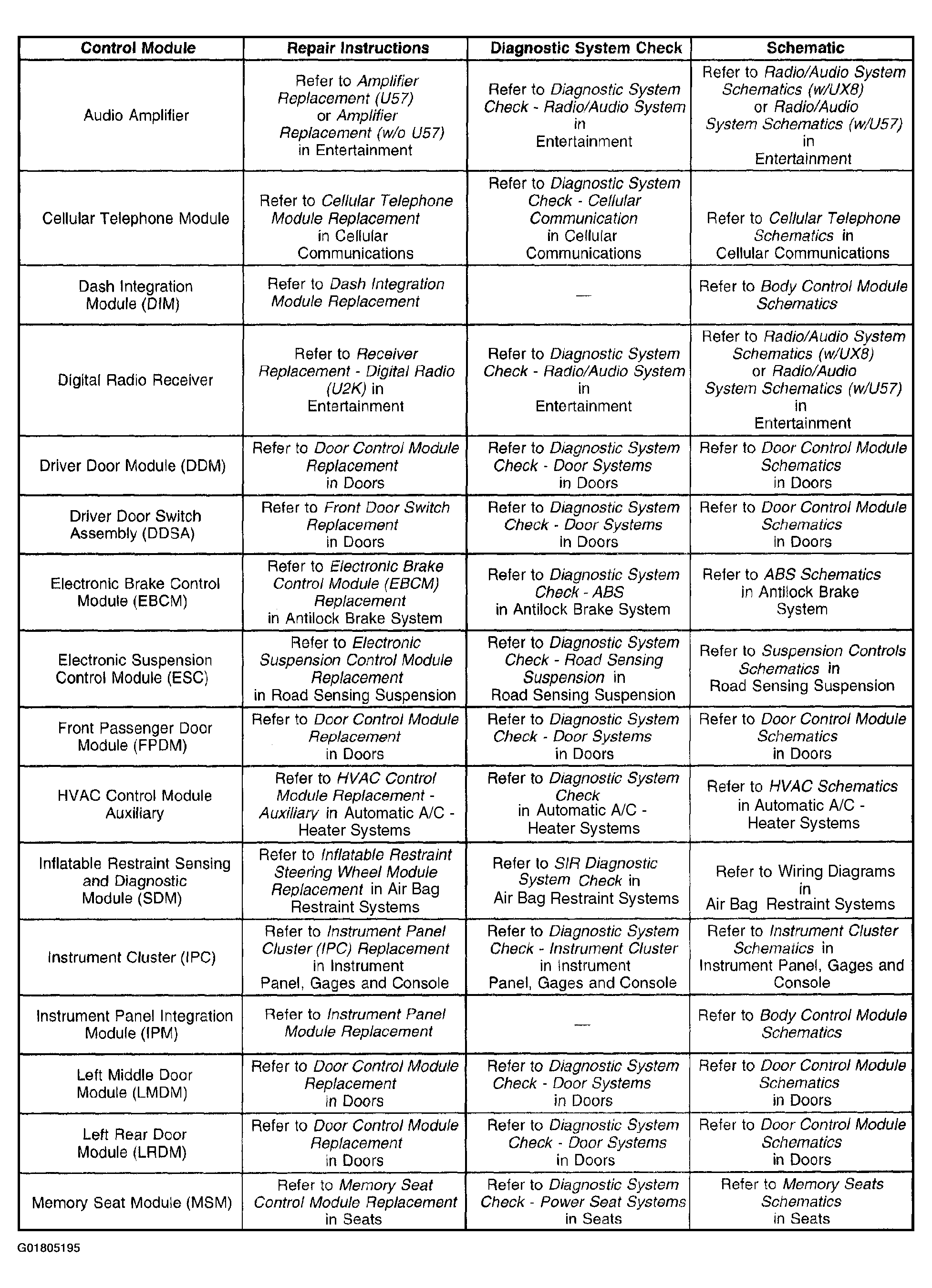

Fig 1: Control Module References (1 Of 2)
G01805195Courtesy of GENERAL MOTORS CORP.

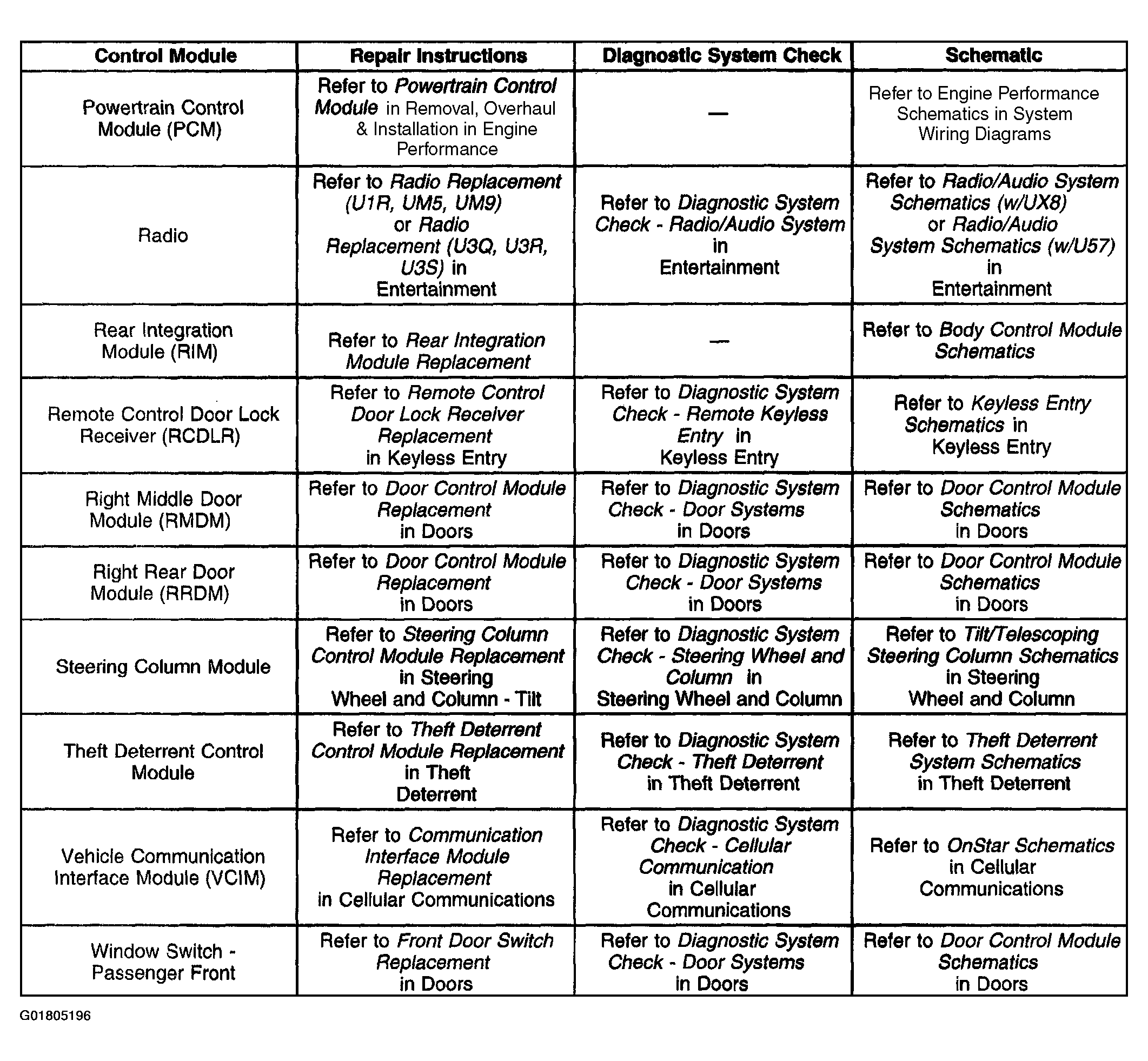

Fig 2: Control Module References (2 Of 2)
G01805196Courtesy of GENERAL MOTORS CORP.
