Installation Procedure

  1. Install the DIM module to the bracket.
  2. Slide the DIM module upward until the DIM module and the locking tab are fully engaged.

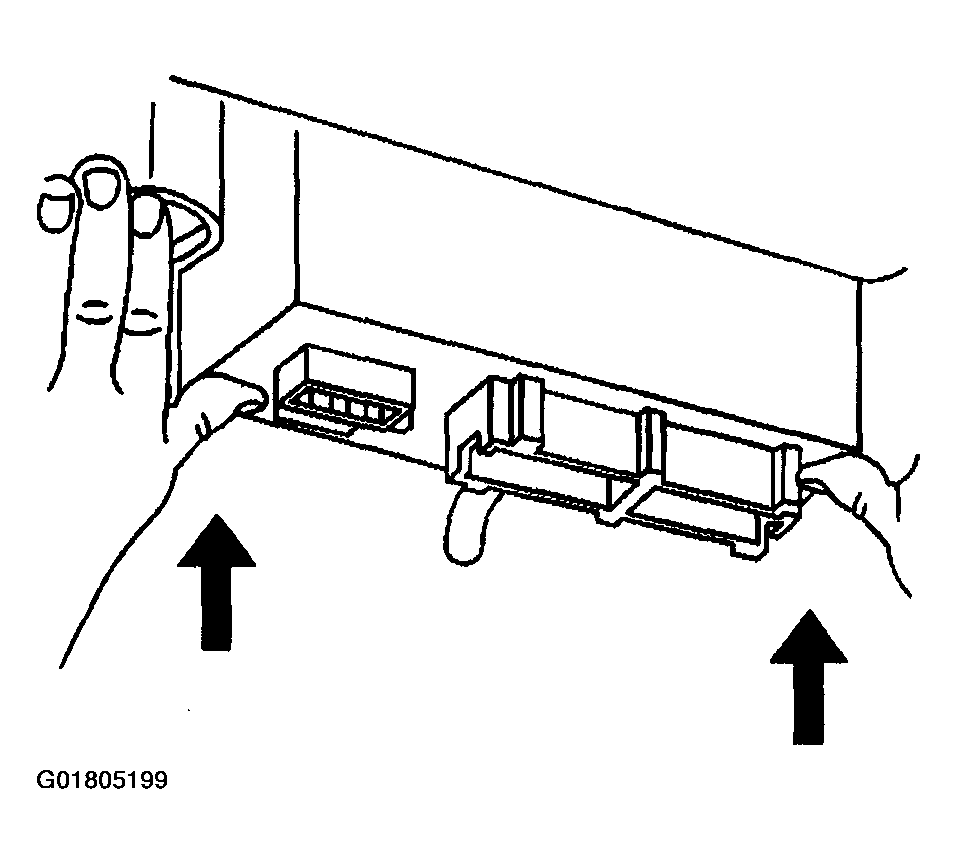

    Fig 1: Sliding DIM Module Upward
    G01805199Courtesy of GENERAL MOTORS CORP.
  3. Connect the DIM module electrical connectors (2).
  4. Install the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  5. Reprogram the DIM module (1). Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM)  or Body Control Module (BCM) Programming/RPO Configuration (IPM)  or Body Control Module (BCM) Programming/RPO Configuration (RIM) .

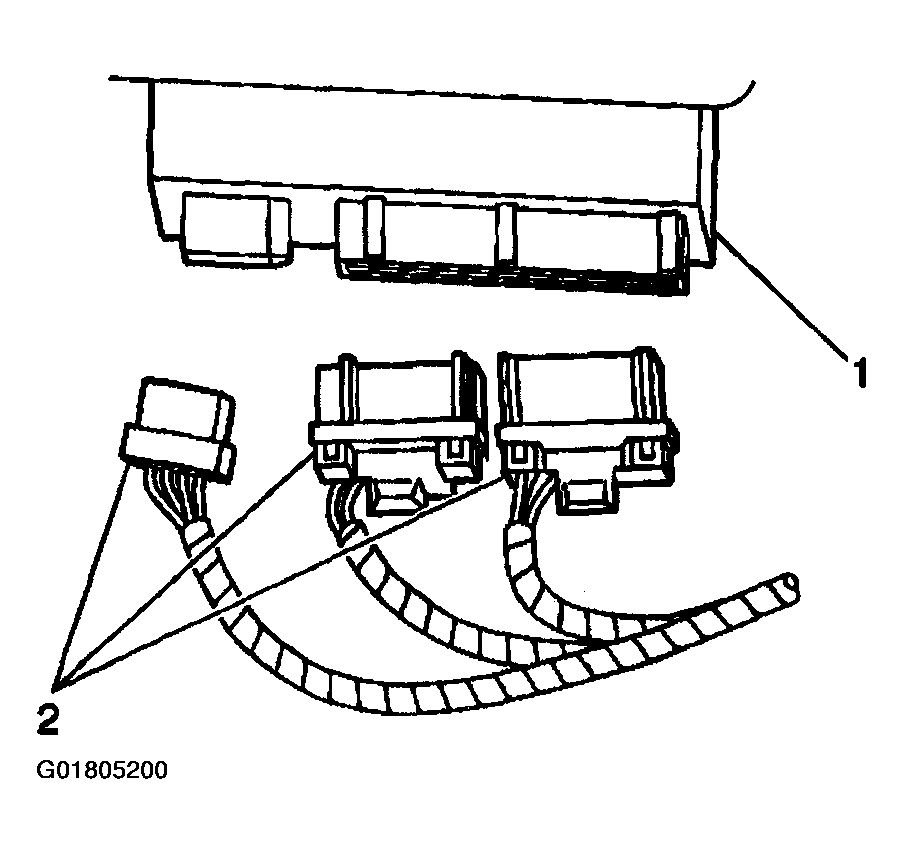

    Fig 2: Connecting DIM Module Electrical Connectors & Reprogram DIM Module
    G01805200Courtesy of GENERAL MOTORS CORP.
