Removal Procedure

Important:  Before replacement of the DIM module (1), record the personalization settings in order to transfer the settings after the DIM module (1) has been replaced. Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM)  or Body Control Module (BCM) Programming/RPO Configuration (IPM)  or Body Control Module (BCM) Programming/RPO Configuration (RIM) .

1. Remove the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
2. Disconnect the DIM module electrical connectors (2).

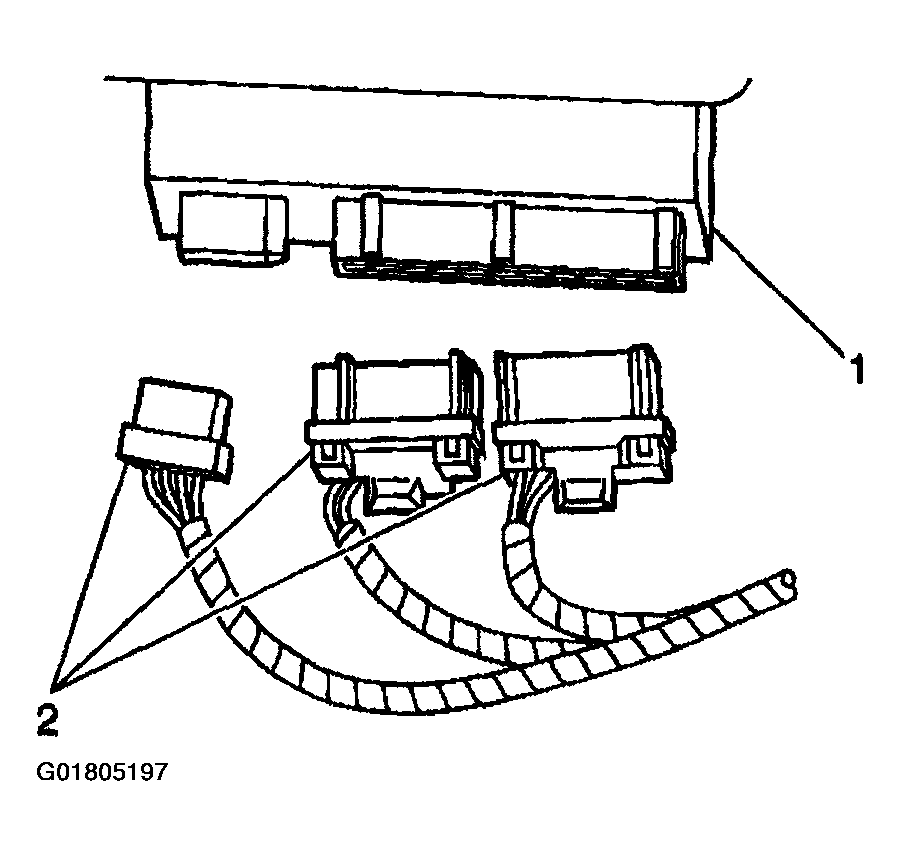

   Fig 1: Disconnecting DIM Module Electrical Connectors From DIM Module

   Courtesy of GENERAL MOTORS CORP.
3. Depress inward on the locking tab (2).
4. With the locking tab (2) depressed, slide the DIM module (2) downward.
5. Remove the DIM module (1) from the bracket.

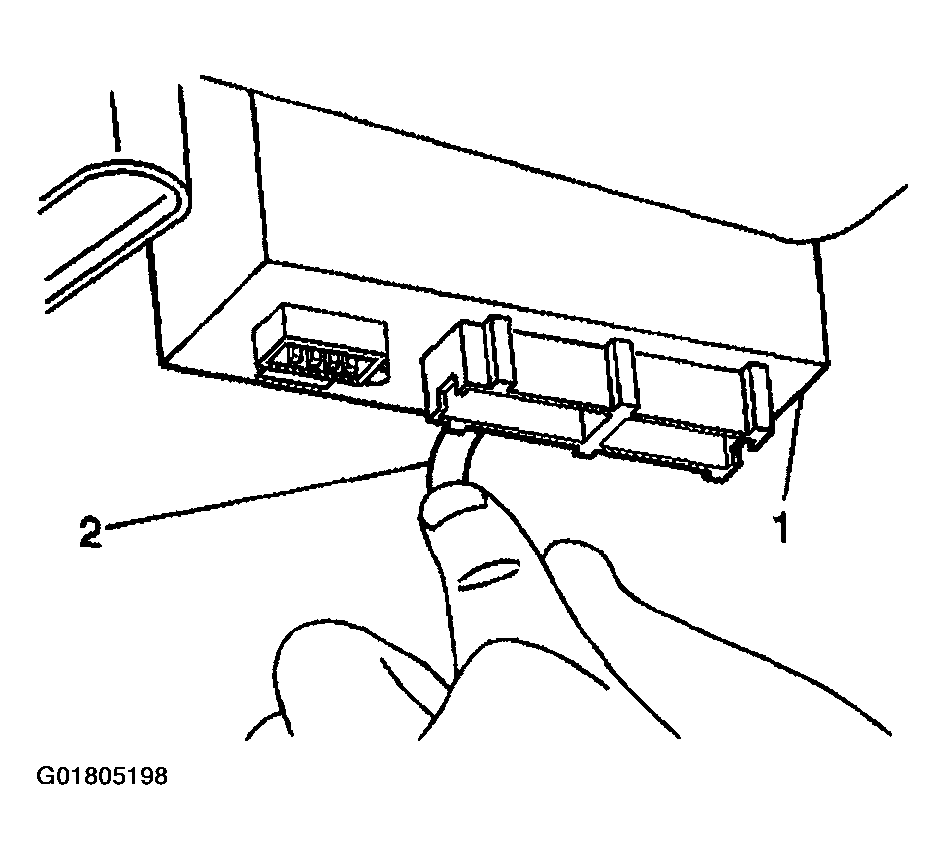

   Fig 2: Depressing Locking Tab & Removing DIM Module

   Courtesy of GENERAL MOTORS CORP.
