Body Control Module Schematics

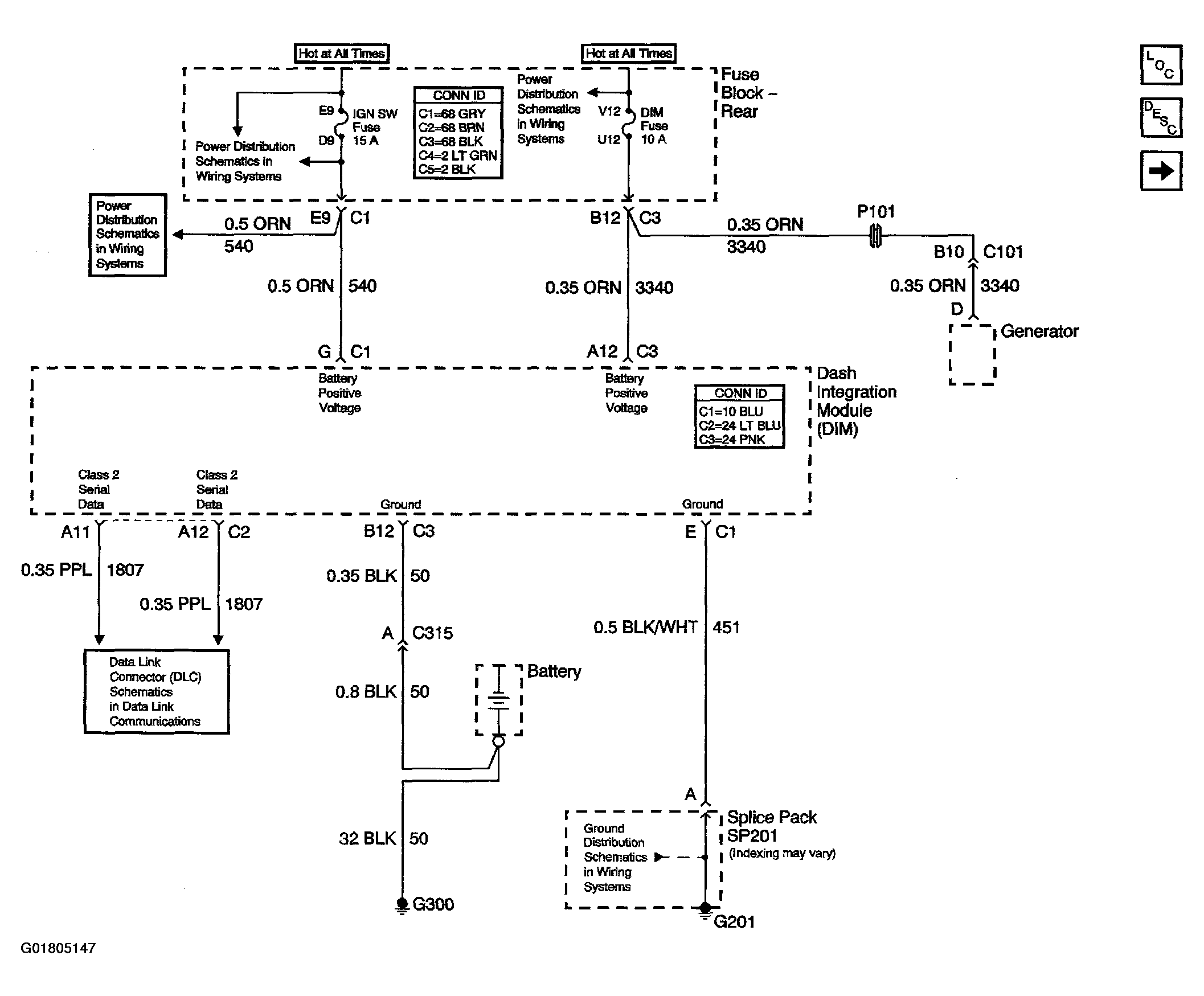

Fig 1: Body Control Module Schematics (Dash Integration Module (DIM) - Power, Ground & Serial Data)
G01805147Courtesy of GENERAL MOTORS CORP.

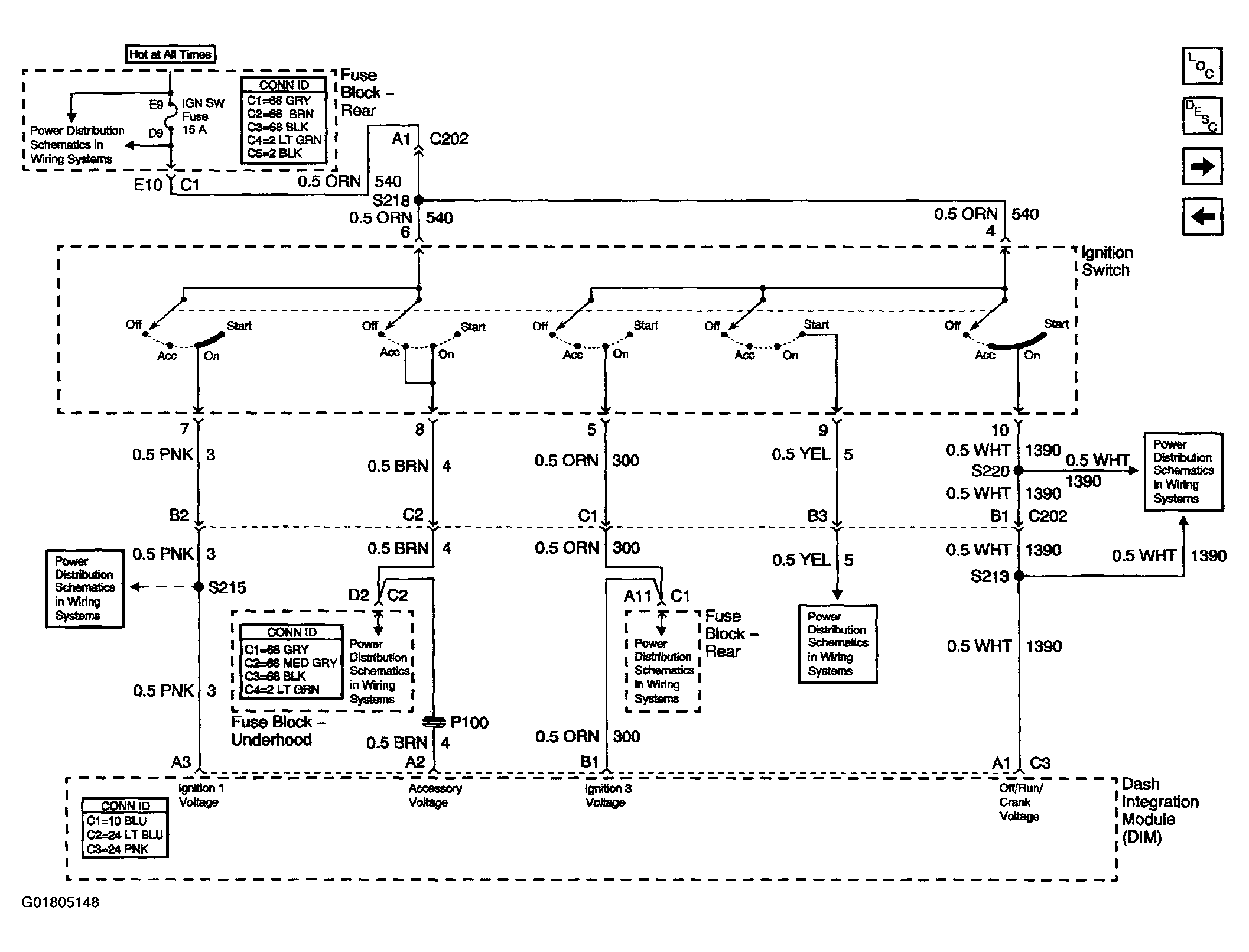

Fig 2: Body Control Module Schematics (Dash Integration Module (DIM) - Ignition Switch Inputs)
G01805148Courtesy of GENERAL MOTORS CORP.

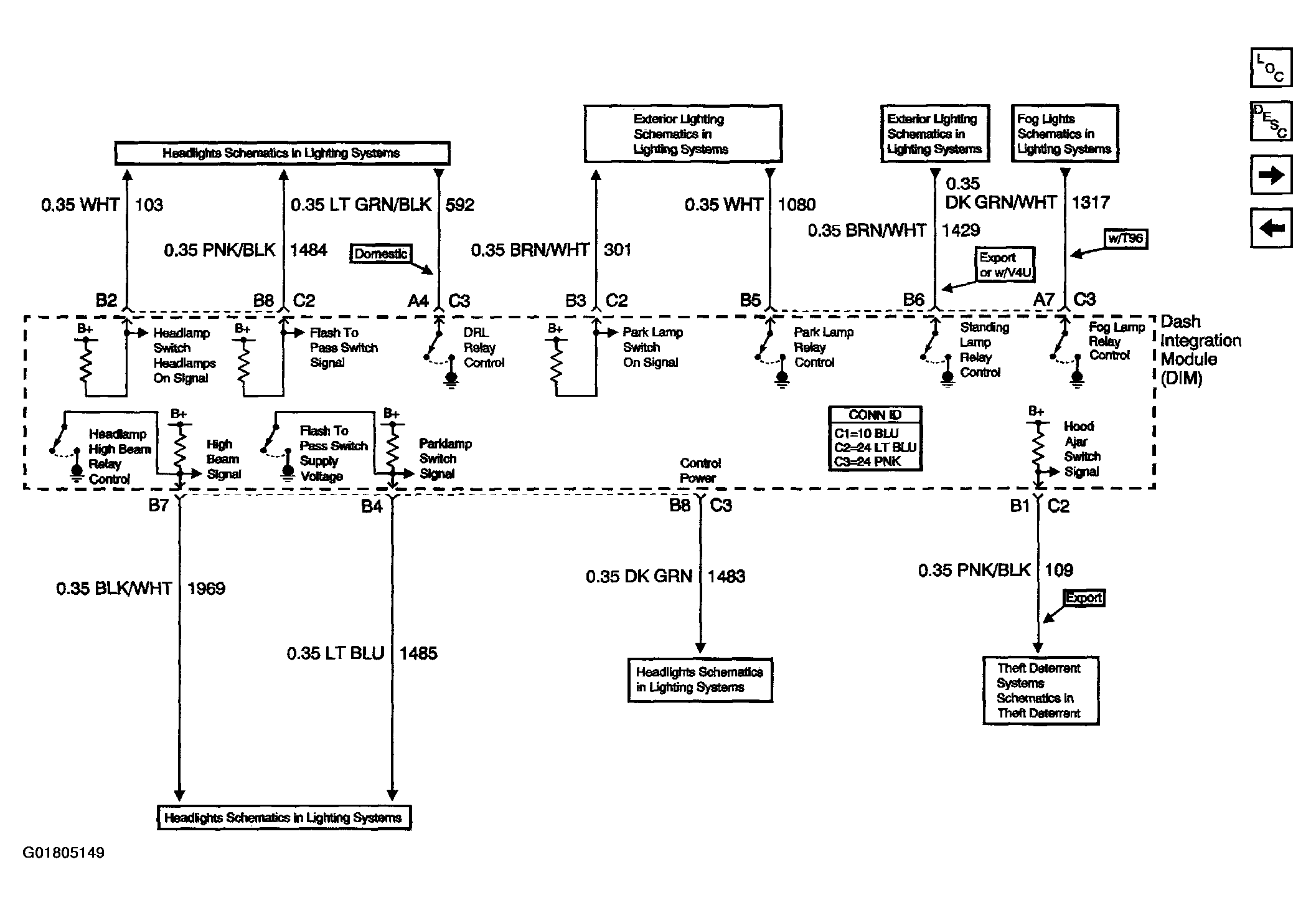

Fig 3: Body Control Module Schematics (Dash Integration Module (DIM) - Lighting Inputs & Outputs)
G01805149Courtesy of GENERAL MOTORS CORP.

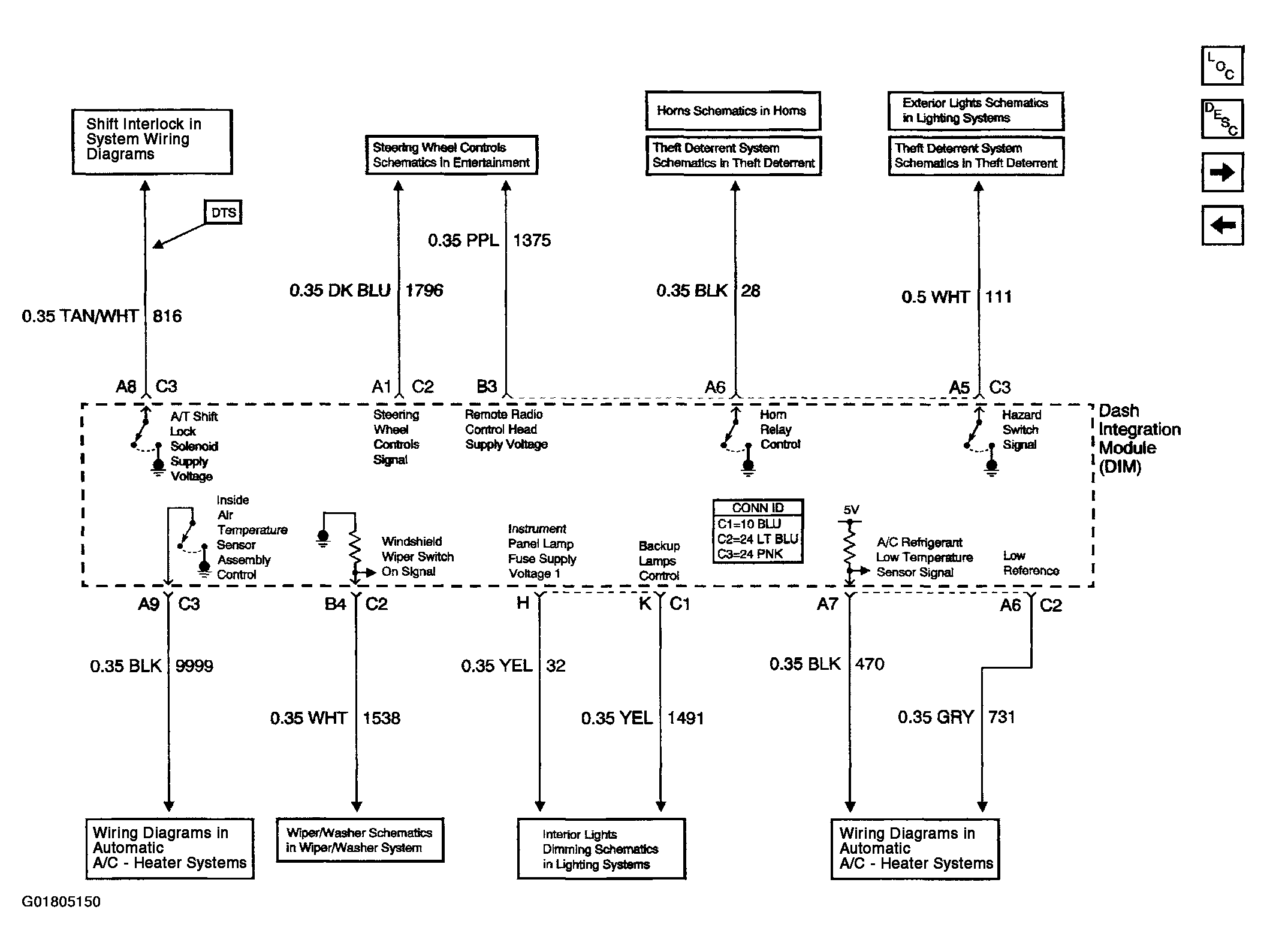

Fig 4: Body Control Module Schematics (Dash Integration Module (DIM) - Inputs & Outputs)
G01805150Courtesy of GENERAL MOTORS CORP.

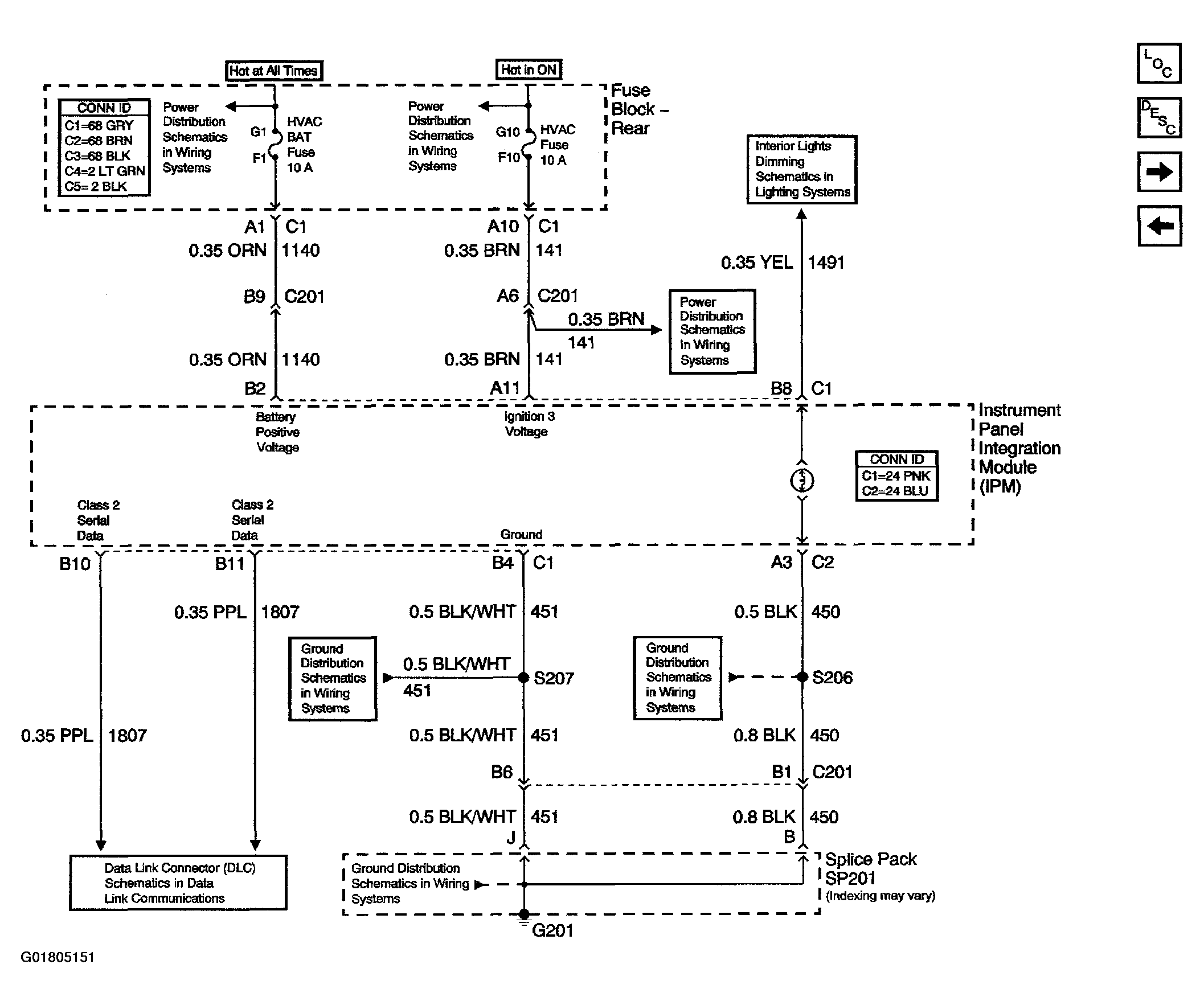

Fig 5: Body Control Module Schematics (Instrument Panel Integration Module (IPM) Power, Ground & Serial Data)
G01805151Courtesy of GENERAL MOTORS CORP.

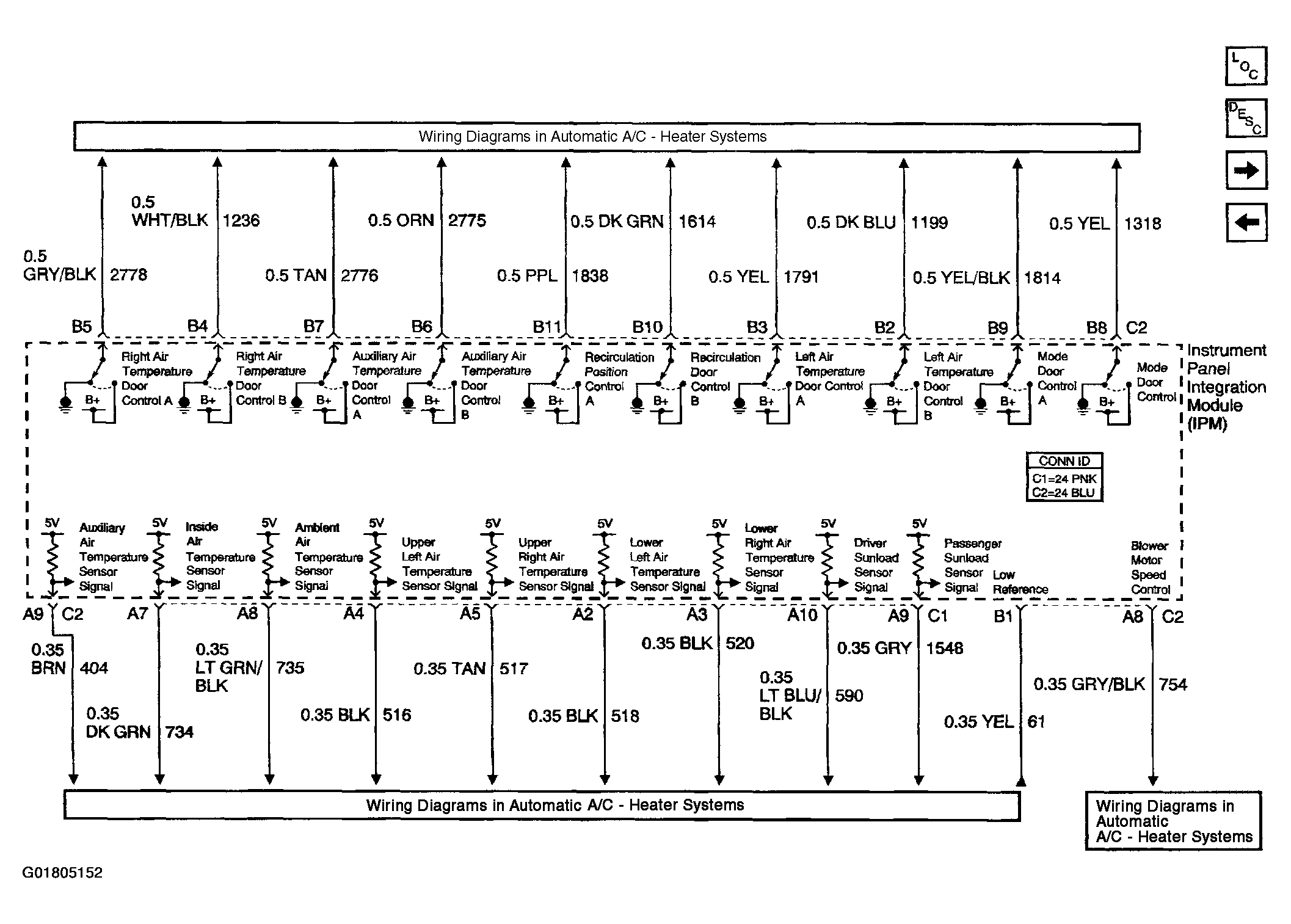

Fig 6: Body Control Module Schematics (Instrument Panel Integration Module (IPM) - HVAC Inputs & Outputs)
G01805152Courtesy of GENERAL MOTORS CORP.

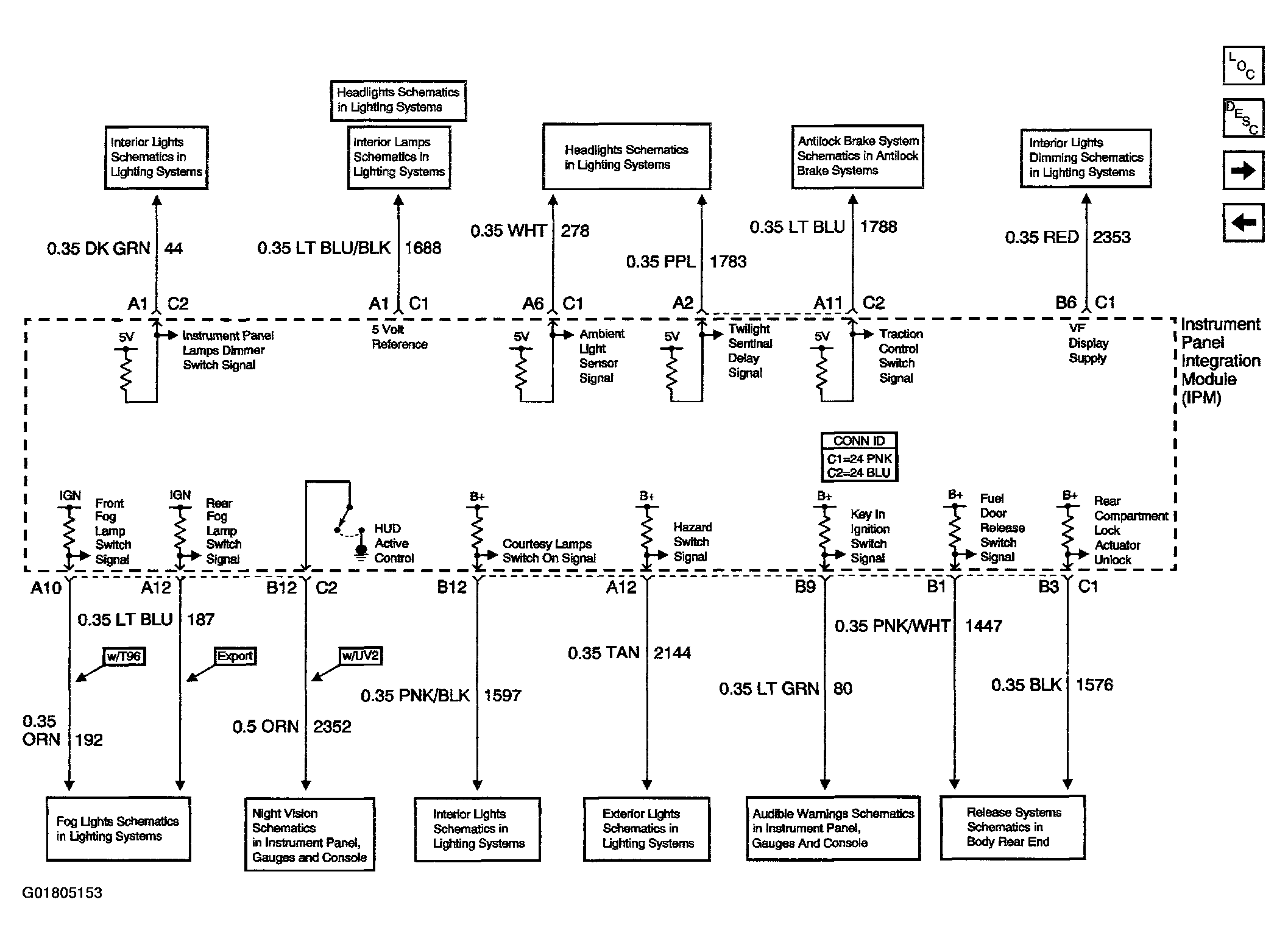

Fig 7: Body Control Module Schematics (Instrument Panel Integration Module (IPM) - Inputs & Outputs)
G01805153Courtesy of GENERAL MOTORS CORP.

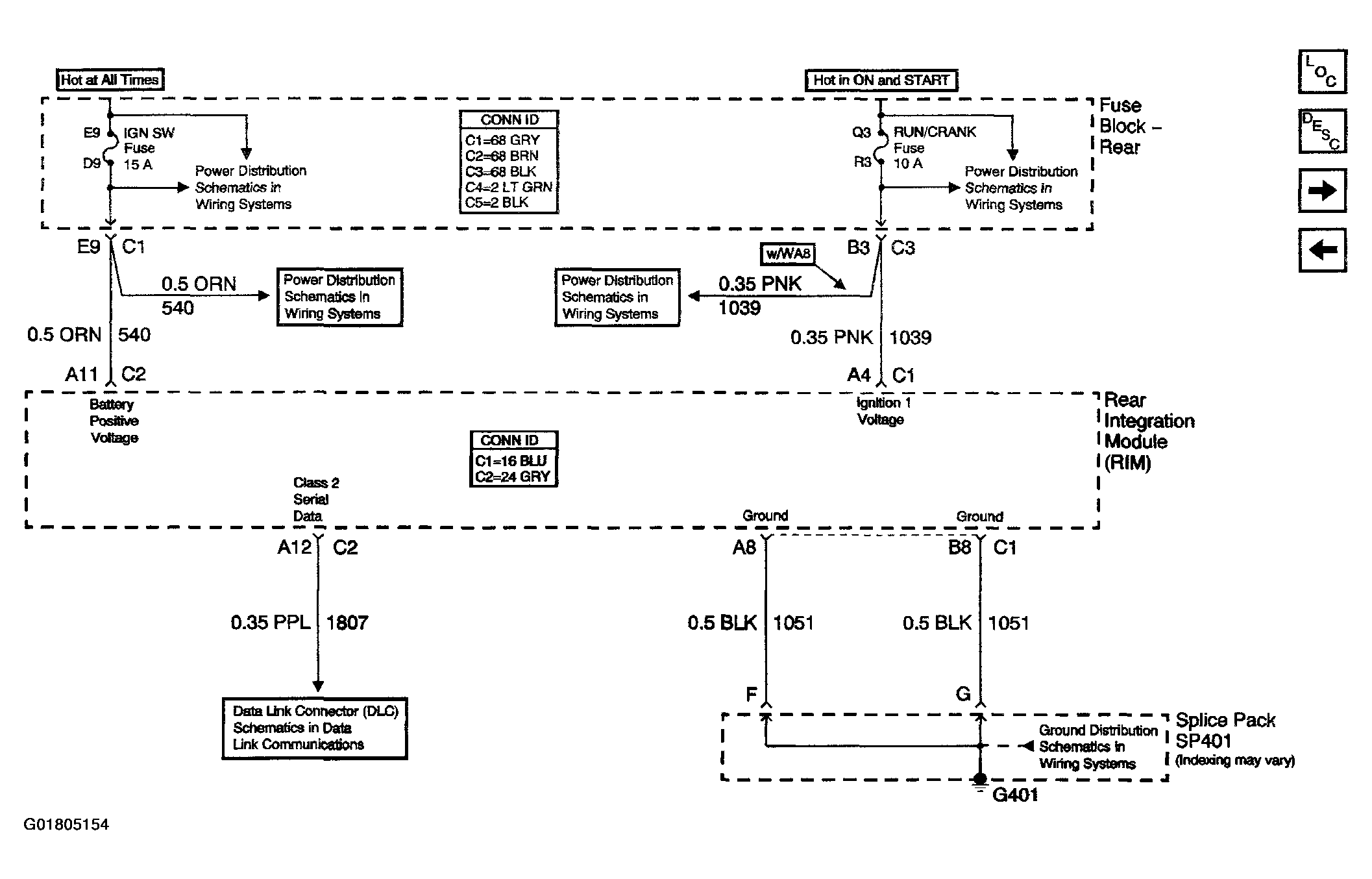

Fig 8: Body Control Module Schematics (Rear Integration Module (RIM) - Power, Ground & Serial Data)
G01805154Courtesy of GENERAL MOTORS CORP.

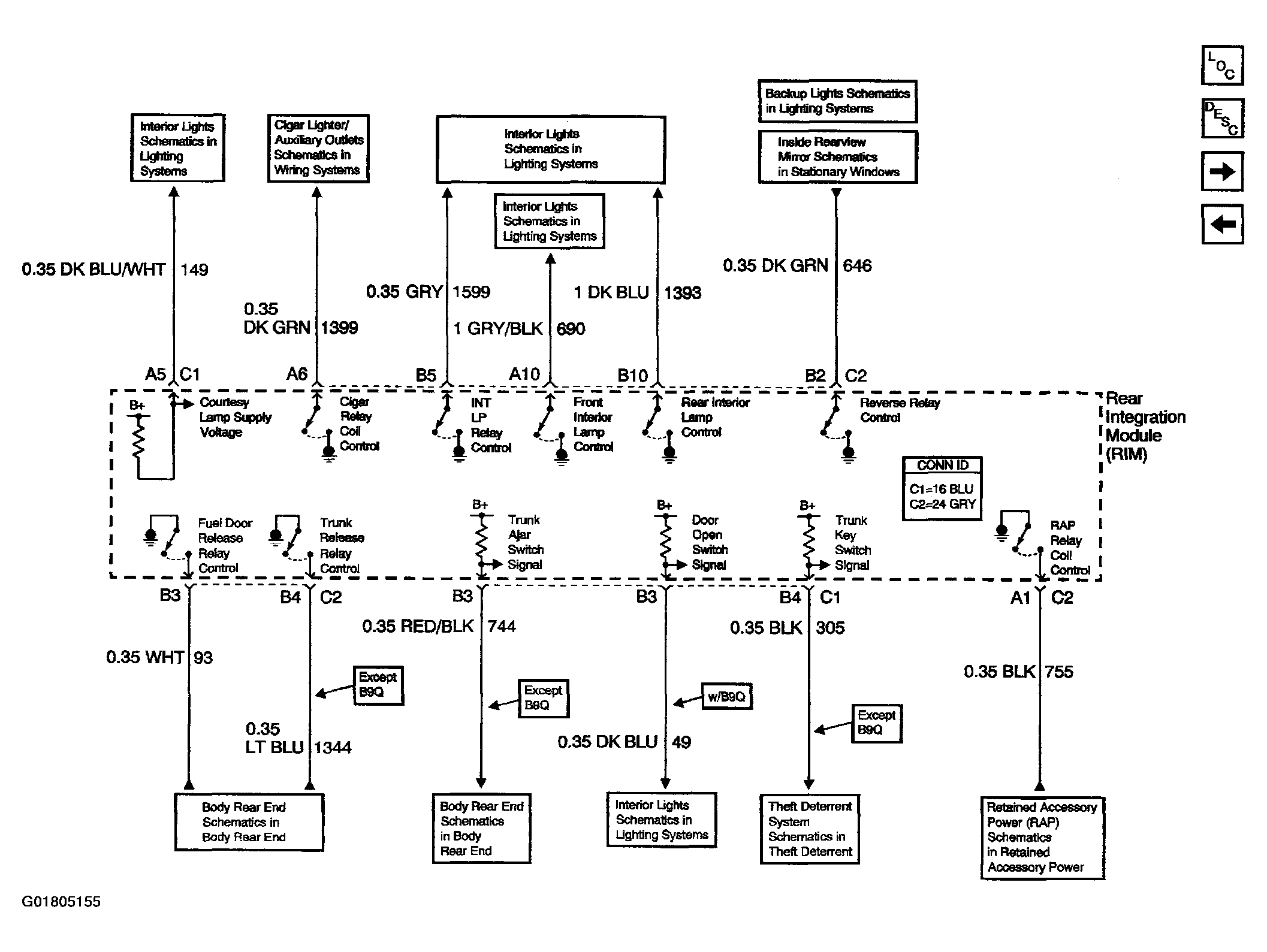

Fig 9: Body Control Module Schematics (Rear Integration Module (RIM) - Lighting, Release Systems & Other Inputs & Outputs)
G01805155Courtesy of GENERAL MOTORS CORP.

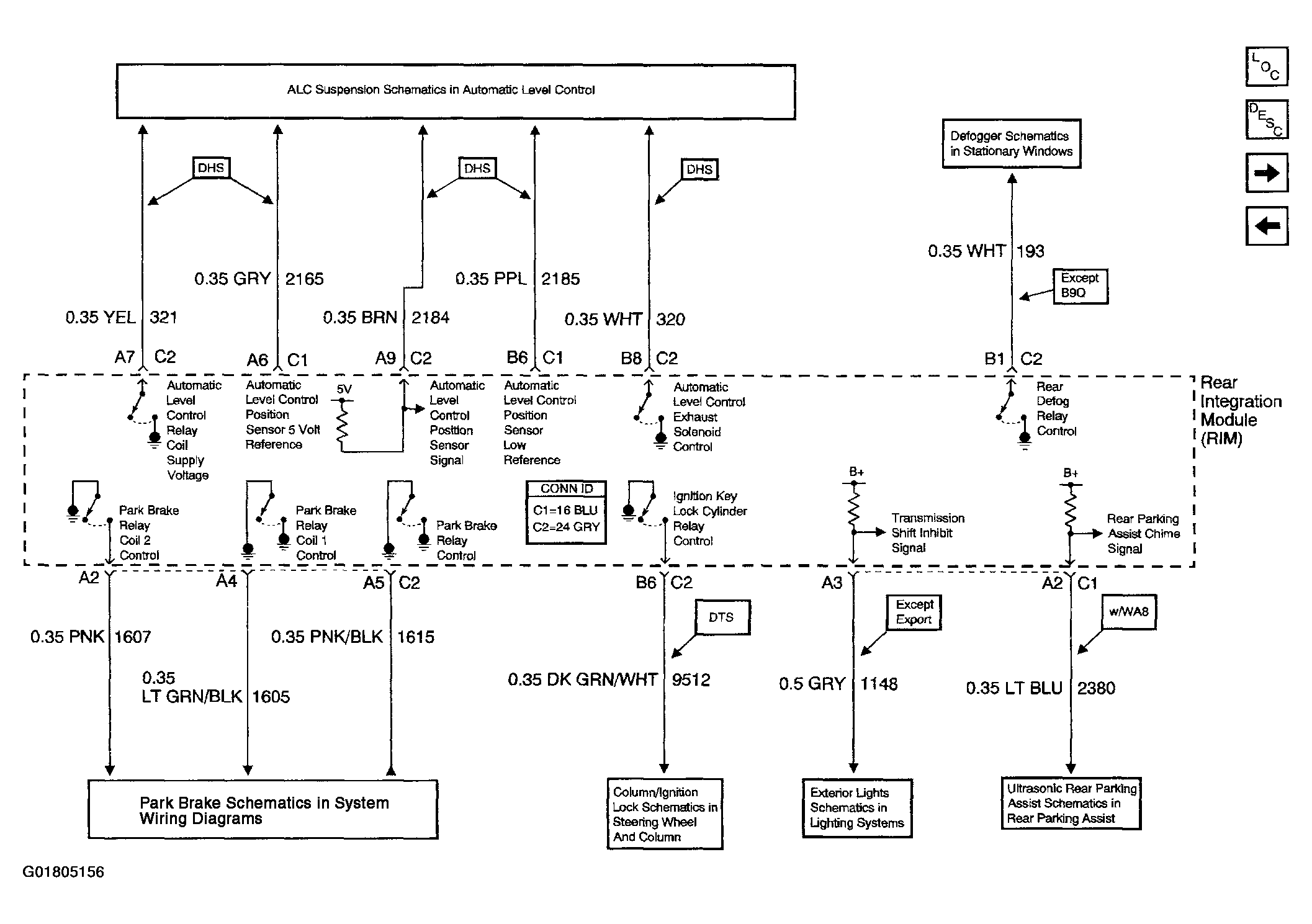

Fig 10: Body Control Module Schematics (Rear Integration Module (RIM) - Level Control & Other Inputs & Outputs)
G01805156Courtesy of GENERAL MOTORS CORP.
