Installation Procedure

  1. Install the remote control door lock receiver (1) to the rear shelf.
  2. Reconnect all electrical connectors.
  3. Install the rear storage compartment trim. Refer to COMPARTMENT FRONT TRIM PANEL REPLACEMENT - REAR in Body Rear End.
  4. Program the new remote control door lock receiver to recognize the transmitters for the vehicle. Refer to Transmitter Programming .

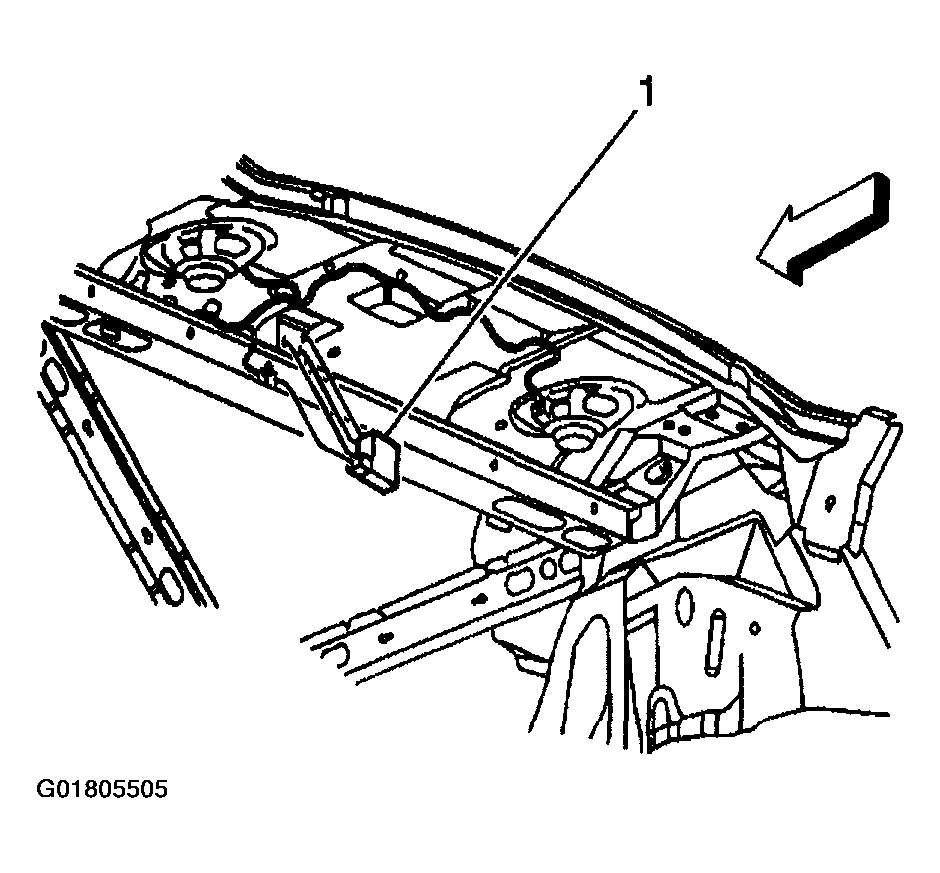

    Fig 1: Installing Remote Control Door Lock Receiver
    G01805505Courtesy of GENERAL MOTORS CORP.
