Yaw Rate Sensor

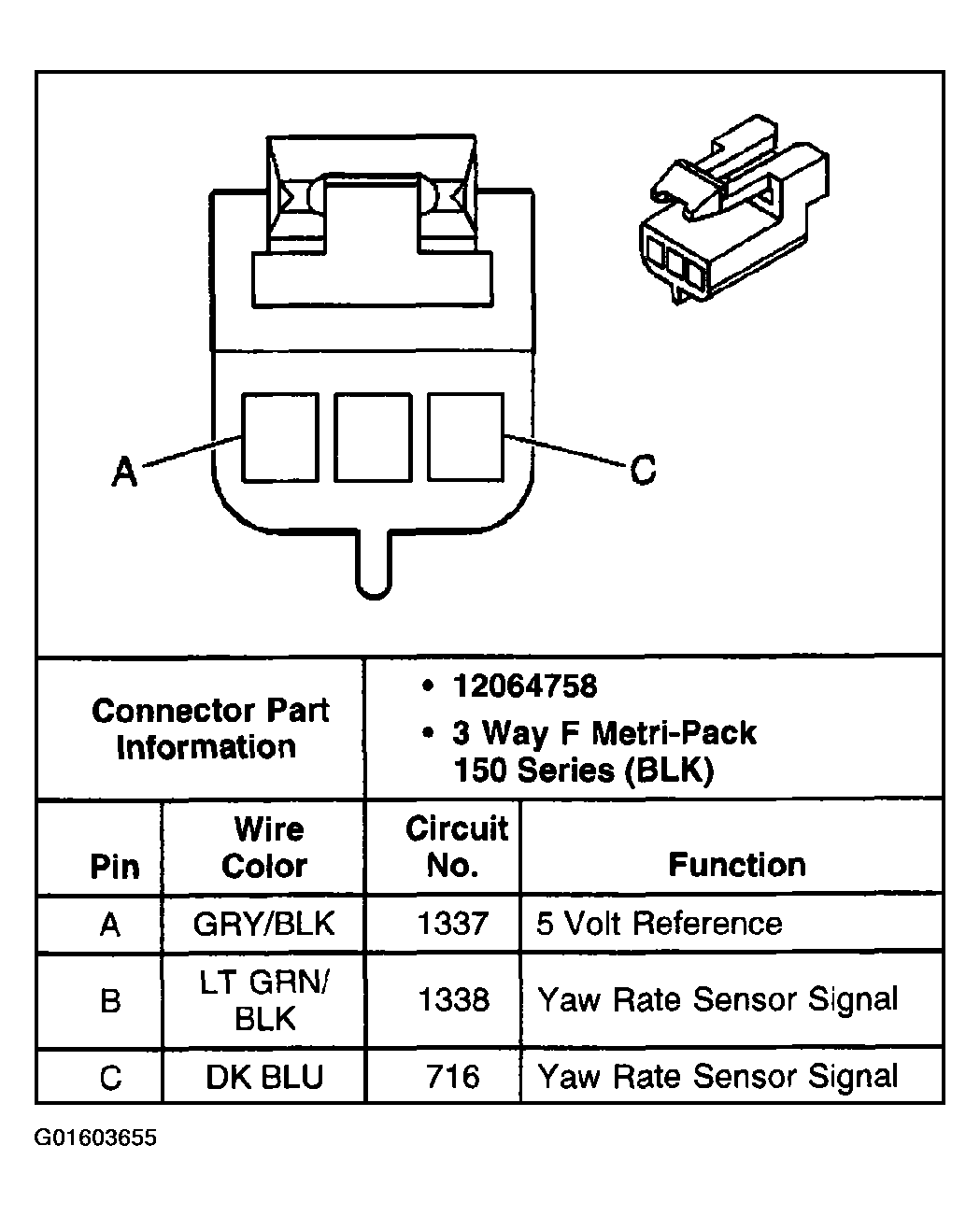

Fig 1: Yaw Rate Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
