Installation Procedure

  1. Install the switch to the switch panel sliding the front tabs in first. Rock the switch down in order to seat the switch completely.
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the screws to the window switch.

    Tighten:  Tighten the window switch screws to 2 N.m (18 lb in).

  3. Connect the electrical connector to the window switch.

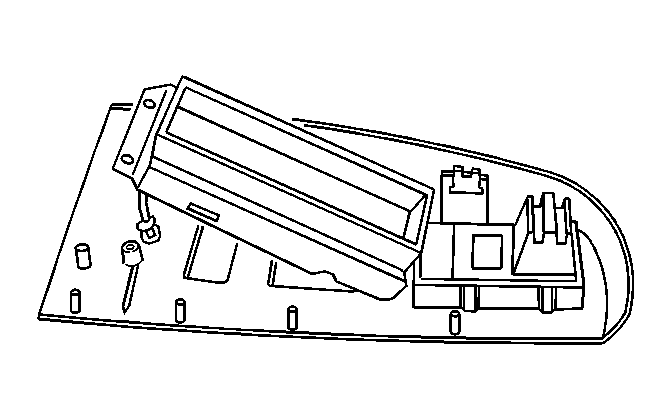

    4. Fig 1: Power Accessory Switch Panel
    GM653104Courtesy of GENERAL MOTORS CORP.
  4. Install the power accessory switch panel. Refer to Power Accessory Switch Panel Replacement .
