Cruise Control Module (CCM) Connector End View

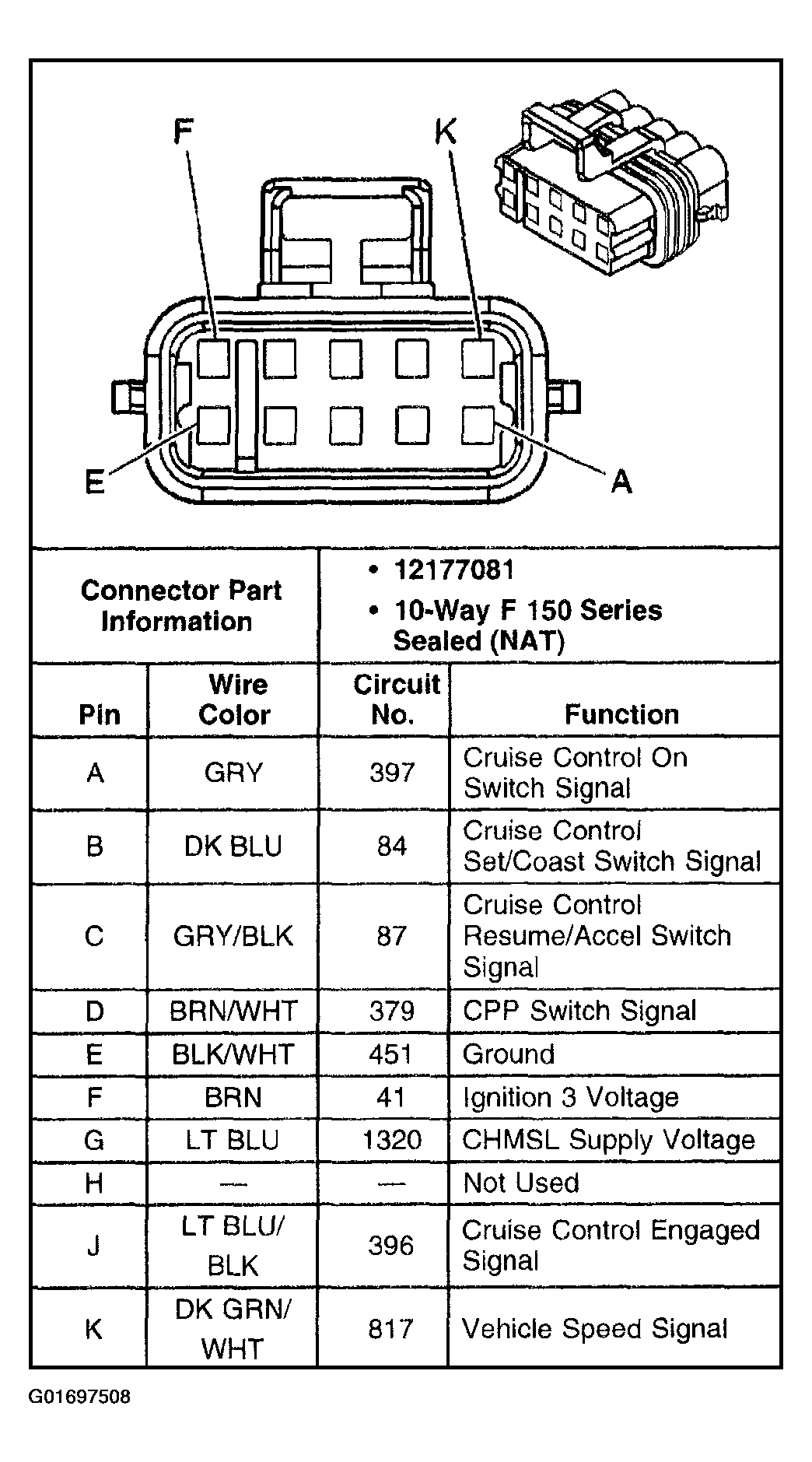

Fig 1: Cruise Control Module (CCM) Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
