Identifying HVAC Control Module-C1 Harness Connector End View

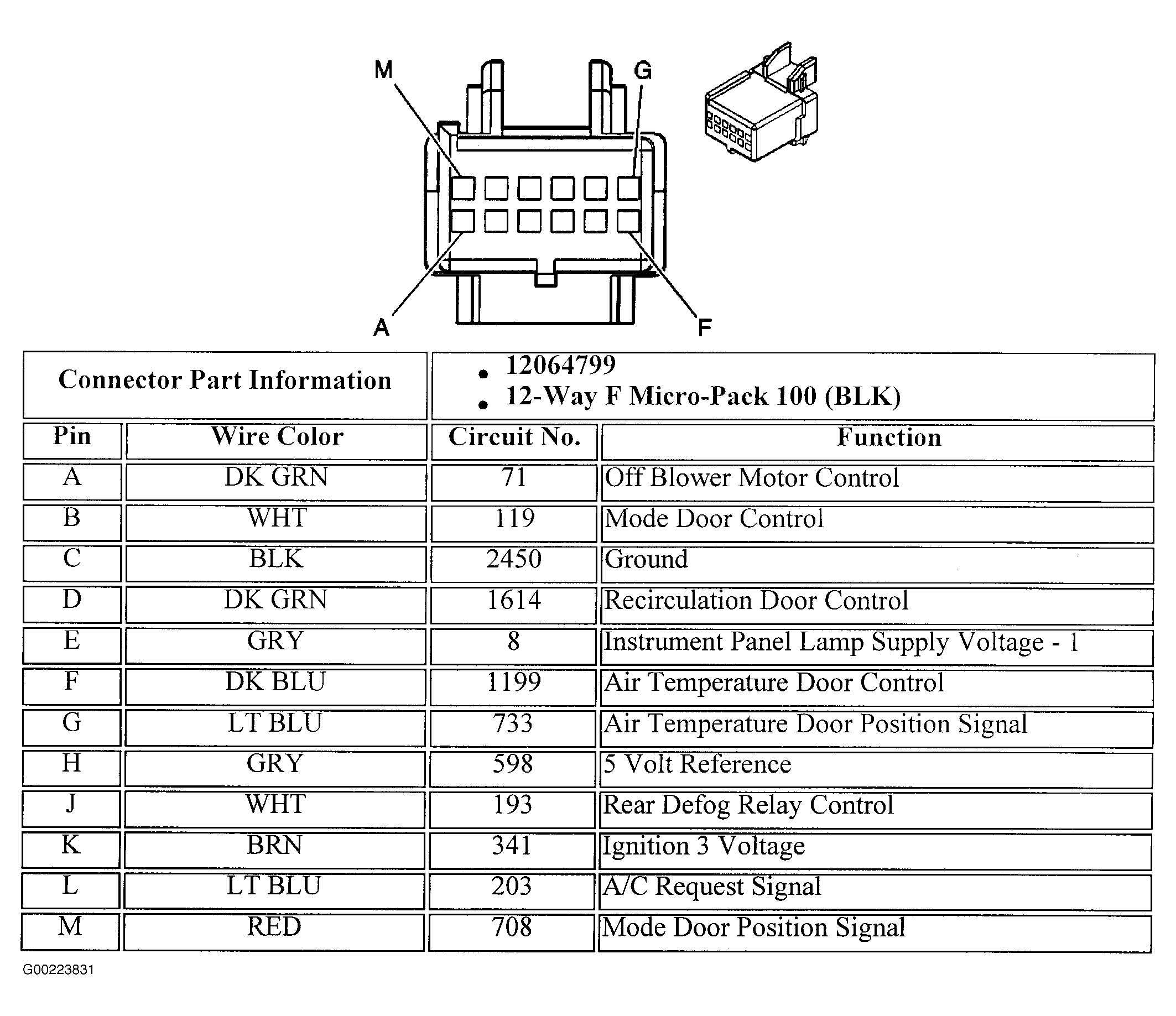

Fig 1: Identifying HVAC Control Module-C1 Harness Connector End View
G00223831Courtesy of GENERAL MOTORS CORP.
