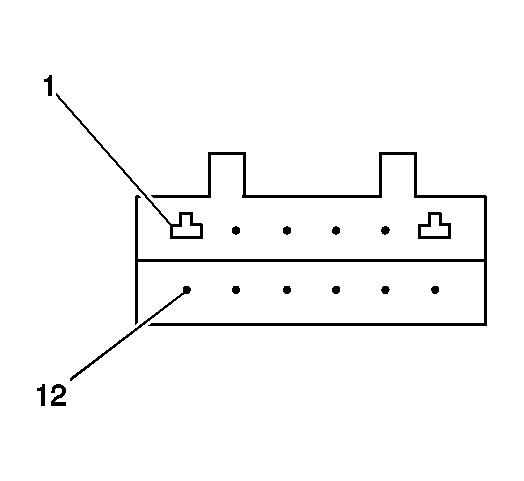

Sunroof Module Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		927084 12-Way F AMP (BLK)
Pin	Wire Color	Circuit No.	Function
1	ORN	110	Sunroof Switch Close Signal
2	BRN	100	Sunroof Switch Open Signal
3	-	-	Not Used
4	RED	2	Battery Positive Voltage
5	DK GRN	801	RAP 2 Fuse Supply Voltage
6	BLK	1050	Ground
7-12	-	-	Not Used
