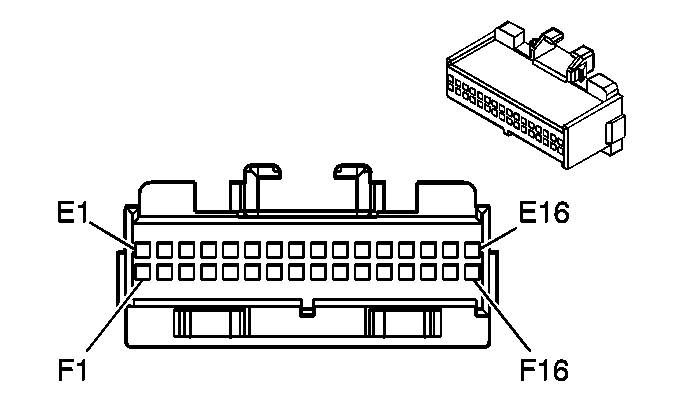

Transfer Case Shift Control Module Connector End View - C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052107 32-Way F Micro-Pack 100 Series (ORN)
Pin	Wire Color	Circuit No.	Function
E1	TAN	1569	Lock Solenoid Control
E2	-	-	Not Used
E3	PNK	1561	AWD Indicator Control
E4	LT GRN/ BLK	1563	2 'HI' Indicator - Control
E5	BRN/WHT	1555	Channel P Encoder - Signal
E6	RED/WHT	1556	Channel C Encoder - Signal
E7	YEL/BLK	1558	Channel B Encoder - Signal
E8	DK BLU/ WHT	1557	Channel A Encoder - Signal
E9	DK GRN/ WHT	1133	ATC Class 2 Serial Data
E10	BRN	241	Ignition 3 Voltage
E11	-	-	Not Used
E12	YEL	400	Signal High - Front
E13	PPL	401	Signal Low - Front
E14	BLK/WHT	1695	Axle Switch Signal
E15	-	-	Not Used
E16	BLK	1850	Ground
F1	PPL/WHT	1565	4 'LO' Indicator - Control
F2	TAN/BLK	1566	4 'HI' Indicator - Control
F3	BRN	1560	Neutral Indicator Control
F4	LT BLU	1296	Axle Actuator - Control
F5	LT BLU	2221	Signal High - Rear
F6	DK GRN	2222	Signal Low - Rear
F7	GRY/BLK	1694	4WD Low Signal
F8-F11	-	-	Not Used
F12	BLK/WHT	1554	Encoder Signal Ground
F13	LT GRN/ BLK	431	8 Volt Reference
F14	LT GRN/ BLK	431	8 Volt Reference
F15	-	-	Not Used
F16	LT BLU	1693	Switch Signal
