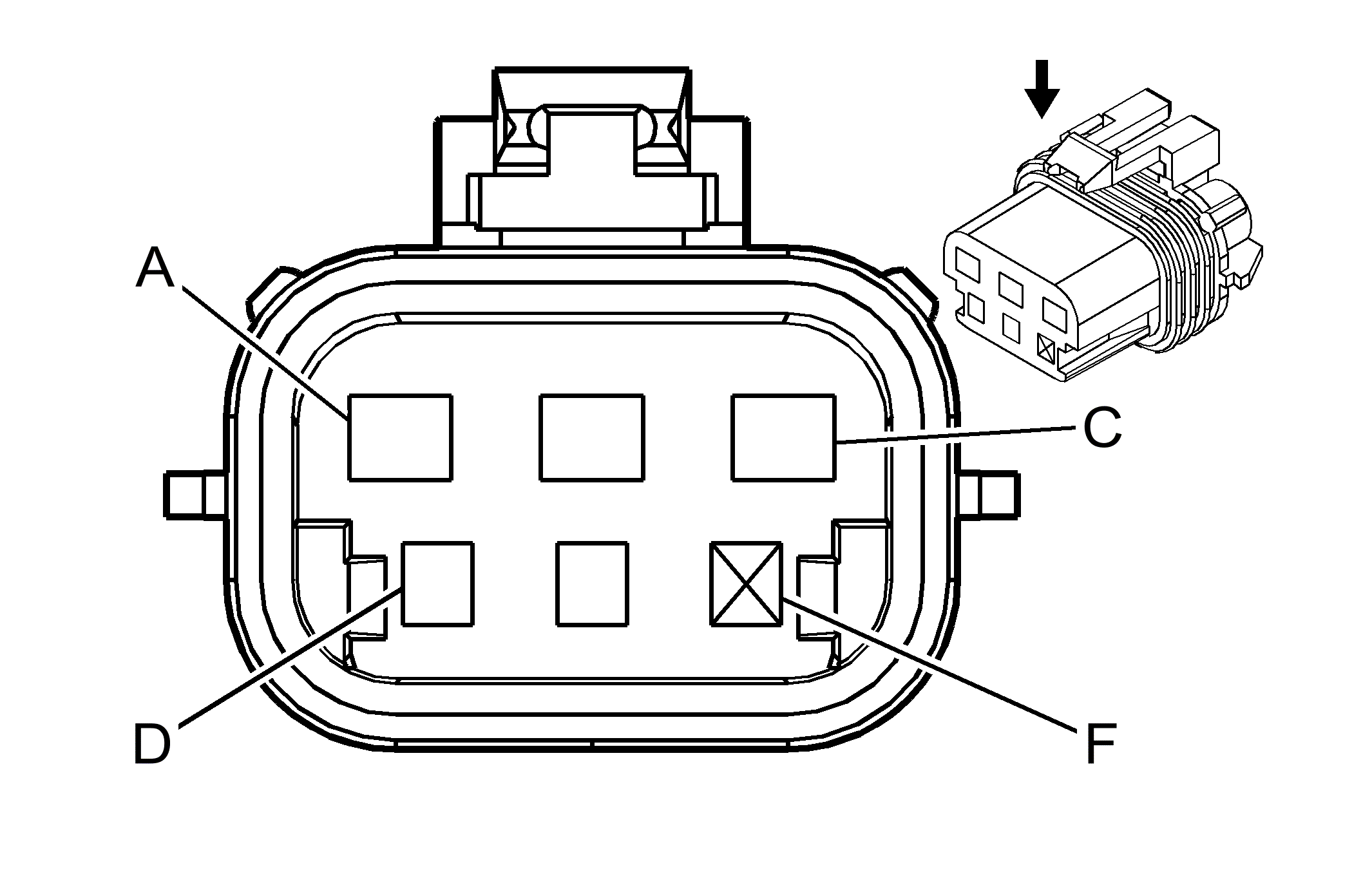

Windshield Wiper Motor Module Connector End View
Windshield Wiper Motor Module Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BLK | 550 | Ground |
| B | YEL | 143 | Accessory Voltage |
| C | PPL | 92 | Windshield Wiper Motor High Speed |
| D | DK GRN | 113 | Windshield Wiper Switch On Signal |
| E | GRY | 112 | Windshield Wiper Switch Low/Pulse Signal |
