Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control module on the shock tower mounting studs.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the cruise control module retaining nuts.

    Tighten

    Tighten the cruise control module to shock tower nuts to 2 N.m (18 lb in).

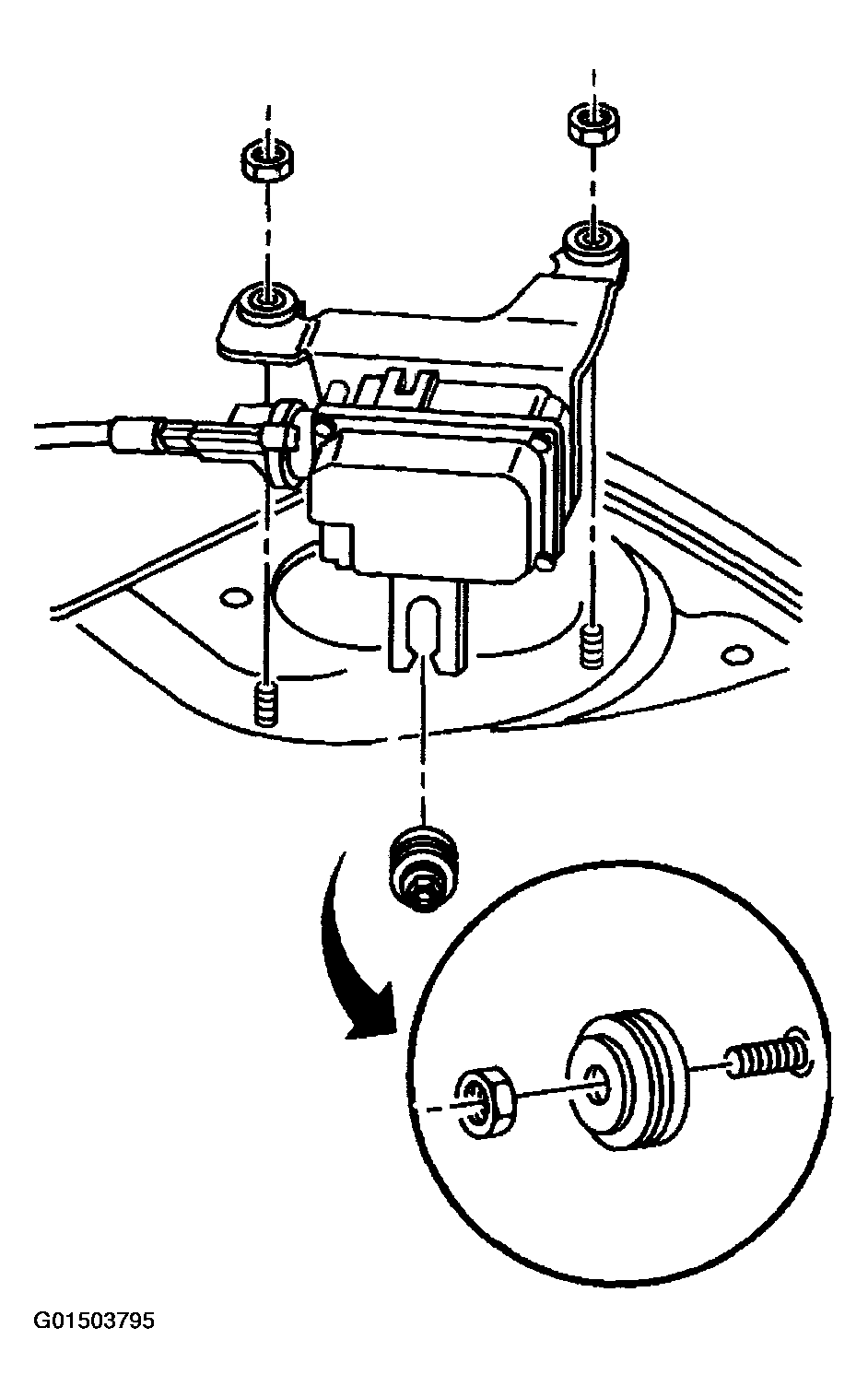

    Fig 1: Installing Cruise Control Module Retaining Nuts
    G01503795Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the cruise control module.
  4. Install the cruise control cable to the cruise control module. Refer to CRUISE CONTROL CABLE REPLACEMENT (3.1L)  or CRUISE CONTROL CABLE REPLACEMENT (3.8L)  .

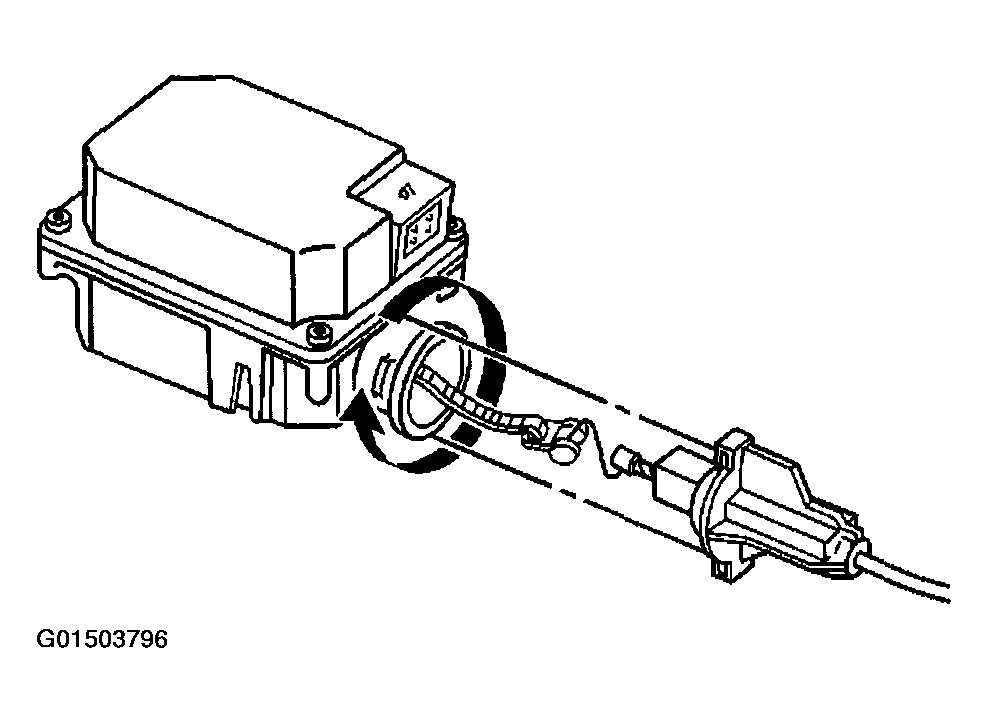

    Fig 2: Installing Cruise Control Cable To Cruise Control Module
    G01503796Courtesy of GENERAL MOTORS CORP.
