Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Important: The cruise control module is mounted to the left strut tower. Service the cruise control module as a complete unit.

Remove the cruise control cable from the cruise control module. Refer to CRUISE CONTROL CABLE REPLACEMENT (3.1L) or CRUISE CONTROL CABLE REPLACEMENT (3.8L) .
Disconnect the electrical connector from the cruise control module.

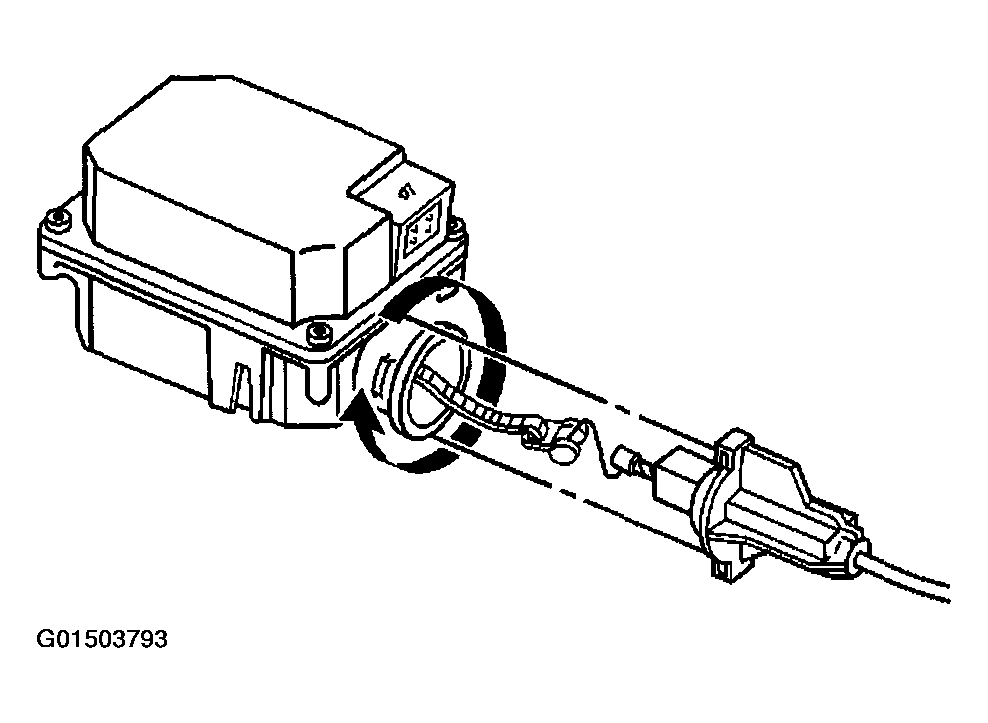

Fig 1: Removing Cruise Control Cable From Cruise Control Module
Courtesy of GENERAL MOTORS CORP.
Remove the cruise control module retaining nuts from the shock tower.

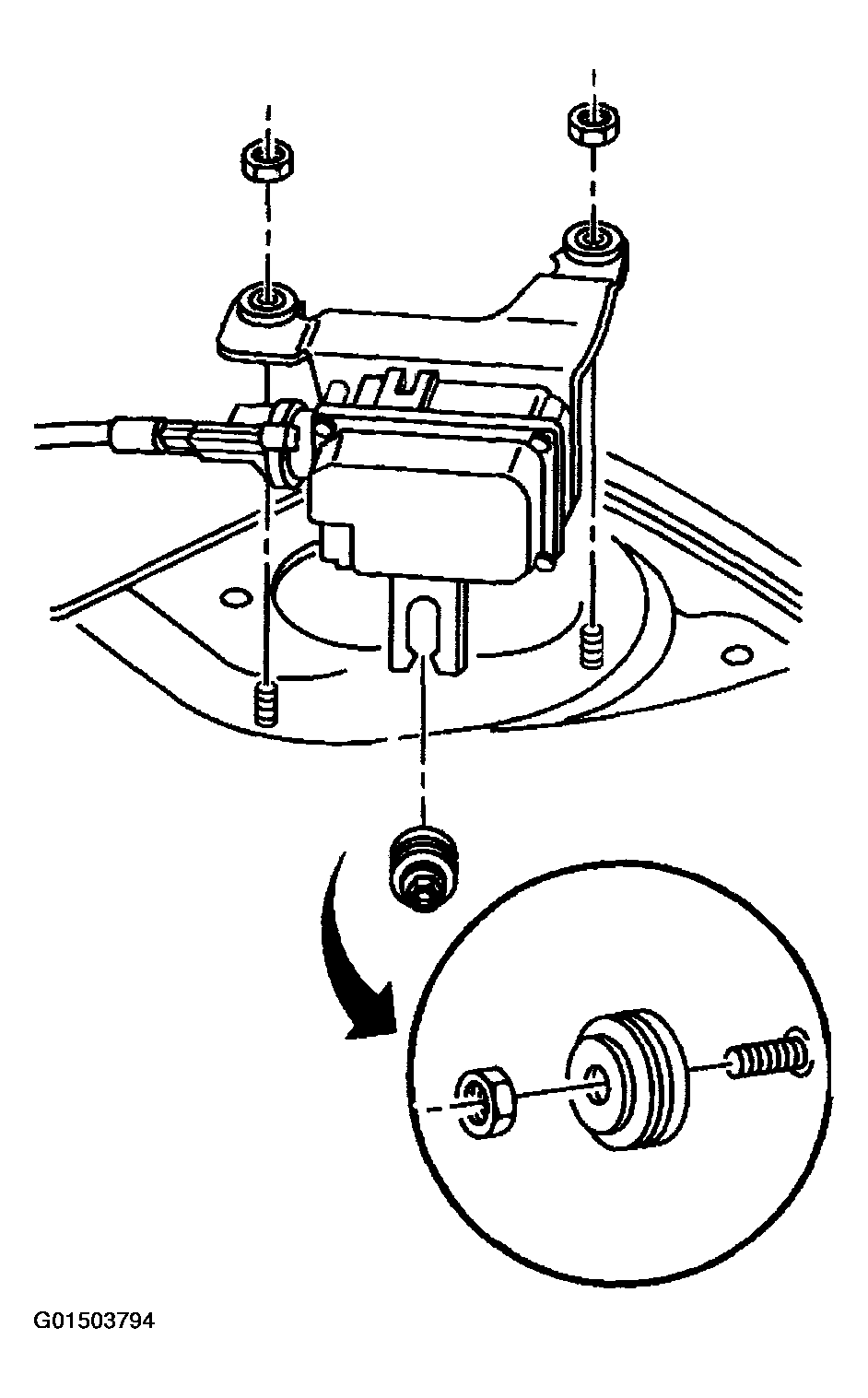

Fig 2: Removing Cruise Control Module Retaining Nuts From Shock Tower
Courtesy of GENERAL MOTORS CORP.
