LCD Display Segment Mode

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

The LCD Display Segment Mode is available to verify that all display segments are operating properly. Refer to Enter On Board Diagnostic Mode procedure prior to referencing this information. If any display segments are not displayed, replace the radio. Refer to Radio Replacement . Press the appropriate button to return to the OBD menu.

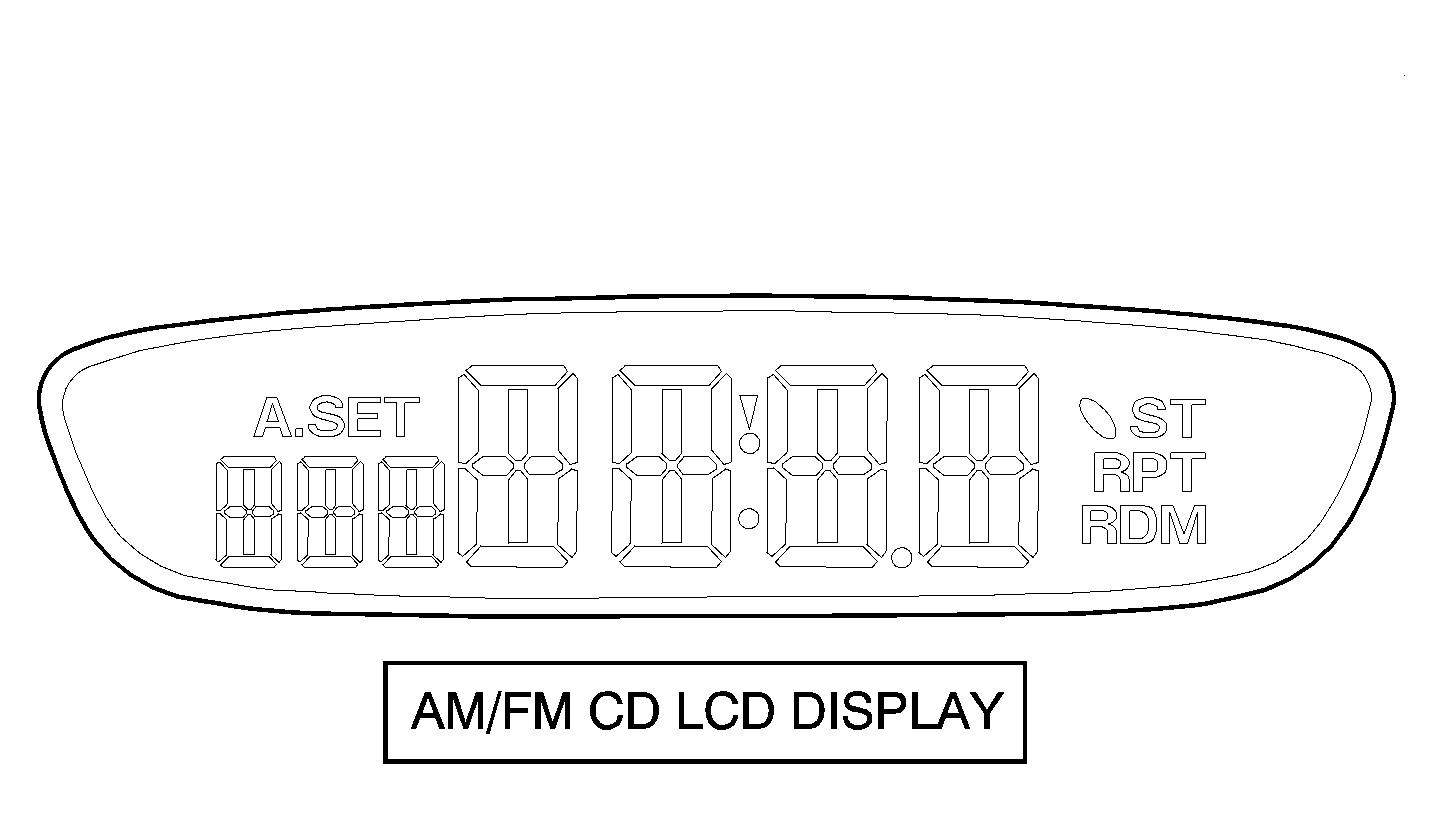

Fig 1: AM/FM CD LCD Display Segment
GM936220Courtesy of GENERAL MOTORS CORP.

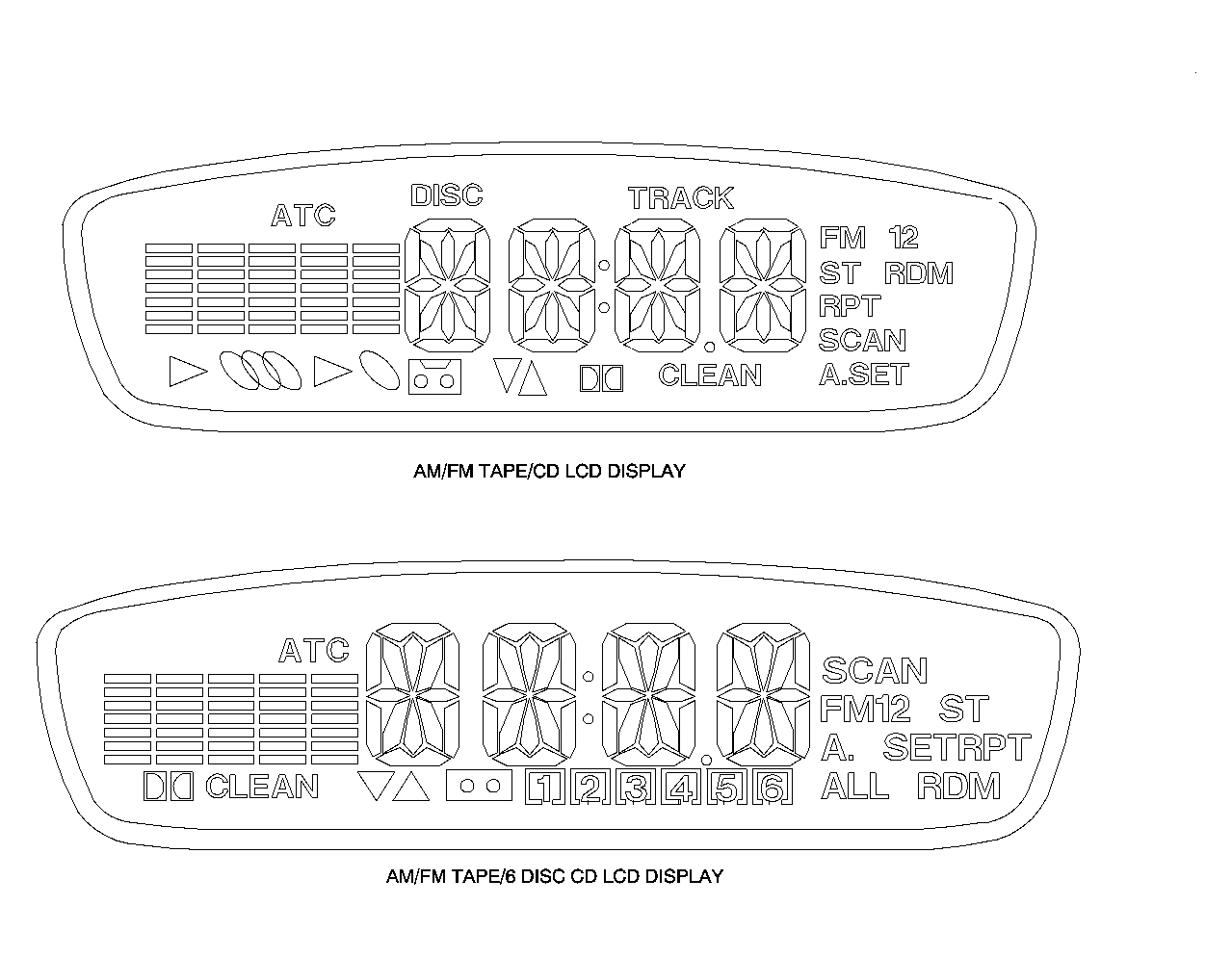

Fig 2: AM/FM Tape/CD & AM/FM Tape/6 CD Display Segments
GM934621Courtesy of GENERAL MOTORS CORP.
