Removal Procedure
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
- Open the hood.

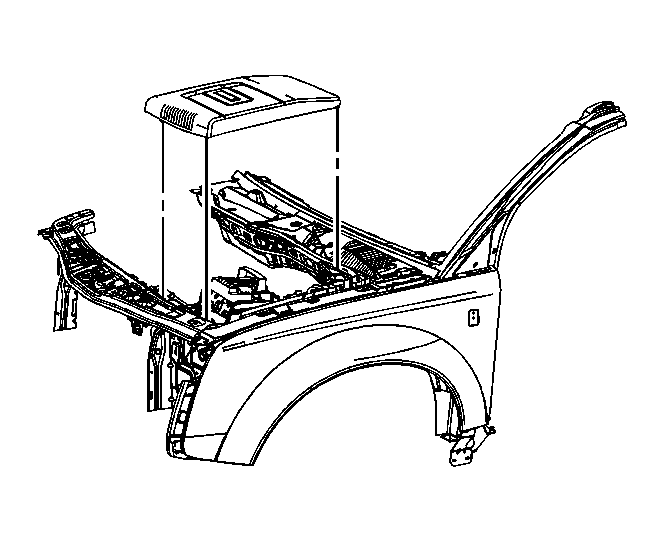

- Grasp the generator control module cover by the left and right front corners and lift up in order to disengage the cover from the ball studs.
- Lift up the rear of the generator control module in order to disengage the cover from the rear bracket.
- Remove the generator control module cover.
