Power Steering Pump Specifications

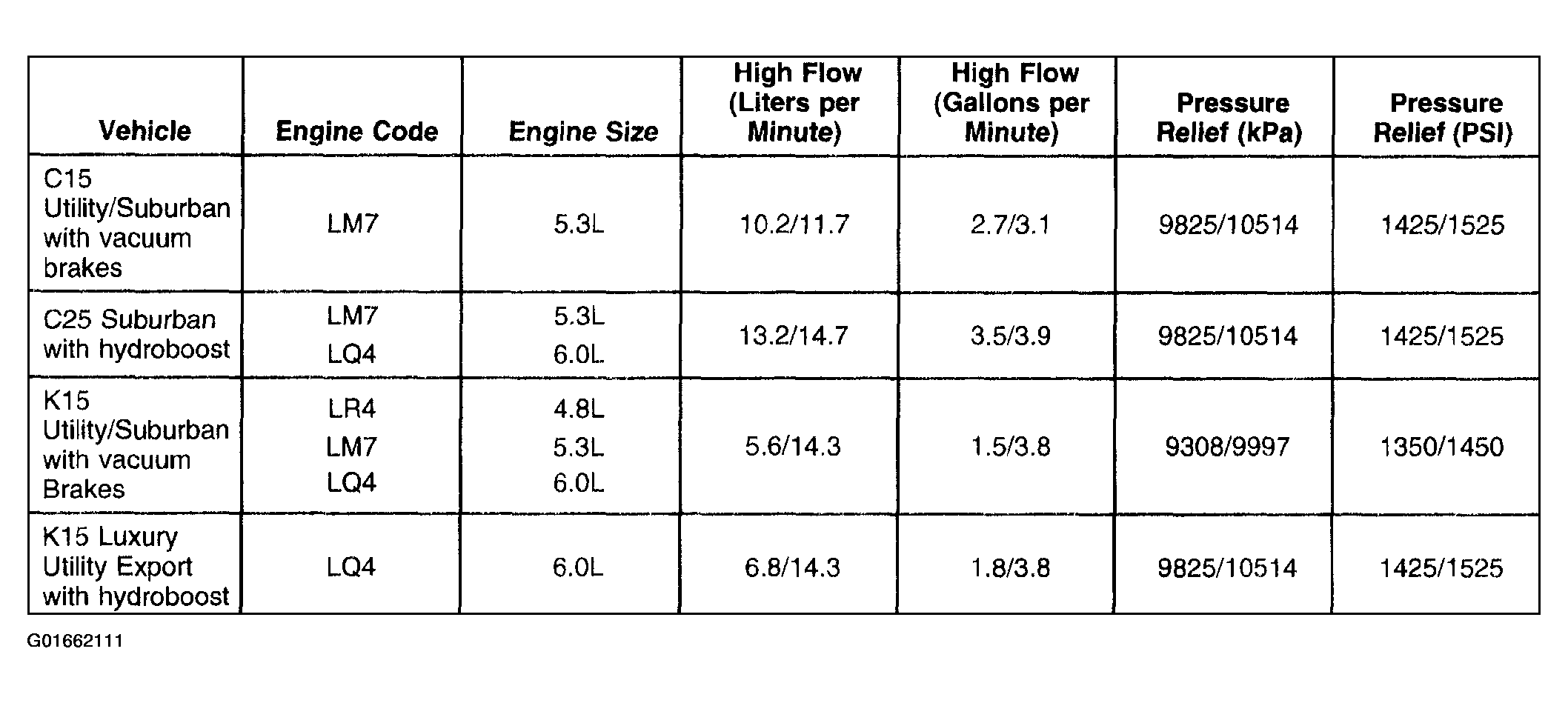

Fig 1: Identifying Power Steering Pump Specifications
G01662111Courtesy of GENERAL MOTORS CORP.
