Installation Procedure

  1. Align the traction control switch (2) to the console trim plate.
  2. Install the traction control switch mounting screws.
  3. Install the console trim plate (1). Refer to TRIM PLATE REPLACEMENT - CONSOLE .

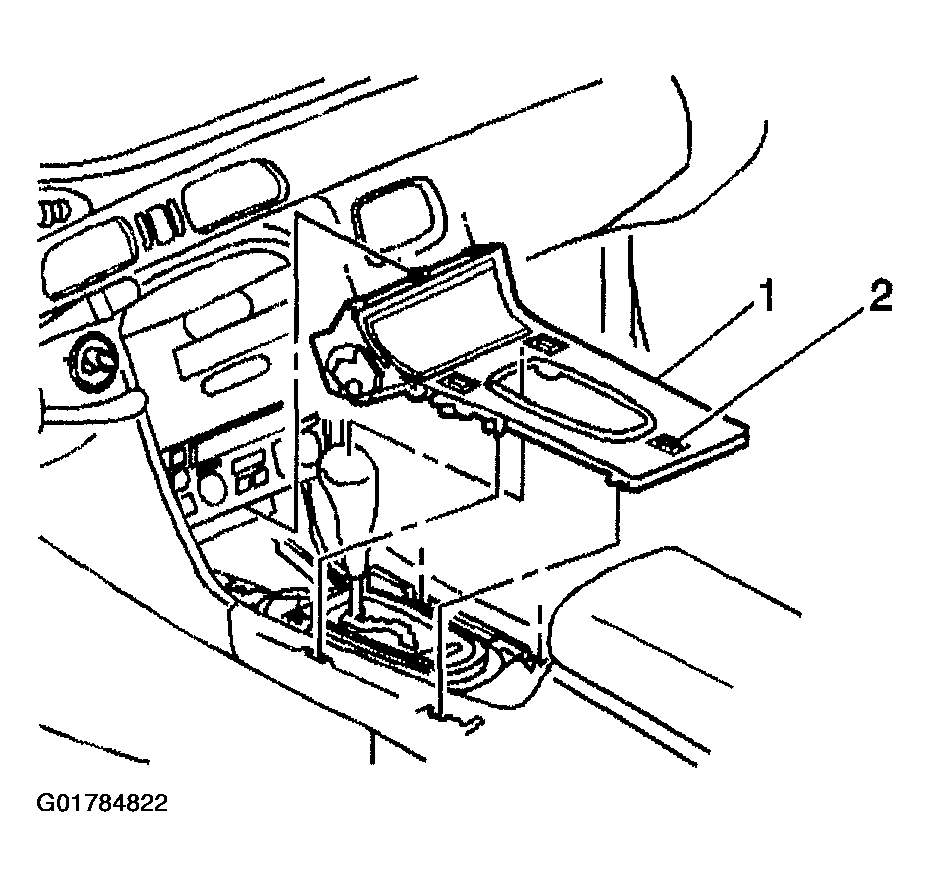

Fig 1: Installing Traction Control Switch
G01784822Courtesy of GENERAL MOTORS CORP.
