Automatic Transmission Shift Lock Control Connector End Views

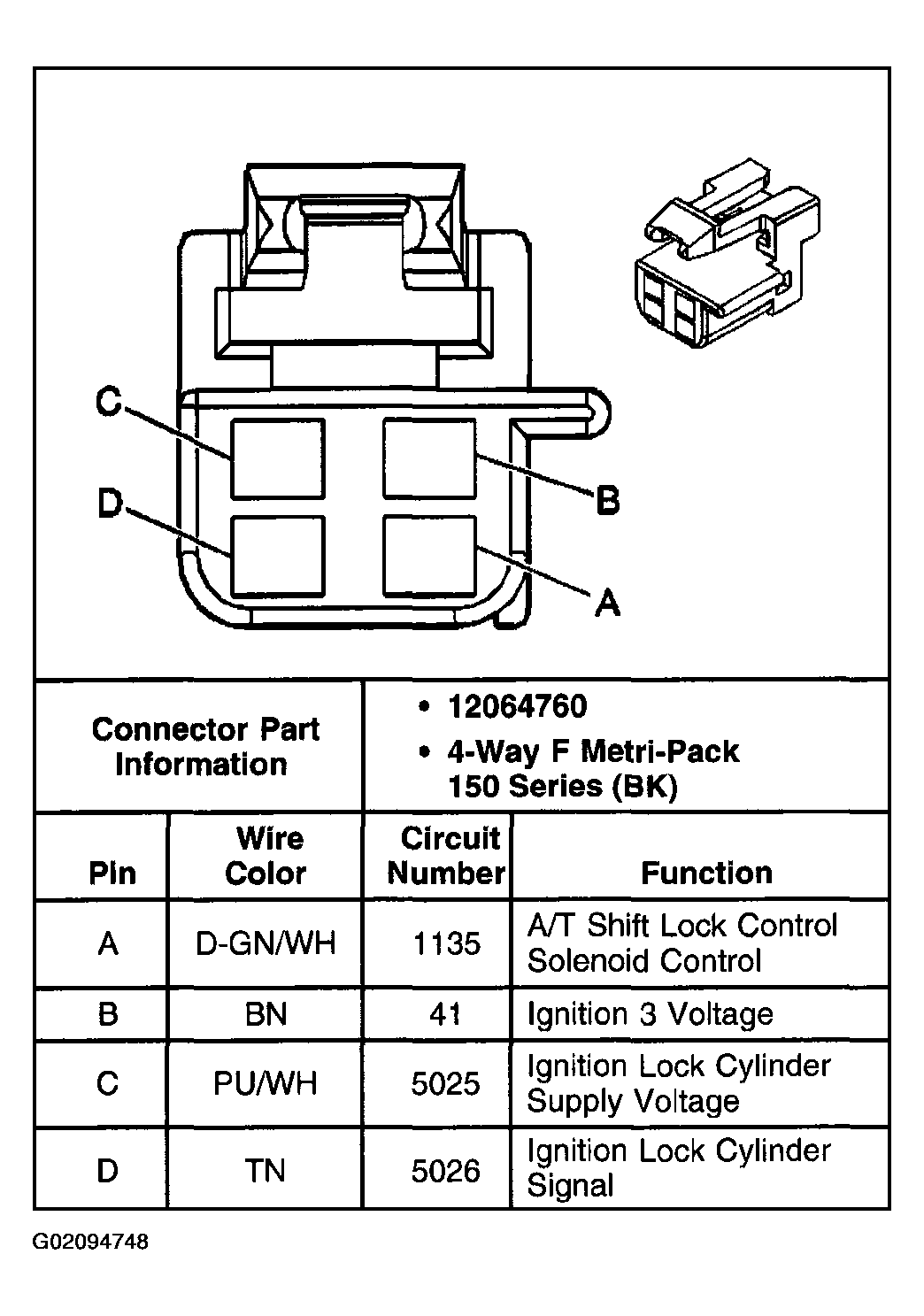

Fig 1: Shift Control Assembly Connector End View
G02094748Courtesy of GENERAL MOTORS CORP.
