Disassembled Views

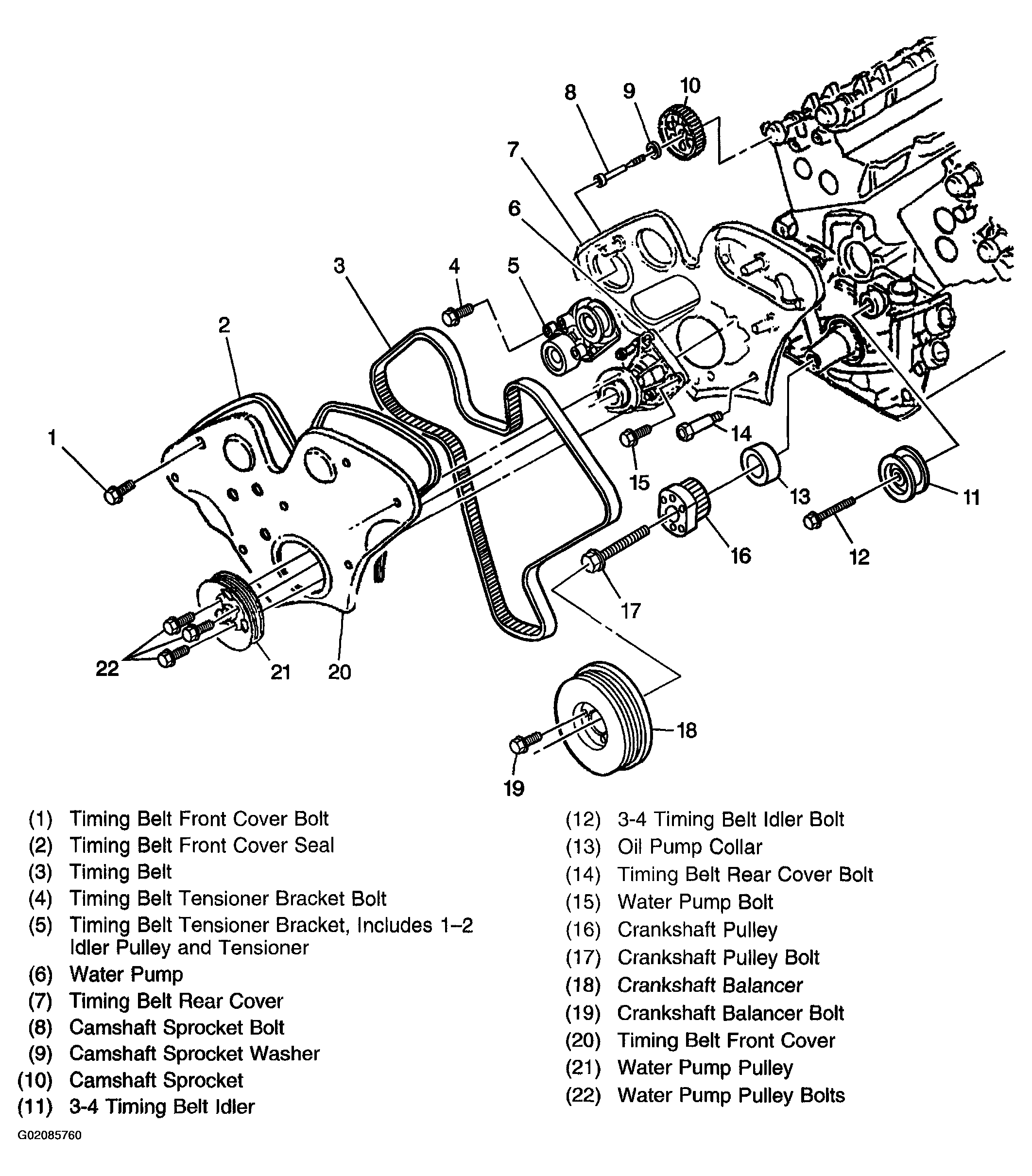

Fig 1: Disassembled View - Front Of Engine Components

Courtesy of GENERAL MOTORS CORP.

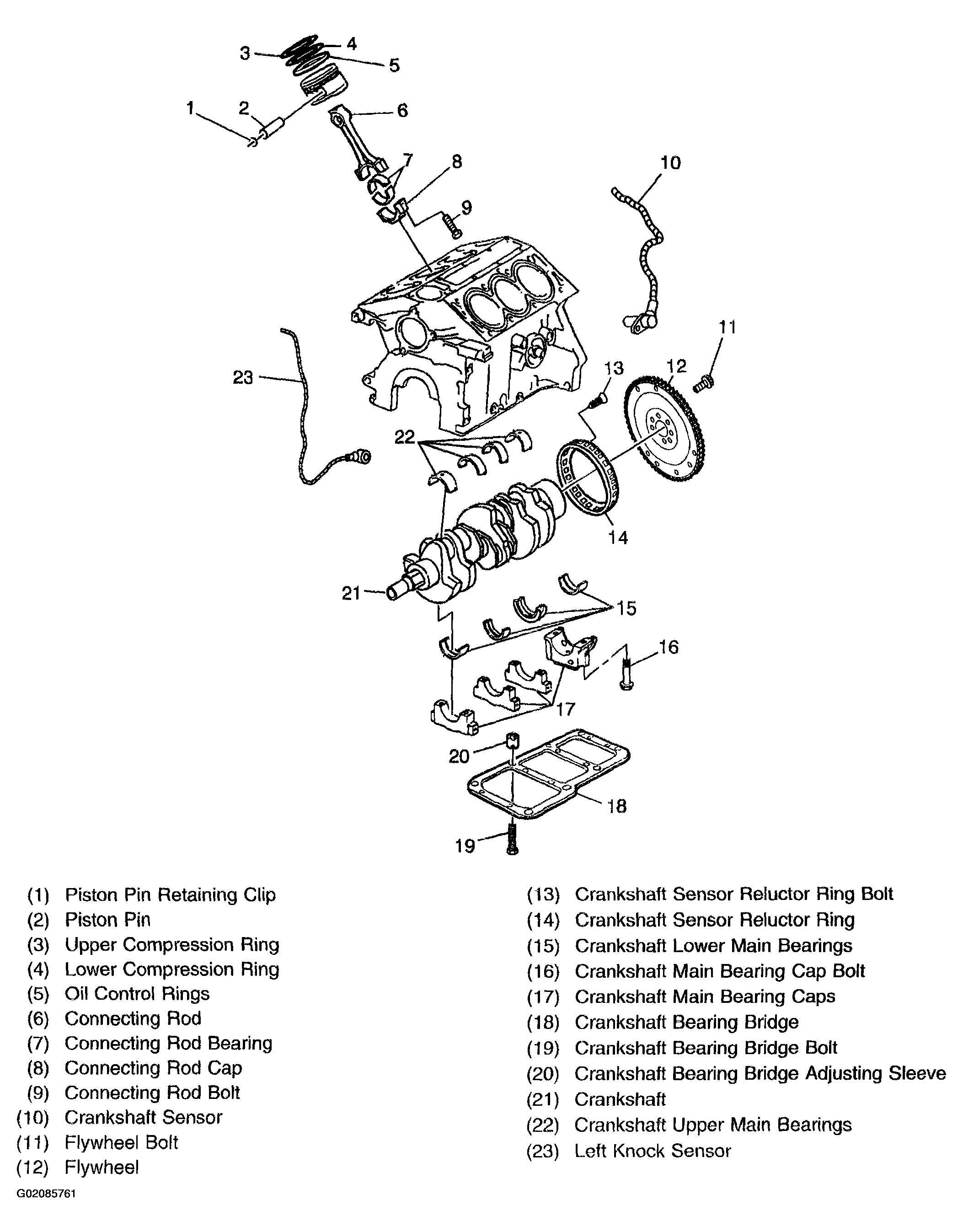

Fig 2: Disassembled View - Crankshaft/Pistons Components

Courtesy of GENERAL MOTORS CORP.

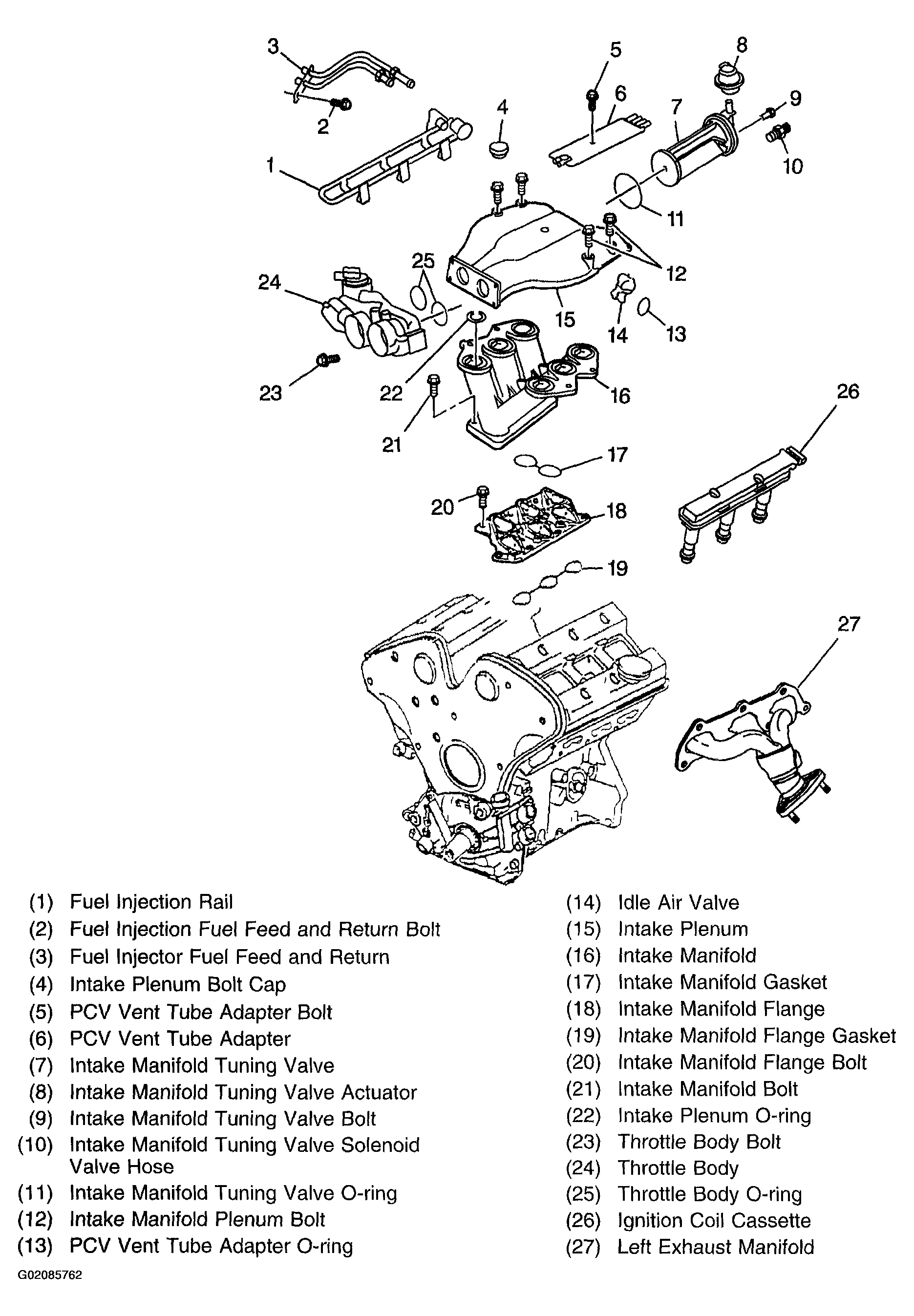

Fig 3: Disassembled View - Manifold & Related Components

Courtesy of GENERAL MOTORS CORP.

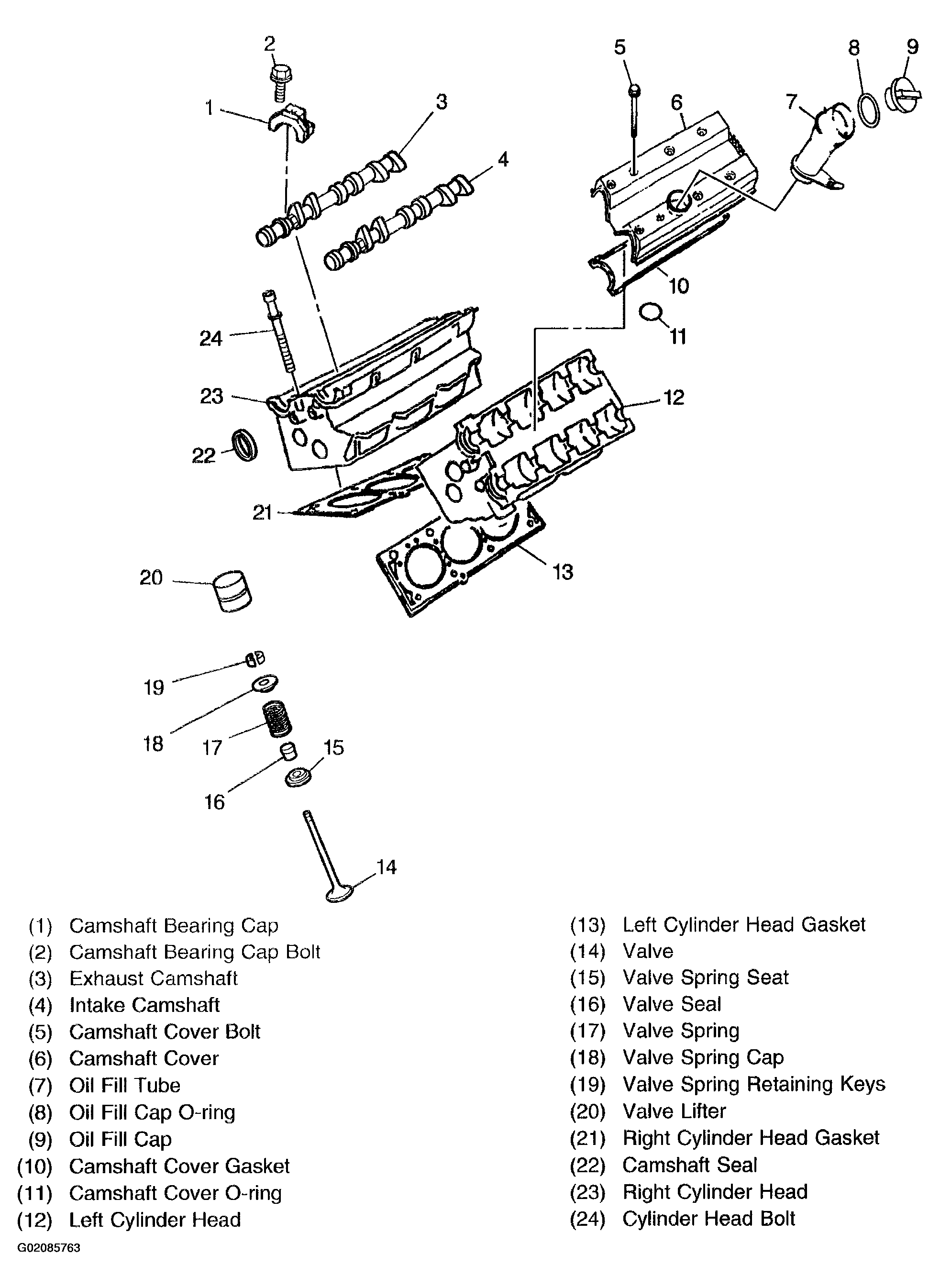

Fig 4: Disassembled View - Cylinder Head & Components

Courtesy of GENERAL MOTORS CORP.

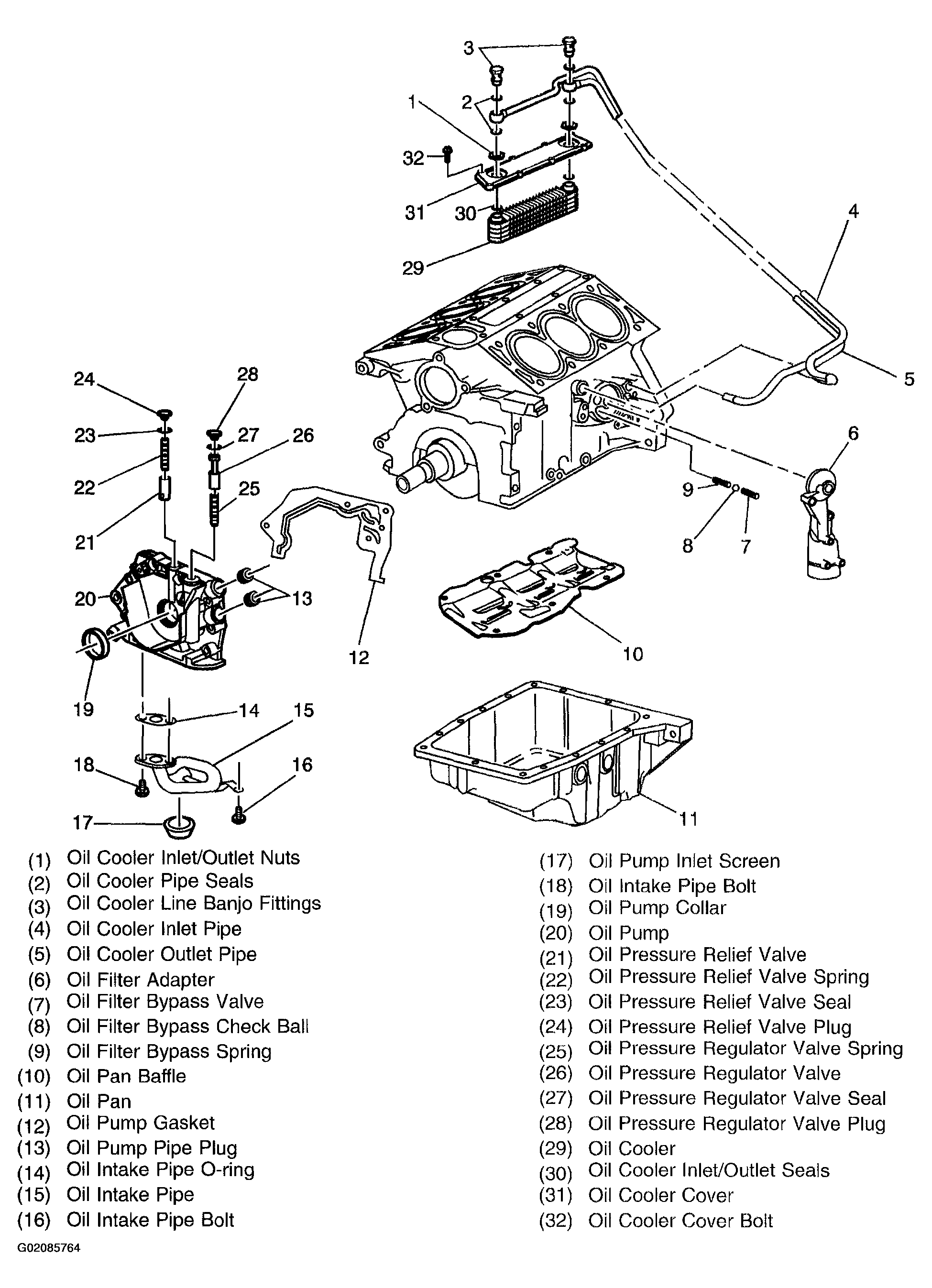

Fig 5: Disassembled View - Oil Pan & Delivery Components

Courtesy of GENERAL MOTORS CORP.
