Cellular Communication Component Views

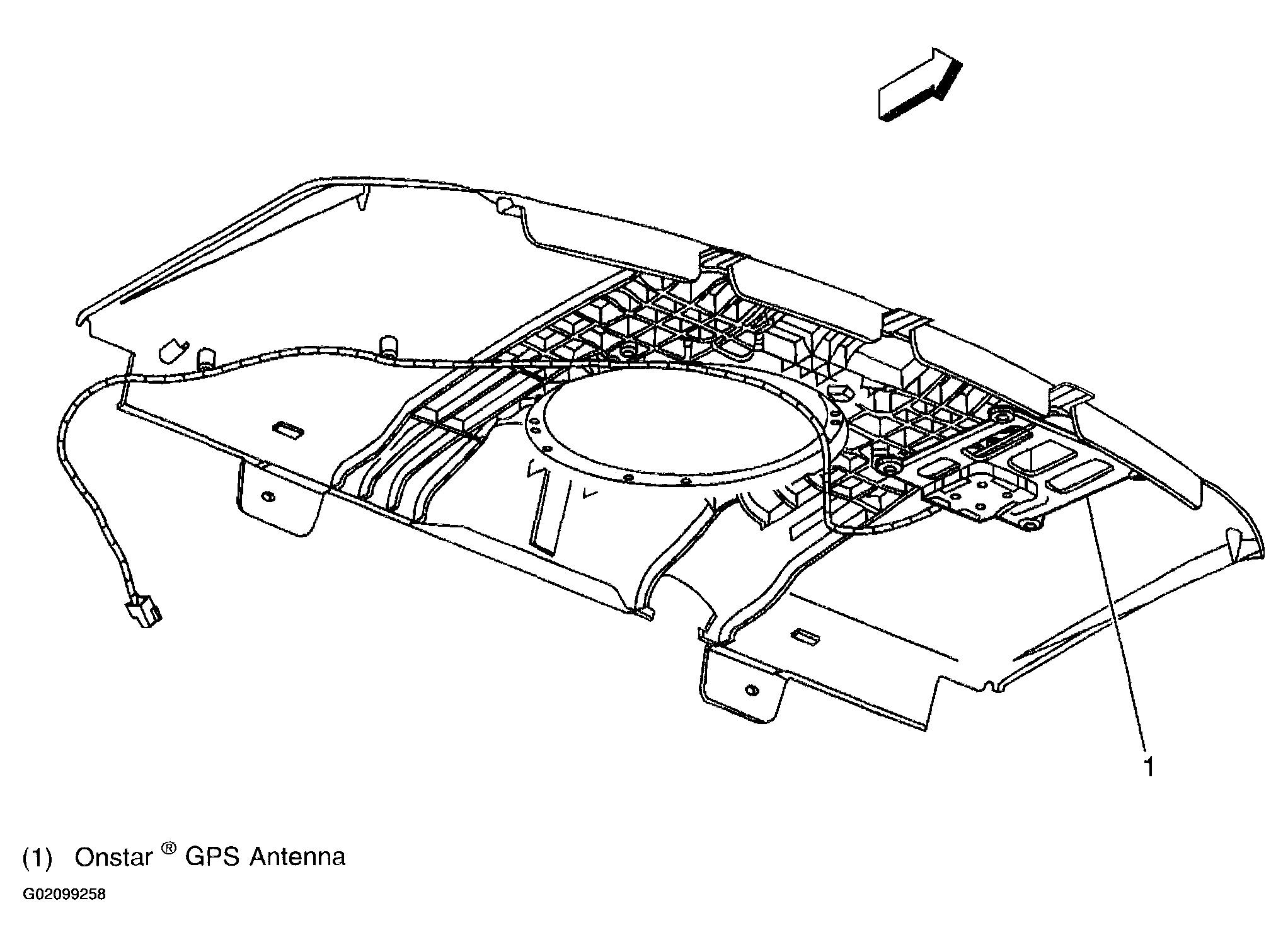

Fig 1: Component Location - Under Rear Compartment Shelf

Courtesy of GENERAL MOTORS CORP.

Fig 2: Component Location - Passenger Compartment, Center Front Of Headliner

Courtesy of GENERAL MOTORS CORP.

Fig 3: Component Location - Right Rear Corner Of Passenger Compartment, Above Rear Shelf

Courtesy of GENERAL MOTORS CORP.

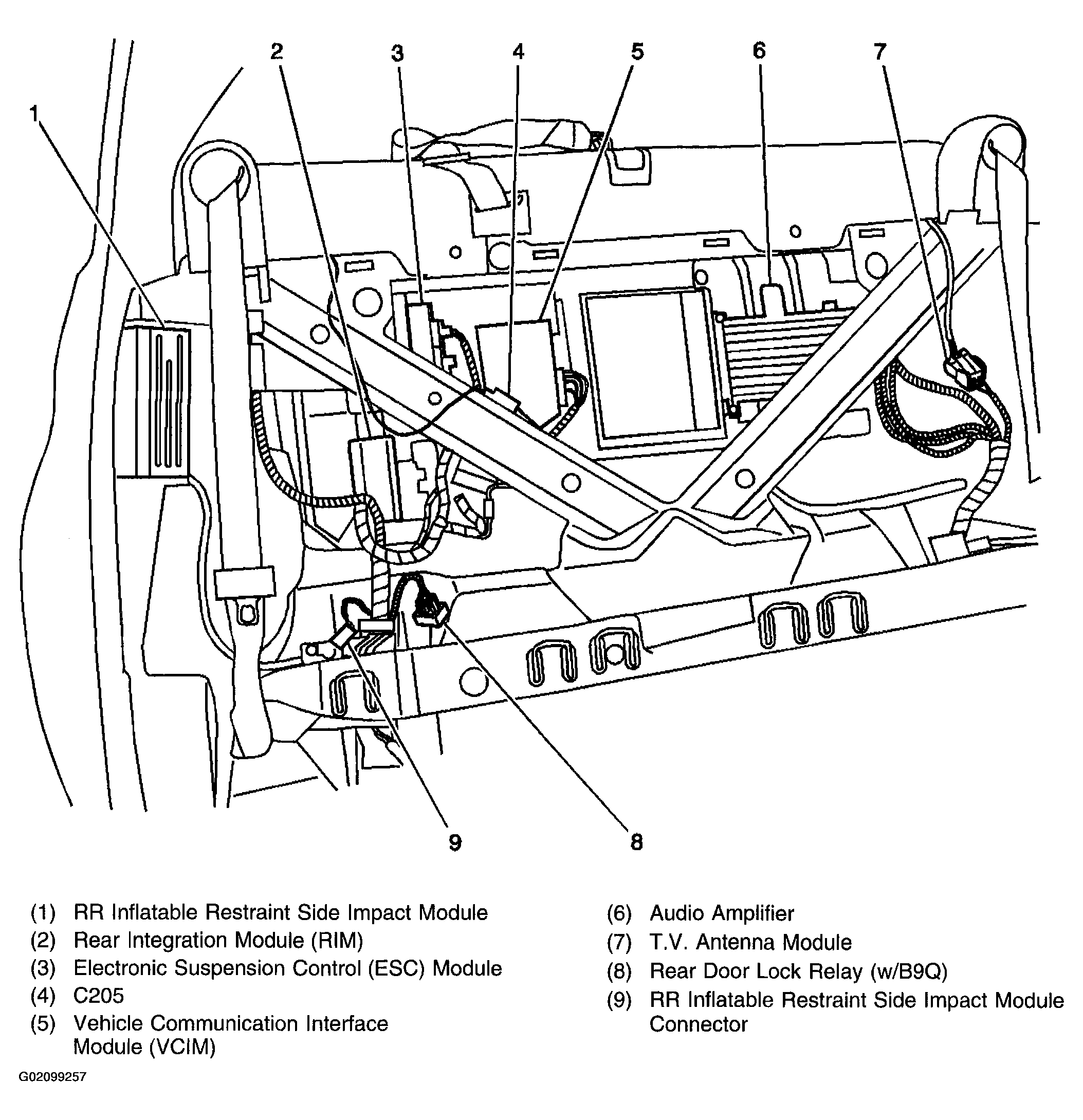

Fig 4: Component Location - Behind Rear Seat Back

Courtesy of GENERAL MOTORS CORP.

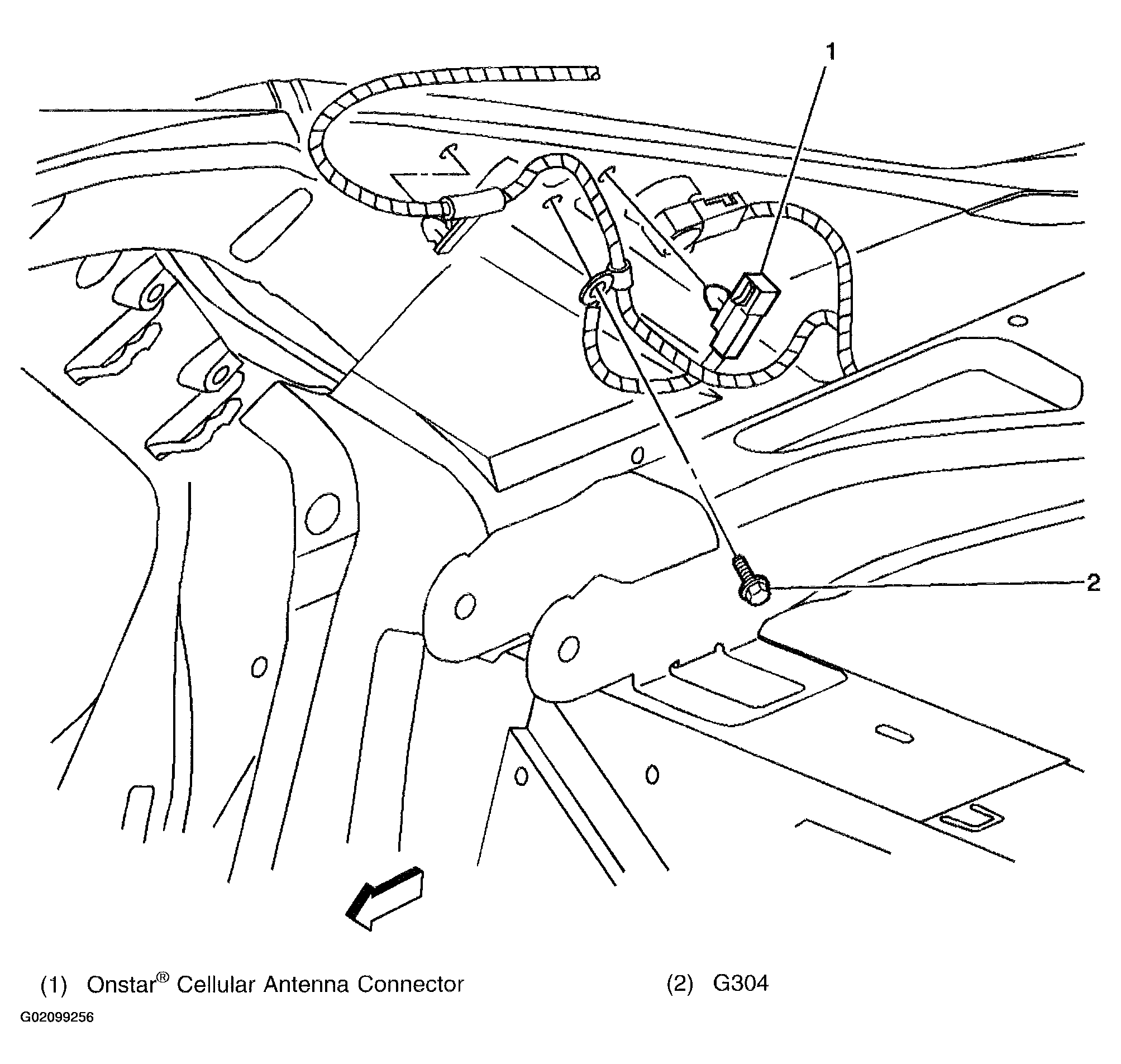

Fig 5: Component Location - Front Of Rear Compartment, Under Rear Shelf

Courtesy of GENERAL MOTORS CORP.
