Removal Procedure

  1. Remove the rear compartment trim. Refer to COMPARTMENT FRONT TRIM PANEL REPLACEMENT - REAR
  2. Disconnect the electrical connector from the remote control door lock receiver.
  3. Remove the remote control door lock receiver (1) from the vehicle.

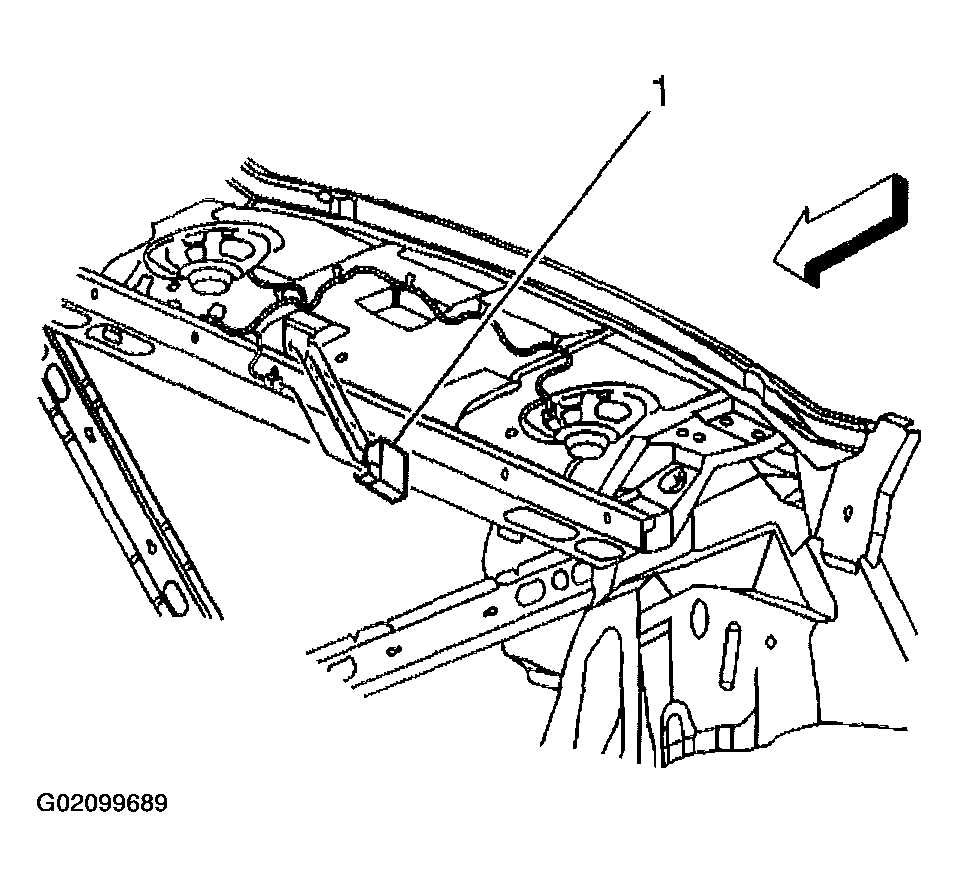

    Fig 1: Removing Remote Control Door Lock Receiver
    G02099689Courtesy of GENERAL MOTORS CORP.
