Installation Procedure

  1. Install the battery (2) with the positive (+) side up.
  2. Align both halves (1, 3) of the transmitter.

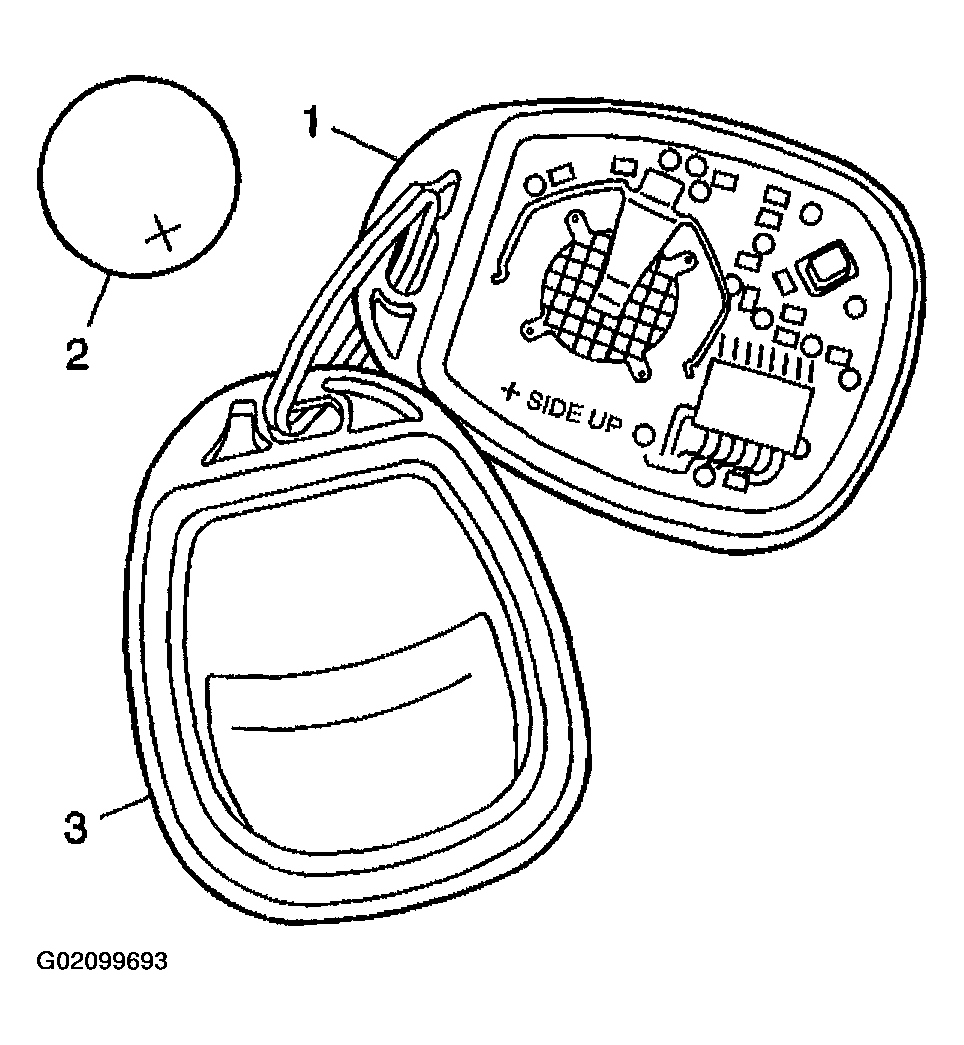

    Fig 1: Installing Battery With Positive (+) Side Up
    G02099693Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the seal is positioned correctly.
  4. Close the transmitter case.
  5. Synchronize the transmitter. Refer to TRANSMITTER PROGRAMMING  .

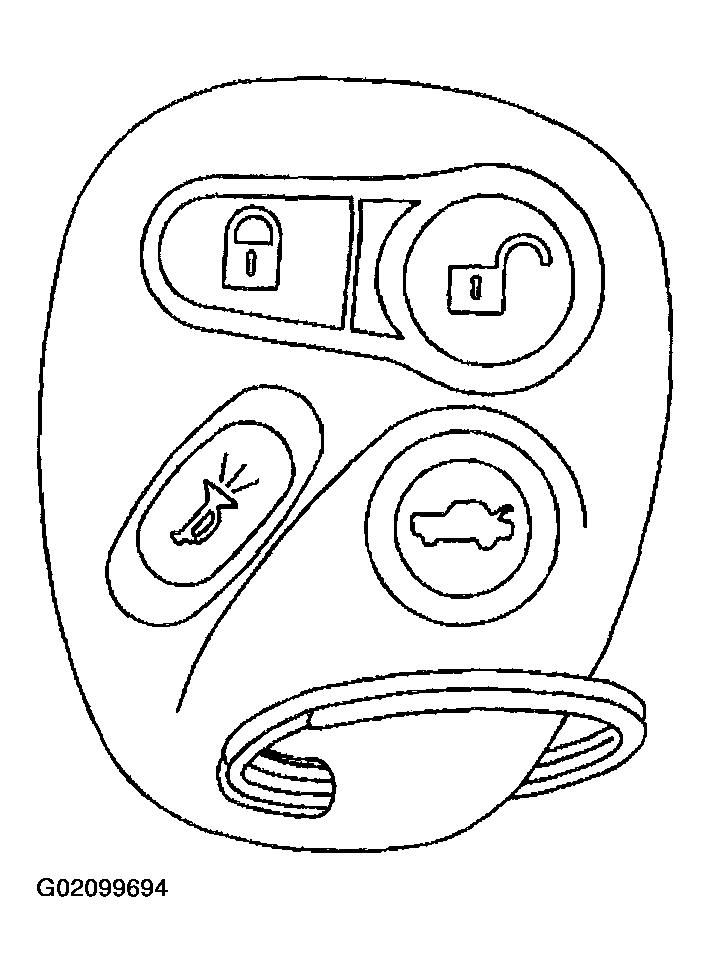

    Fig 2: View Of Keyless Entry Transmitter
    G02099694Courtesy of GENERAL MOTORS CORP.
