Engine Electrical Component Views

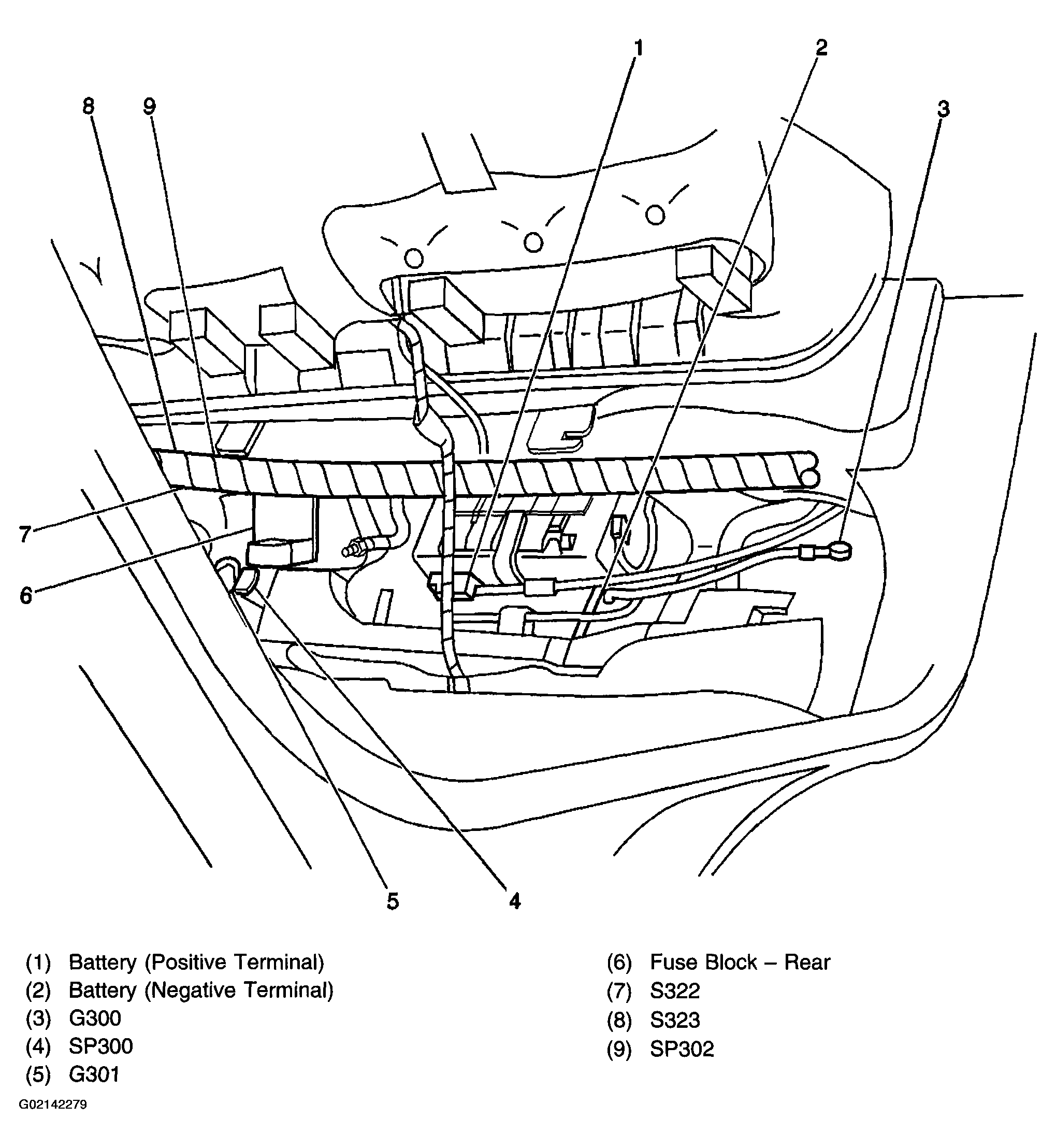

Fig 1: Identifying Right Rear Of The Passenger Compartment, Under The Rear Seat
G02142279Courtesy of GENERAL MOTORS CORP.
