Lock System Does Not Unlock

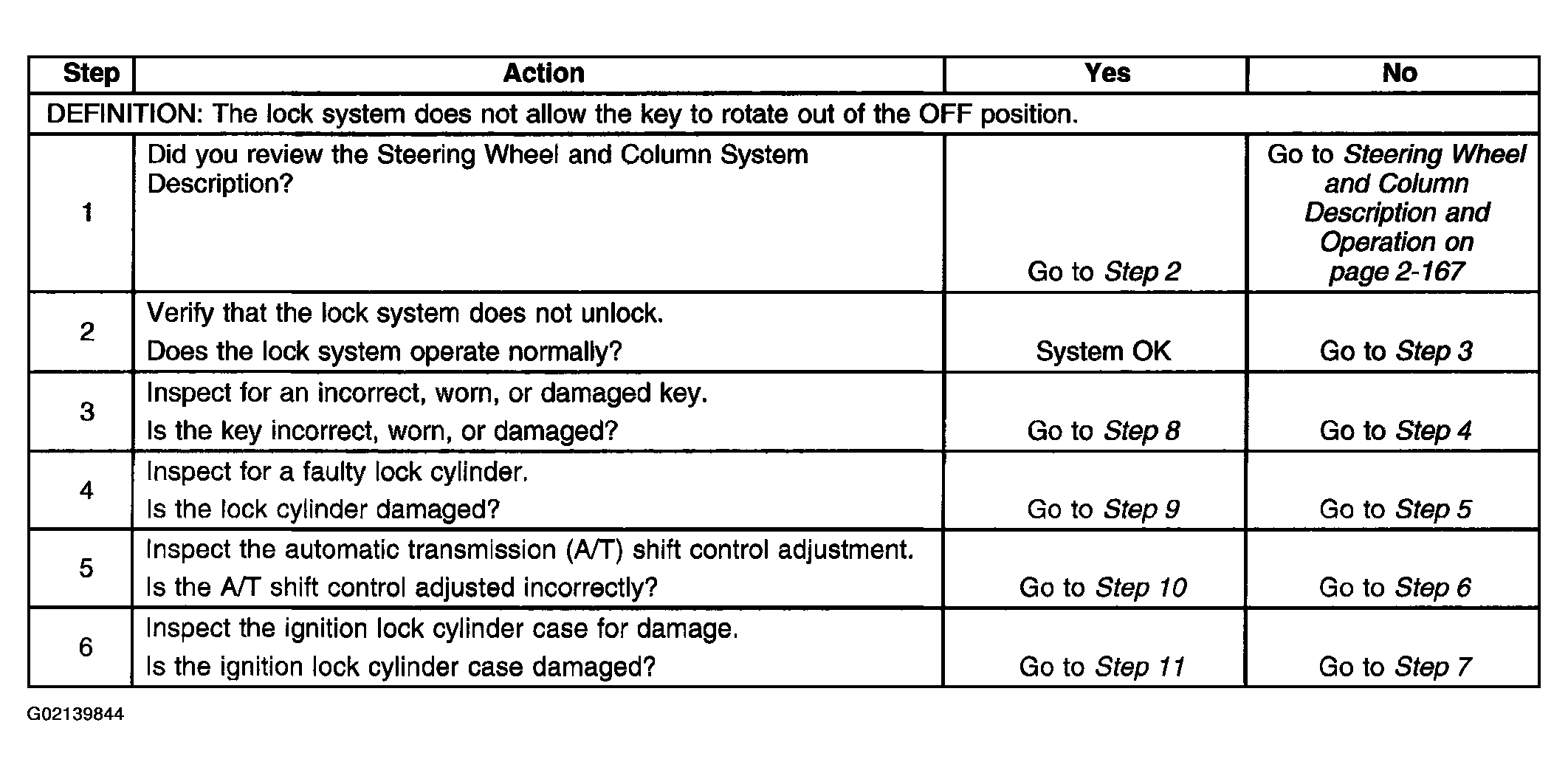

Fig 1: Diagnostic System Check - Lock System Does Not Unlock (Steps 1 - 6)
G02139844Courtesy of GENERAL MOTORS CORP.

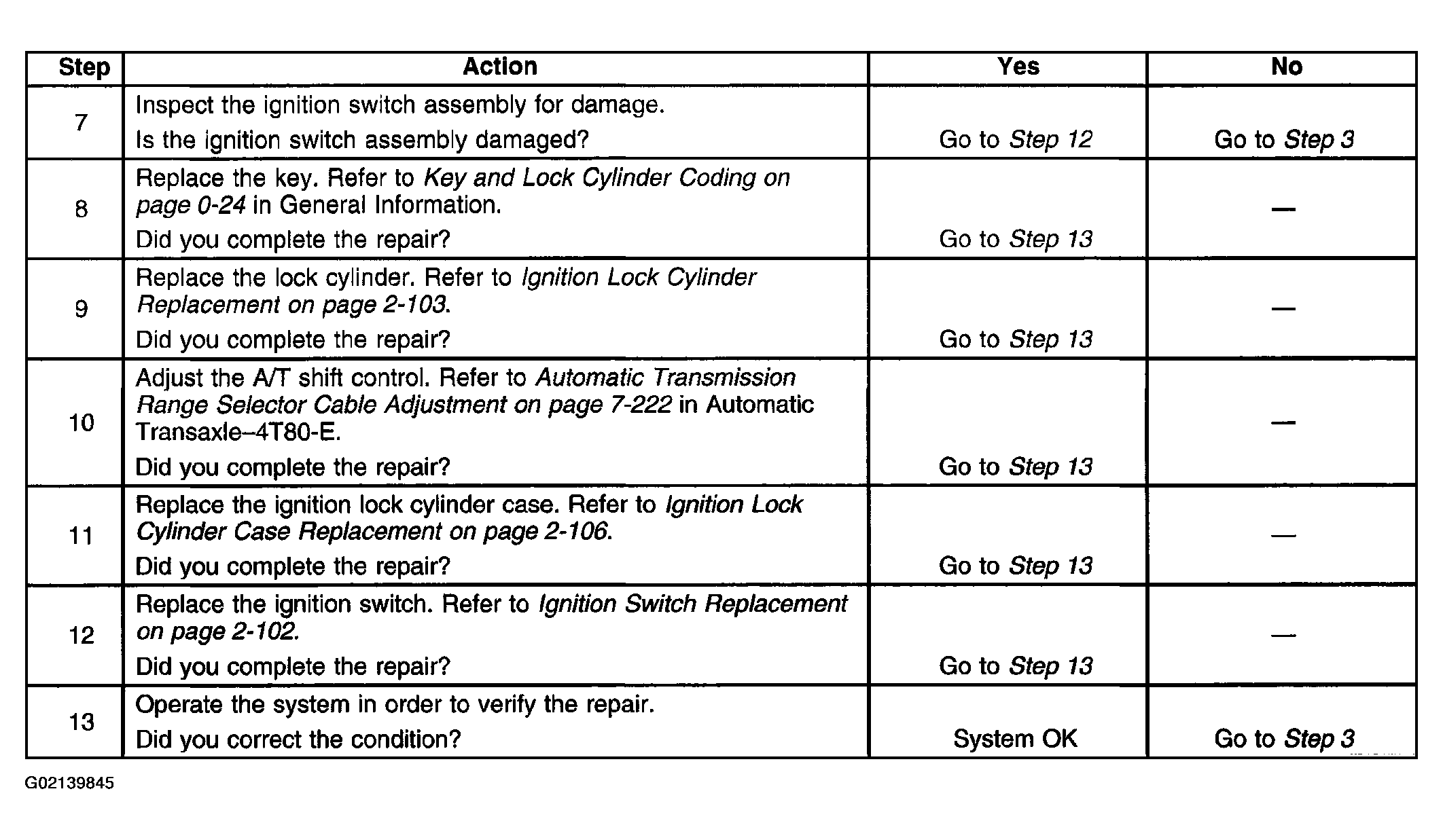

Fig 2: Diagnostic System Check - Lock System Does Not Unlock (Steps 7 - 13)
G02139845Courtesy of GENERAL MOTORS CORP.
