Installation Procedure

  1. Install the black end of the tilt cable assembly to the steering column.
  2. Install the white end of the tilt cable assembly to the tilt drive motor assembly.

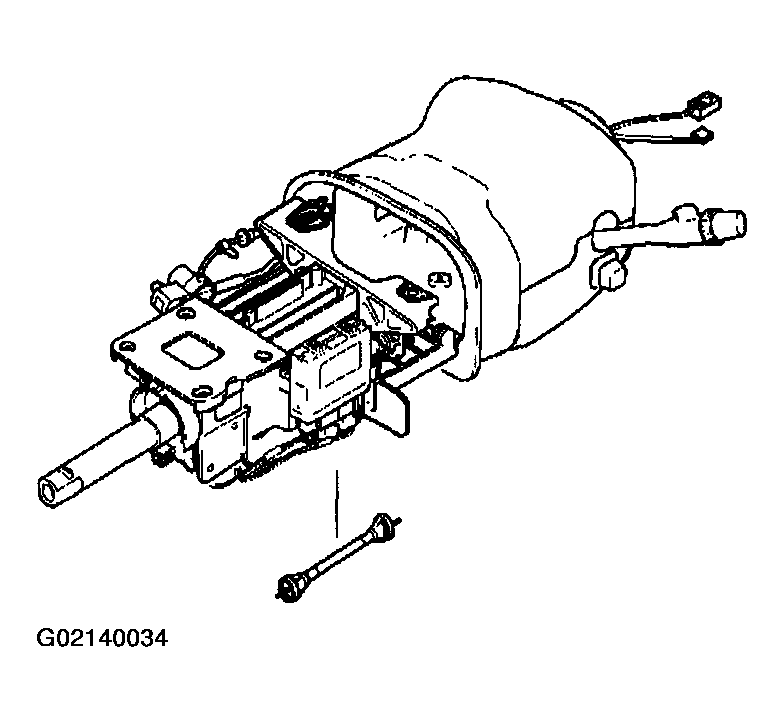

    Fig 1: Installing Tilt Cable Assembly
    G02140034Courtesy of GENERAL MOTORS CORP.
  3. Snap on the potentiometer housing. (1).
  4. Install the tilt drive motor assembly (2) to the steering column.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install 2 TORX® head screws (3).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

    CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION in Cautions and Notices.
  6. Connect the connectors of the tilt drive motor assembly (2).
  7. Install the steering column into the vehicle. Refer to STEERING COLUMN REPLACEMENT (FLOOR SHIFT)  or STEERING COLUMN REPLACEMENT (COLUMN SHIFT)  .

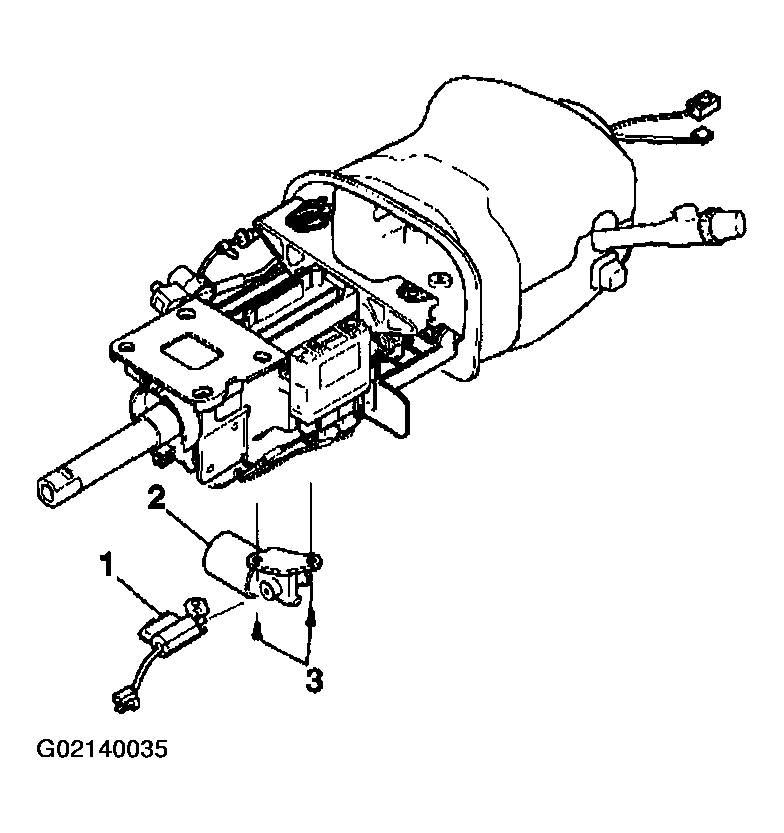

    Fig 2: Installing Tilt Drive Motor Assembly
    G02140035Courtesy of GENERAL MOTORS CORP.
  8. Install the steering wheel onto the steering column. Refer to STEERING WHEEL REPLACEMENT  .
  9. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
