Steering Wheel Speed/Position Sensor Connector End View (1 Of 2)

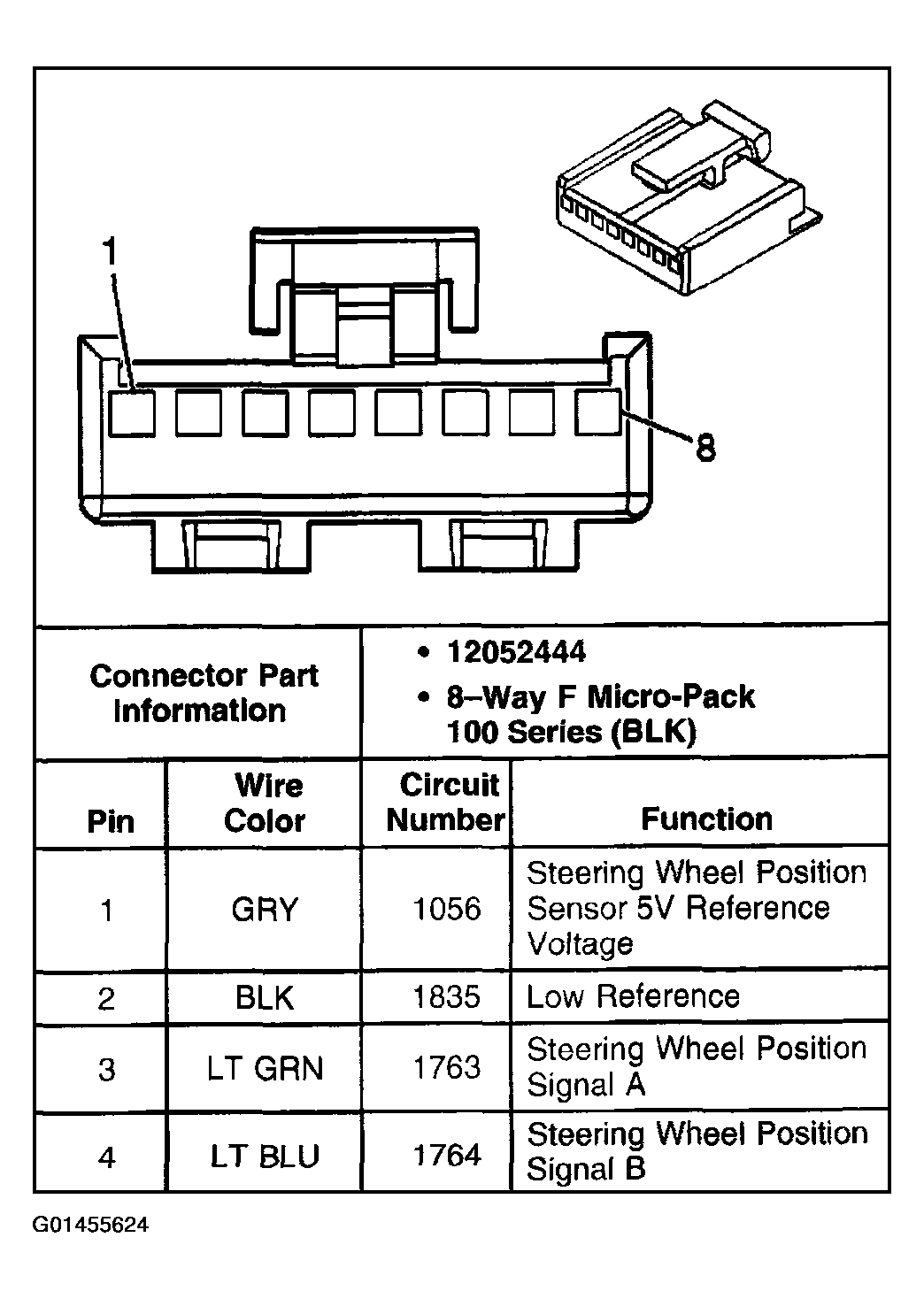

Fig 1: Steering Wheel Speed/Position Sensor Connector End View (1 Of 2)
G01455624Courtesy of GENERAL MOTORS CORP.
