Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Open and support the cargo door.
CAUTION: Refer to LIFTGATE ASSIST ROD NOTICE .
Using a flat bladed tool pry the retainer clip away from the ball stud socket.

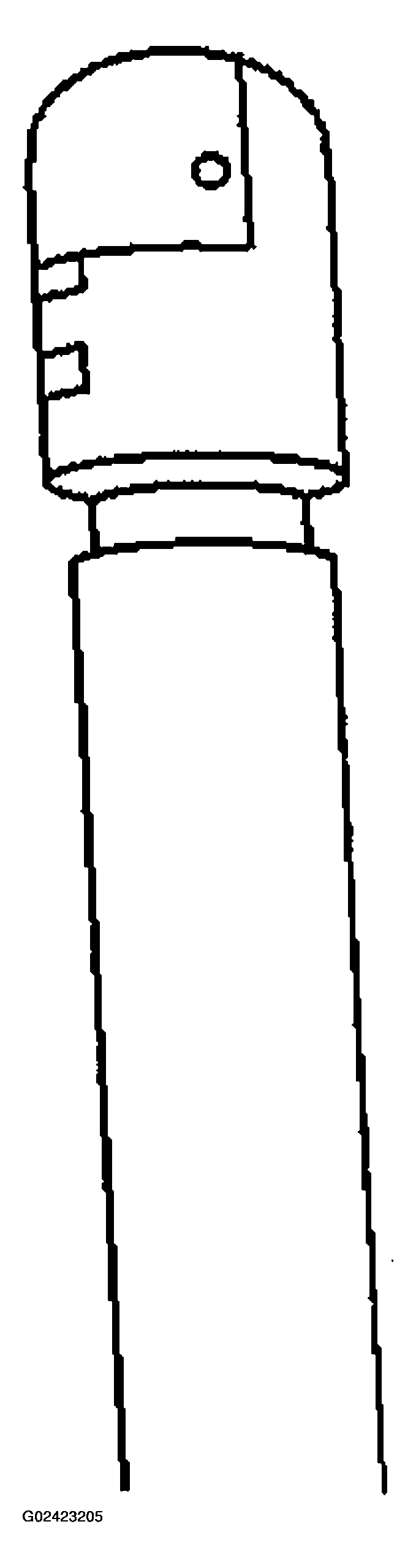

Fig 1: Removing Retainer Clip From Ball Stud Socket
Courtesy of GENERAL MOTORS CORP.
Remove the upper end of the assist rods from the ball stud.

Fig 2: Removing Upper End Of Assist Rods From Ball Stud
Courtesy of GENERAL MOTORS CORP.
Remove the lower end of the assist rods from the ball stud.
Remove the assist rods from the cargo door.

Fig 3: Removing Lower End Of Assist Rods From Ball Stud
Courtesy of GENERAL MOTORS CORP.
Remove ball stud bolts.
Remove ball stud bracket.

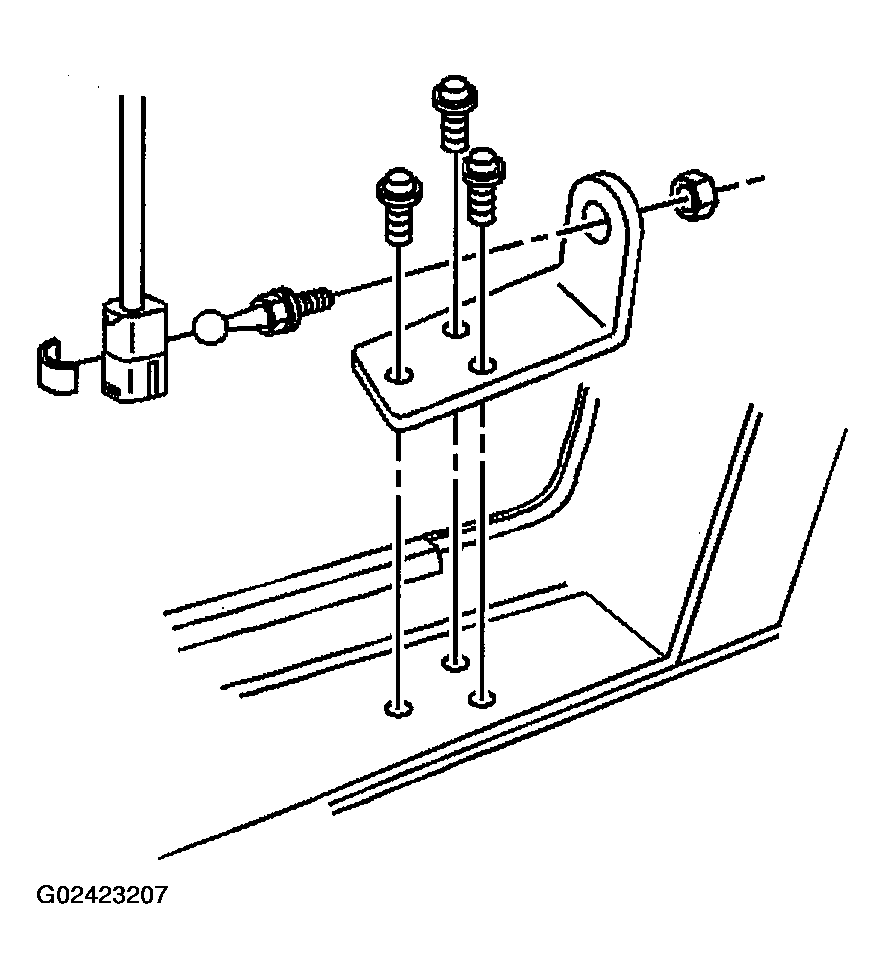

Fig 4: Removing Ball Stud Bolts & Bracket
Courtesy of GENERAL MOTORS CORP.
