Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Trim Panel. Refer to TRIM REPLACEMENT - HINGE PILLAR .
  2. Disconnect the electrical connectors in the hinge pillar for the door wire harness.
  3. Push the rubber conduit out from the hinge pillar in order to remove the rubber conduit from the hinge pillar.
  4. Remove the wire harness from the hinge pillar.
  5. Remove the check link from the hinge pillar. Refer to Door Check Link Replacement - Front .
  6. Remove the hinge pins (2) from the door. Refer to Door Hinge Pin And Bushing Replacement - Front Door .
  7. With an assistant, remove the door from the vehicle.

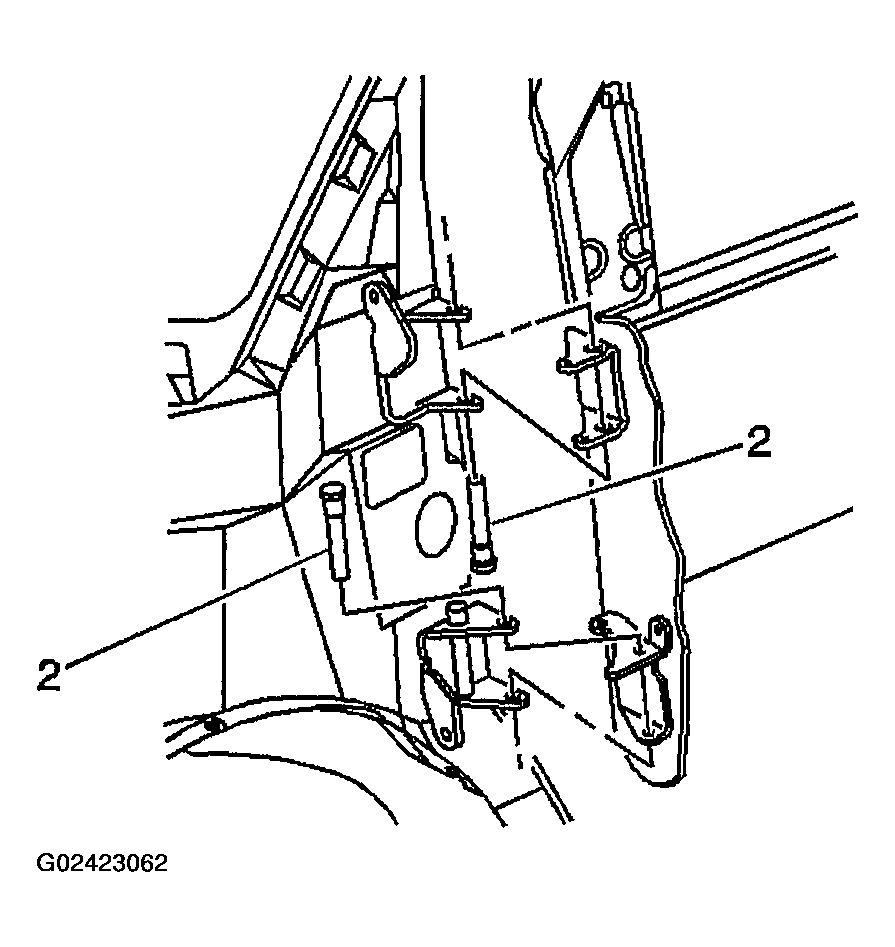

    Fig 1: Removing Front Door
    G02423062Courtesy of GENERAL MOTORS CORP.
