Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower striker (1) to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the bolts (2) that retain the lower striker (1) to the stepwell.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  3. Install the side door stepwell mat. Refer to MAT REPLACEMENT - STEPWELL .

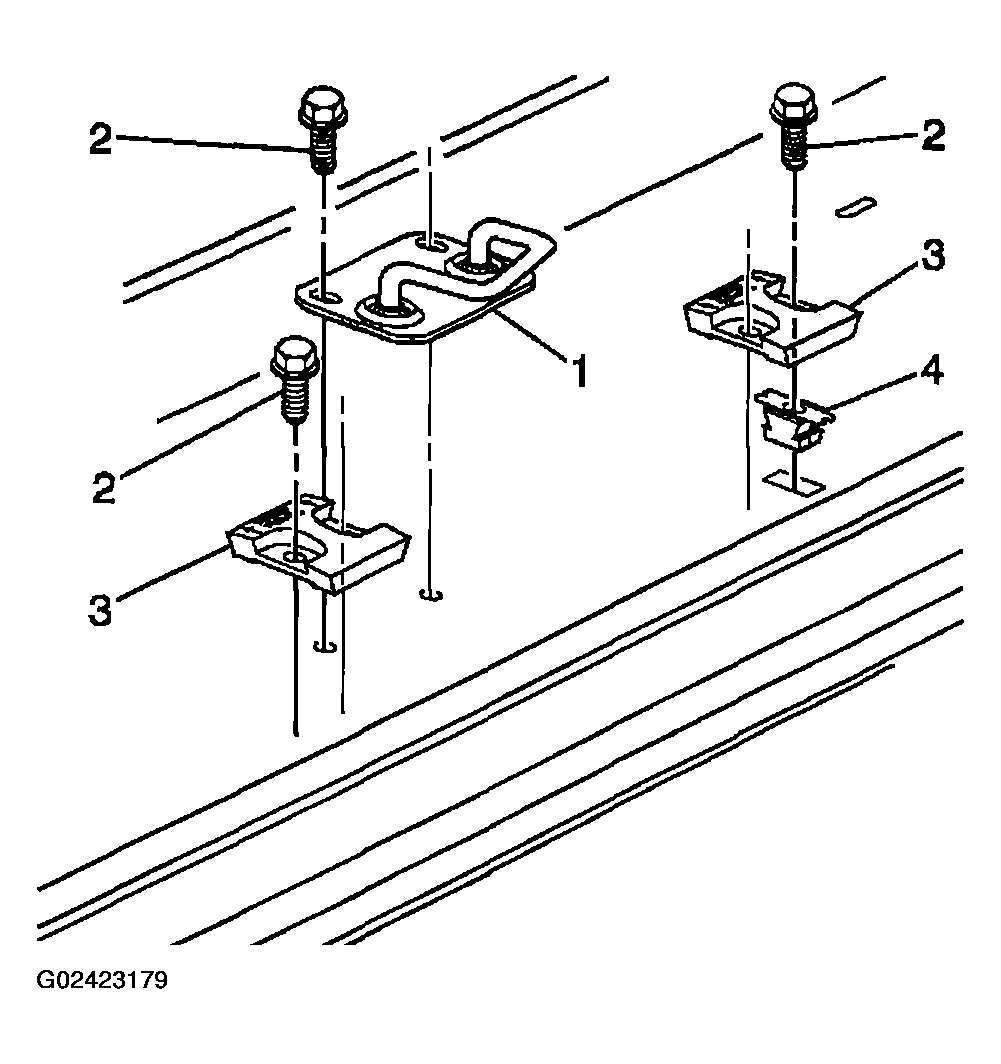

    Fig 1: Installing Lower Striker
    G02423179Courtesy of GENERAL MOTORS CORP.
