Scan Tool Data List

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

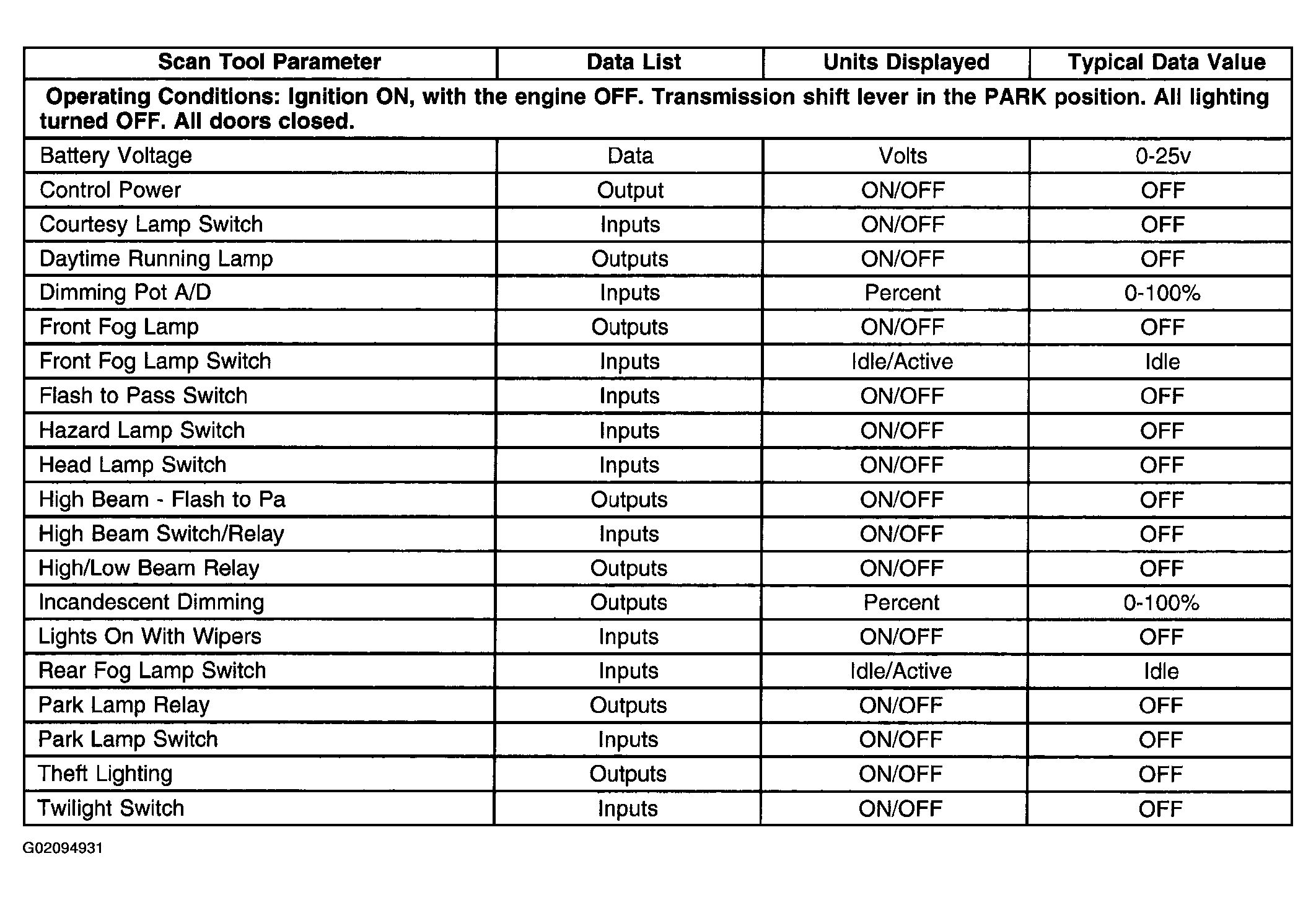

Fig 1: Climate Control Panel

Courtesy of GENERAL MOTORS CORP.

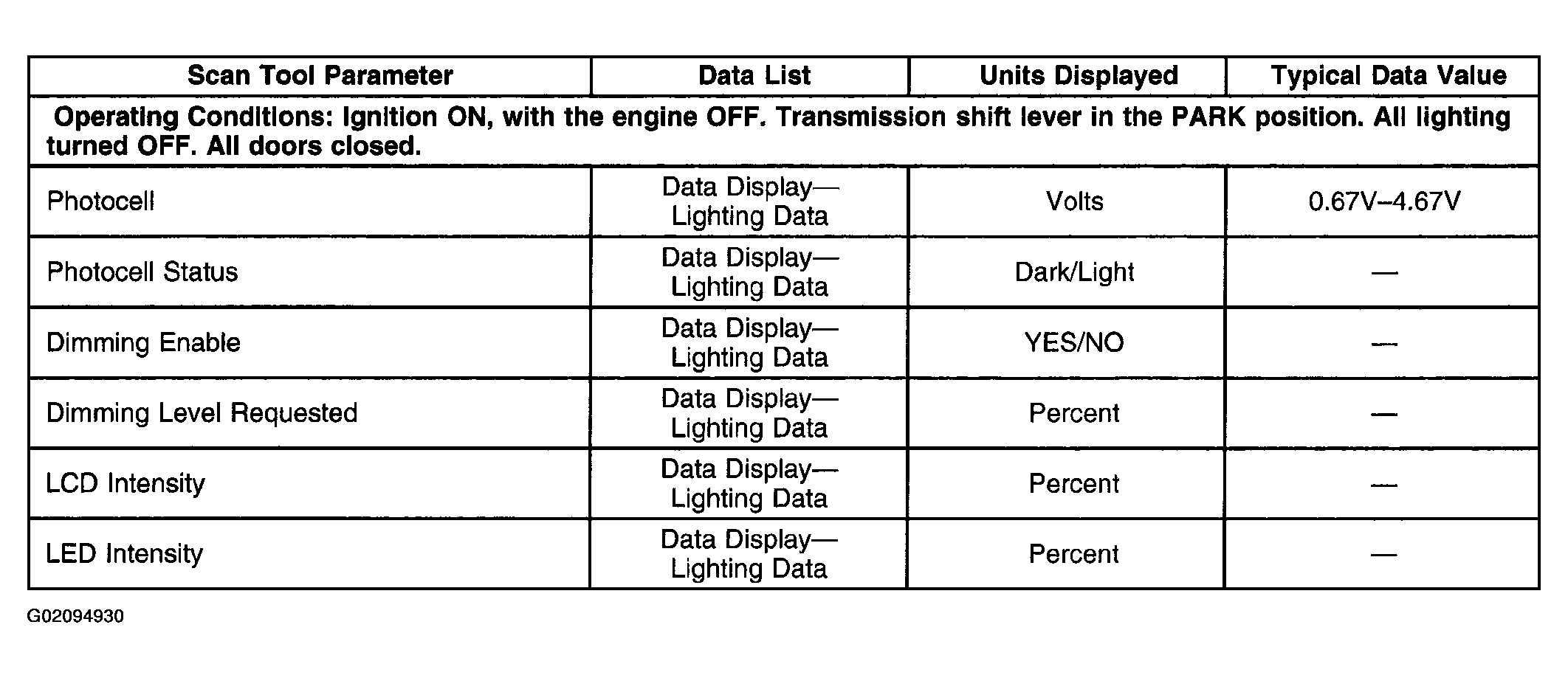

Fig 2: Dash Integration Module

Courtesy of GENERAL MOTORS CORP.

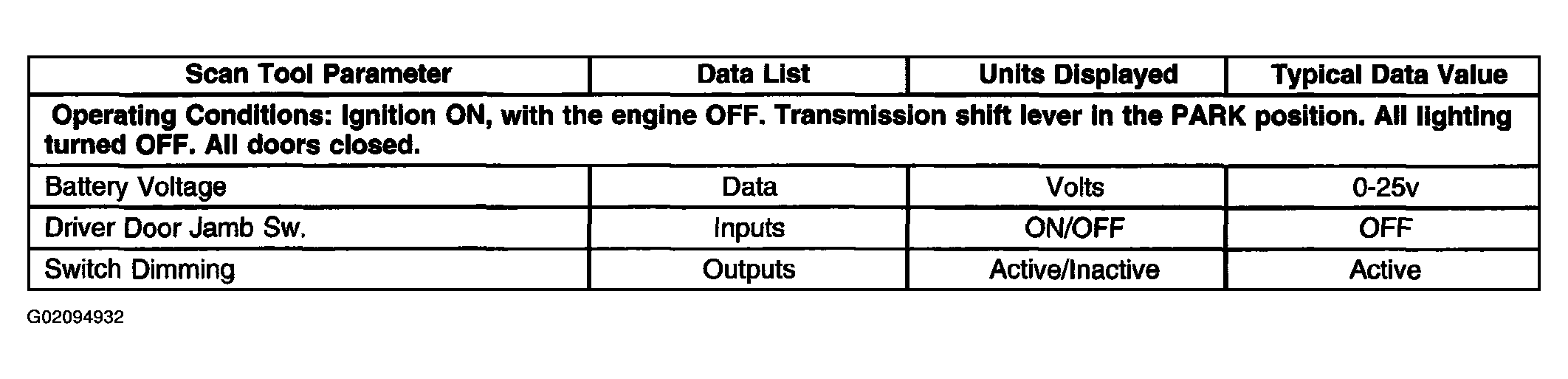

Fig 3: Driver Door Module

Courtesy of GENERAL MOTORS CORP.

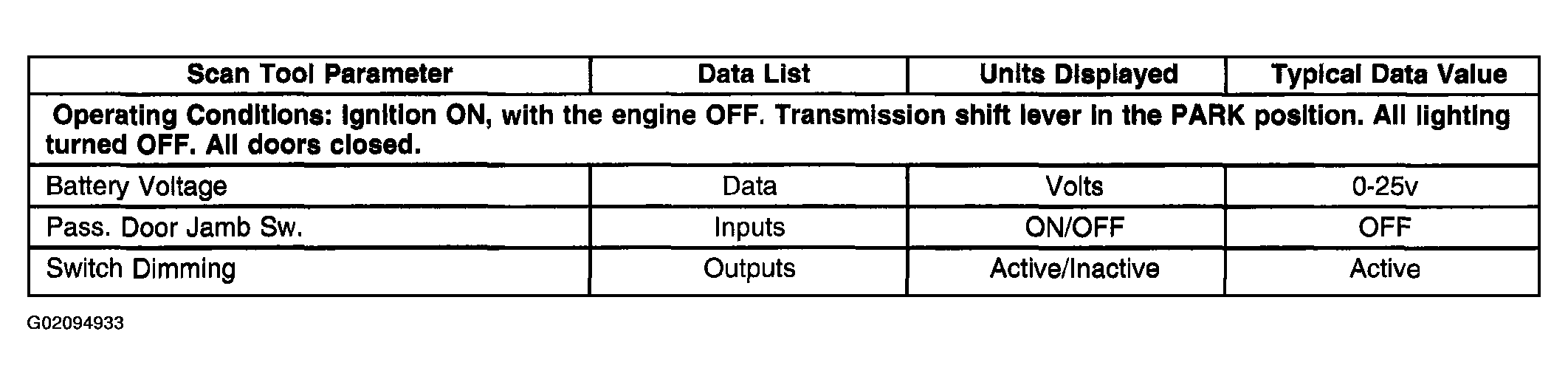

Fig 4: Passenger Door Module

Courtesy of GENERAL MOTORS CORP.

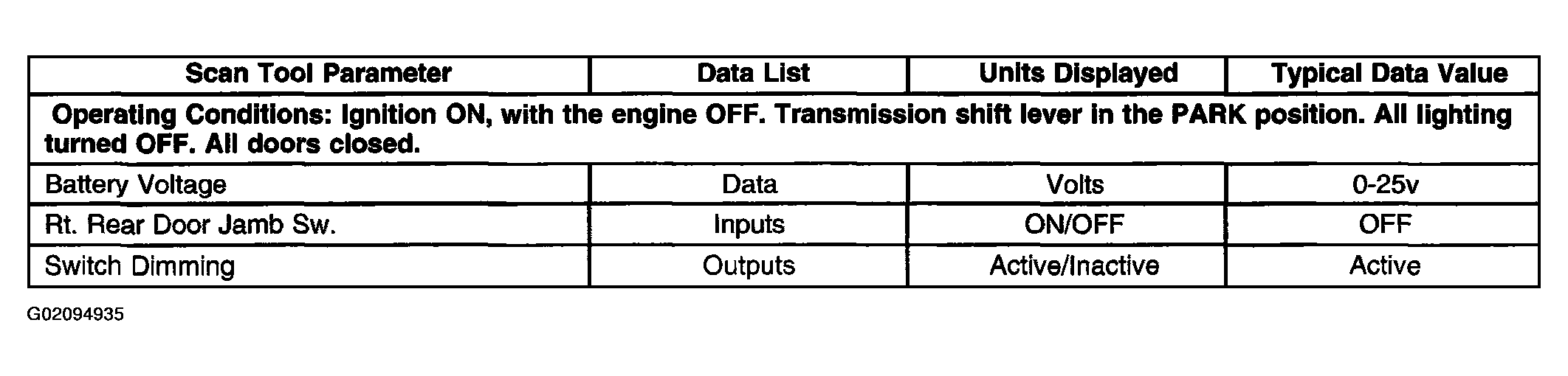

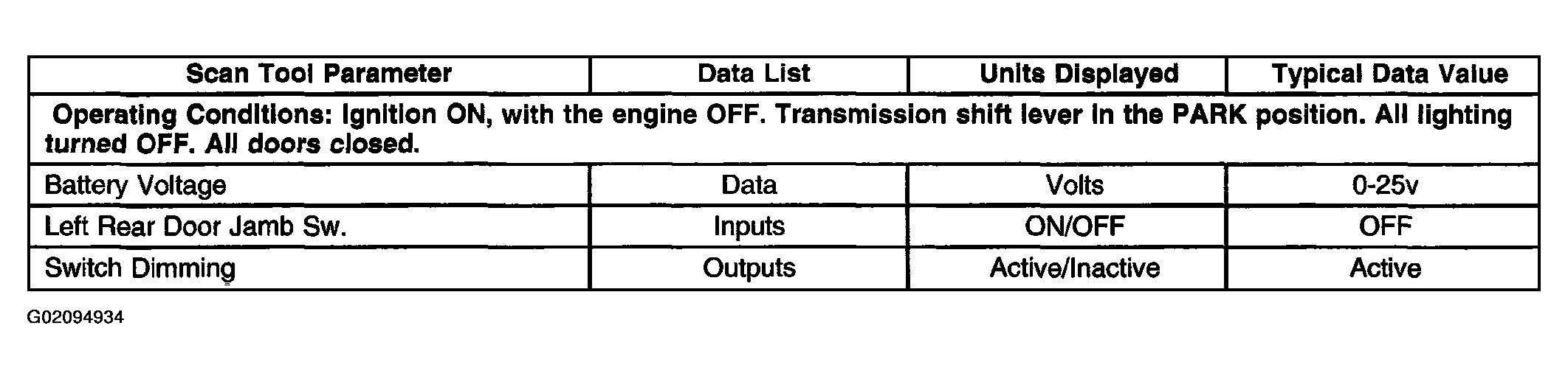

Fig 5: Left Rear Door Module

Courtesy of GENERAL MOTORS CORP.

Fig 6: Right Rear Door Module

Courtesy of GENERAL MOTORS CORP.

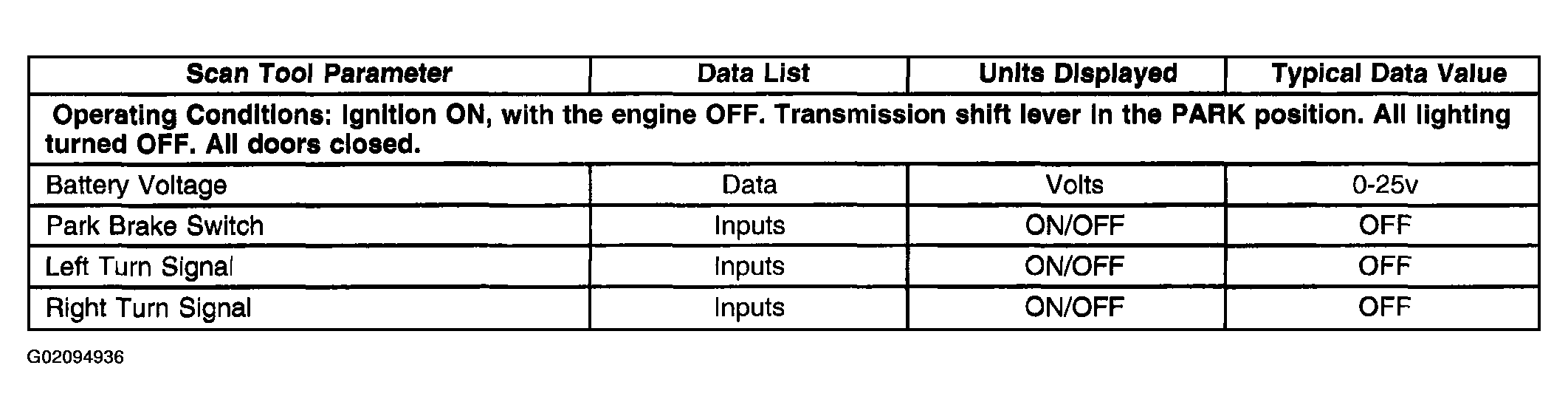

Fig 7: Instrument Panel Cluster

Courtesy of GENERAL MOTORS CORP.

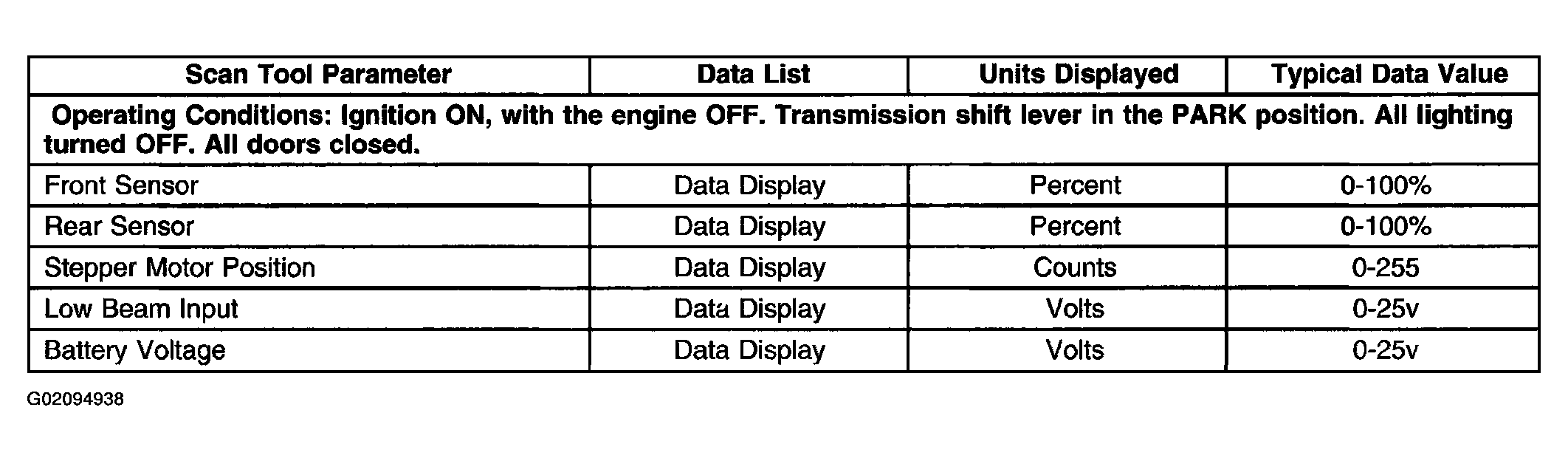

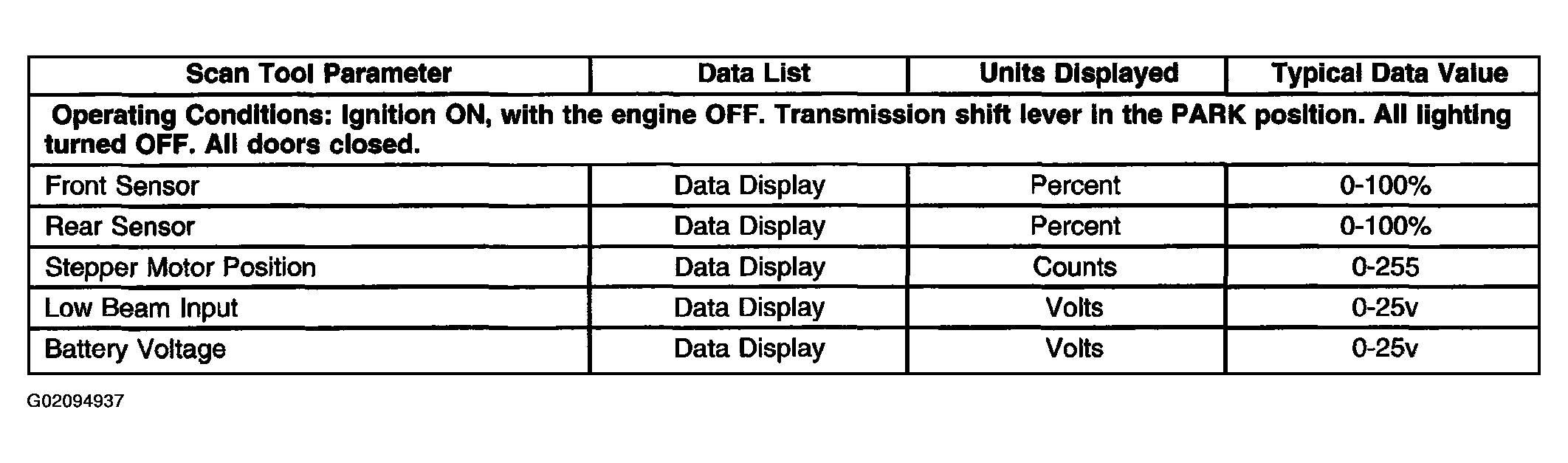

Fig 8: Headlamp Leveling Module - LH

Courtesy of GENERAL MOTORS CORP.

Fig 9: Headlamp Leveling Module - LH

Courtesy of GENERAL MOTORS CORP.

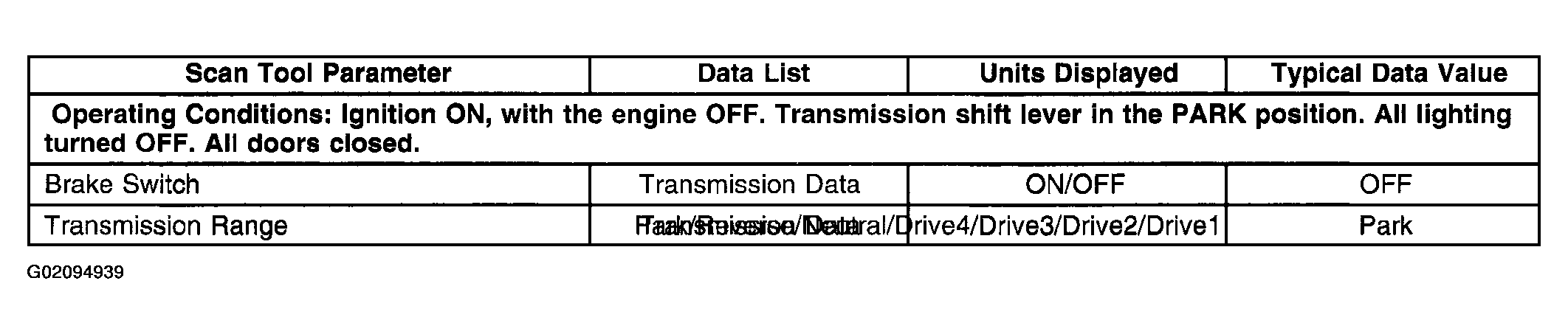

Fig 10: Powertrain Control Module

Courtesy of GENERAL MOTORS CORP.

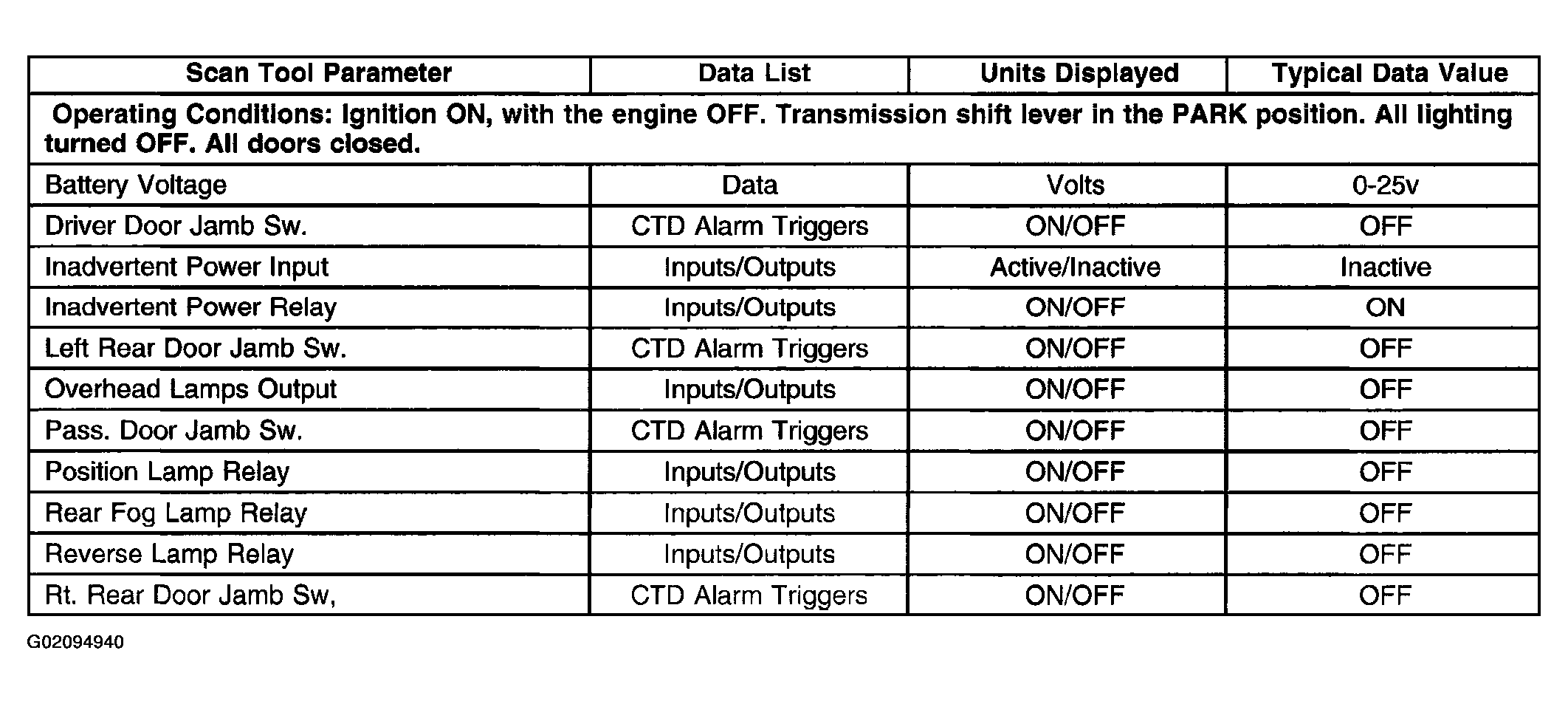

Fig 11: Rear Integration Module

Courtesy of GENERAL MOTORS CORP.
