Cellular Communication Component Views
WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

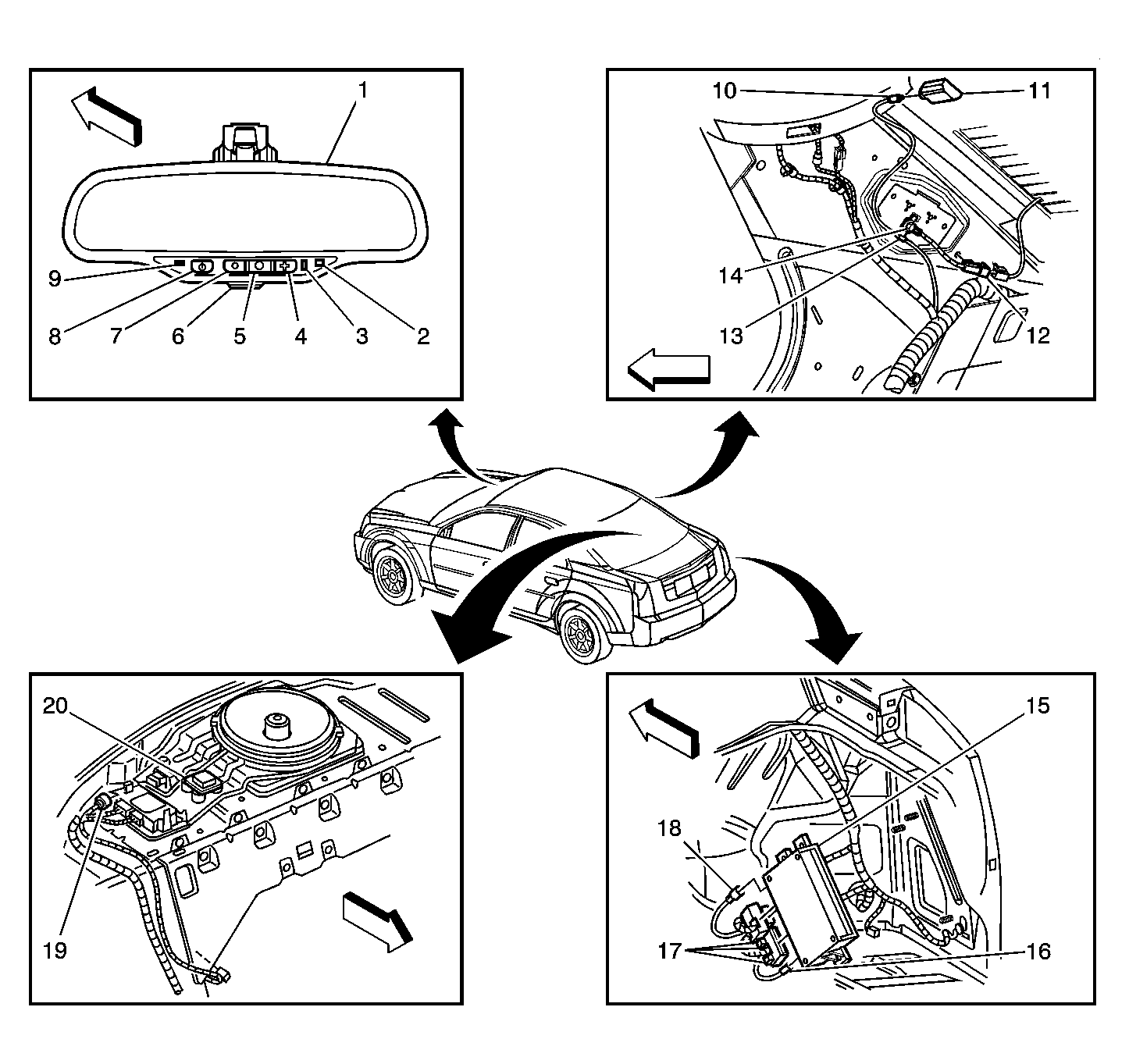

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inside Rearview Mirror (ISRVM) |
| 2 |
Automatic Dimming Photo Cell |
| 3 |
OnStar Indicator Light |
| 4 |
Emergency Button |
| 5 |
OnStar Button |
| 6 |
Cellular Microphone |
| 7 |
Call Button |
| 8 |
Electrochromatic Mirror Button |
| 9 |
Electrochromatic On Indicator |
| 10 |
Cellular Antenna Coax Connector |
| 11 |
Cellular Antenna |
| 12 |
Rear Defogger Connector C2 |
| 13 |
Splice S309 |
| 14 |
Ground G304 |
| 15 |
Vehicle Communication Interface Module (VCIM) |
| 16 |
Navigation Antenna Coax Connector |
| 17 |
VCIM Connectors |
| 18 |
Cellular Antenna Coax Connector |
| 19 |
Navigation Antenna Coax Connector |
| 20 |
Navigation Antenna |

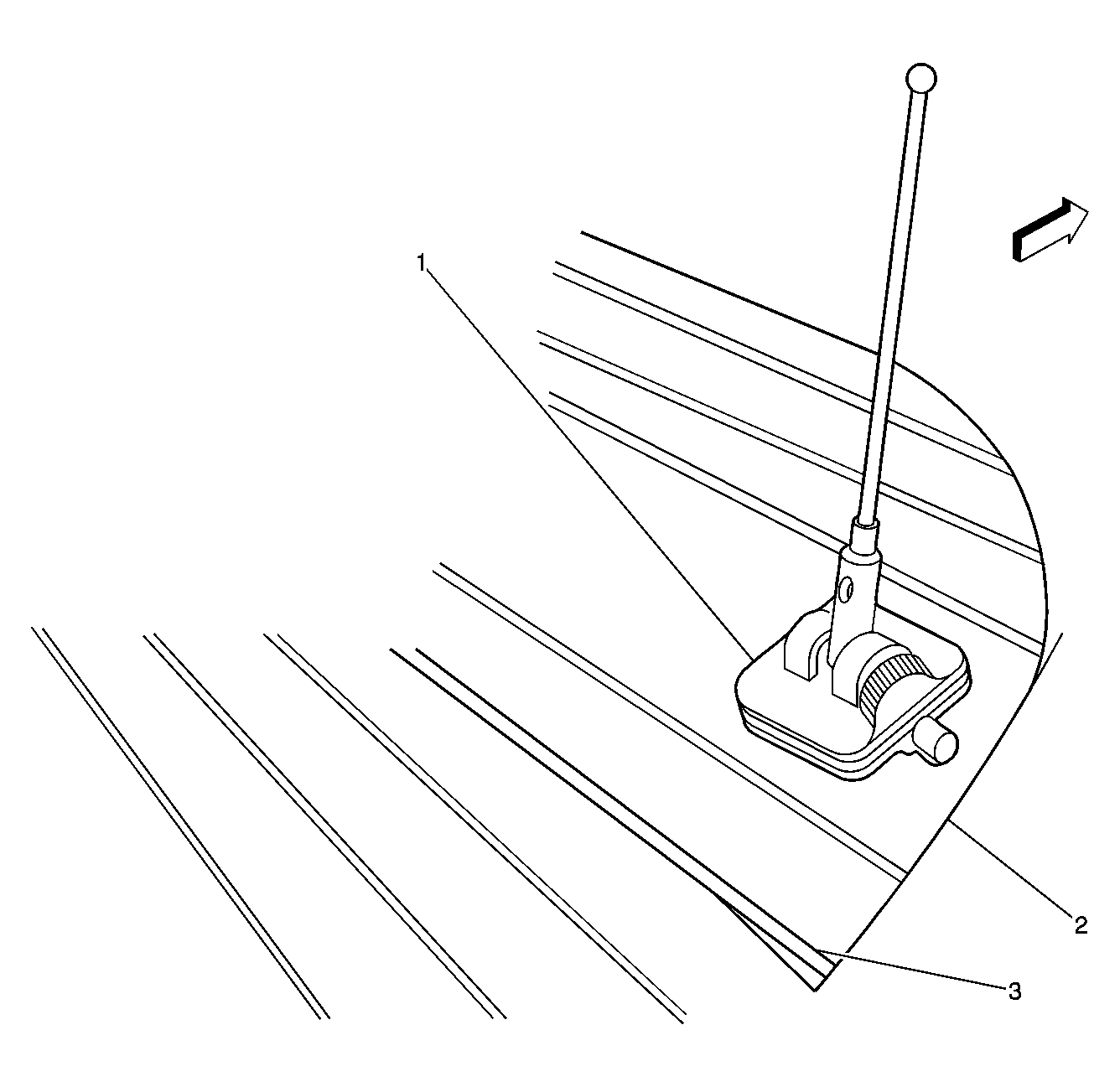

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Cellular Antenna (Outside View) |
| 2 |
Upper Right Corner of Rear Window Glass |
| 3 |
Rear Window Defogger Grid |
