Dimensions - Body: Notes

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

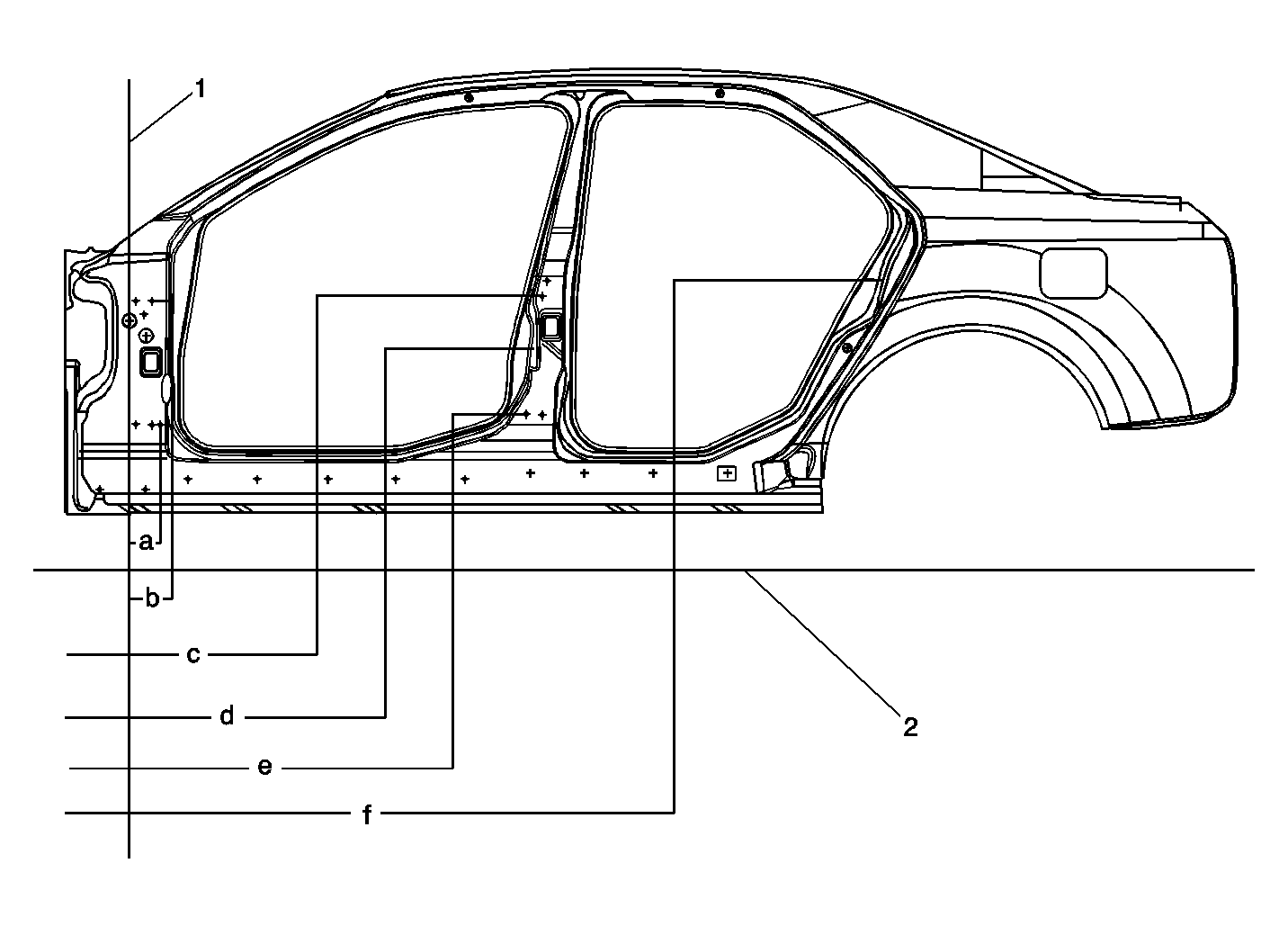

Fig 1: Body Dimensions

Courtesy of GENERAL MOTORS CORP.

Dimensions - Body

Location	Description	Length	Width	Height
1	Zero Line 19 mm Gage Hole	0	702 mm	965 mm
2	Datum Line	0	0	0
a	Door Hinge Attach	140 mm	814 mm	612 mm
b	Door Hinge Attach	140 mm	806 mm	955 mm
c	Door Hinge Attach	1217 mm	819 mm	975 mm
d	Upper Door Lock Striker Attach	1185 mm	78 mm	834 mm
e	Door Hinge Attach	1169 mm	819 mm	645 mm
f	Upper Door Lock Striker Attach	2157 mm	781 mm	1022 mm
All dimensions are measured from a zero line, a center line, and a common datum. All dimensions are symmetrical unless otherwise specified.
