ABS Component Views
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror-Driver |
| 2 | Fog Lamp/Rear Compartment Lid Release Switch (Domestic), Fog Lamp Switch (Export) |
| 3 | Dimmer Switch |
| 4 | Dimmer/Head Up Display (HUD) Switch |
| 5 | Instrument Panel Cluster (IPC) |
| 6 | Vanity Mirror Lamp-Left |
| 7 | Driver Information Center (DIC) Switch-Right |
| 8 | Hazard Switch |
| 9 | Radio |
| 10 | HVAC Control Module |
| 11 | Vanity Mirror Lamp-Right |
| 12 | Door Switch-Passenger |
| 13 | Outside Rearview Mirror-Passenger |
| 14 | Footwell Courtesy Lamp-Right |
| 15 | Fuel Door Lock Release Switch (Domestic), Rear Compartment Lid/Fuel Door Lock Release Switch (Export) |
| 16 | Traction/Suspension Control Switch |
| 17 | Auxiliary Power Outlet Connector |
| 18 | Cigar Lighter |
| 19 | Horn Switch |
| 20 | Seat Control Module (SCM)-Driver (W/Memory Seats), Seat Relay Center-Driver (W/O Memory Seats) |
| 21 | Seat Adjuster Switch-Driver |
| 22 | Footwell Courtesy Lamp-Left |
| 23 | Door Switch-Driver |

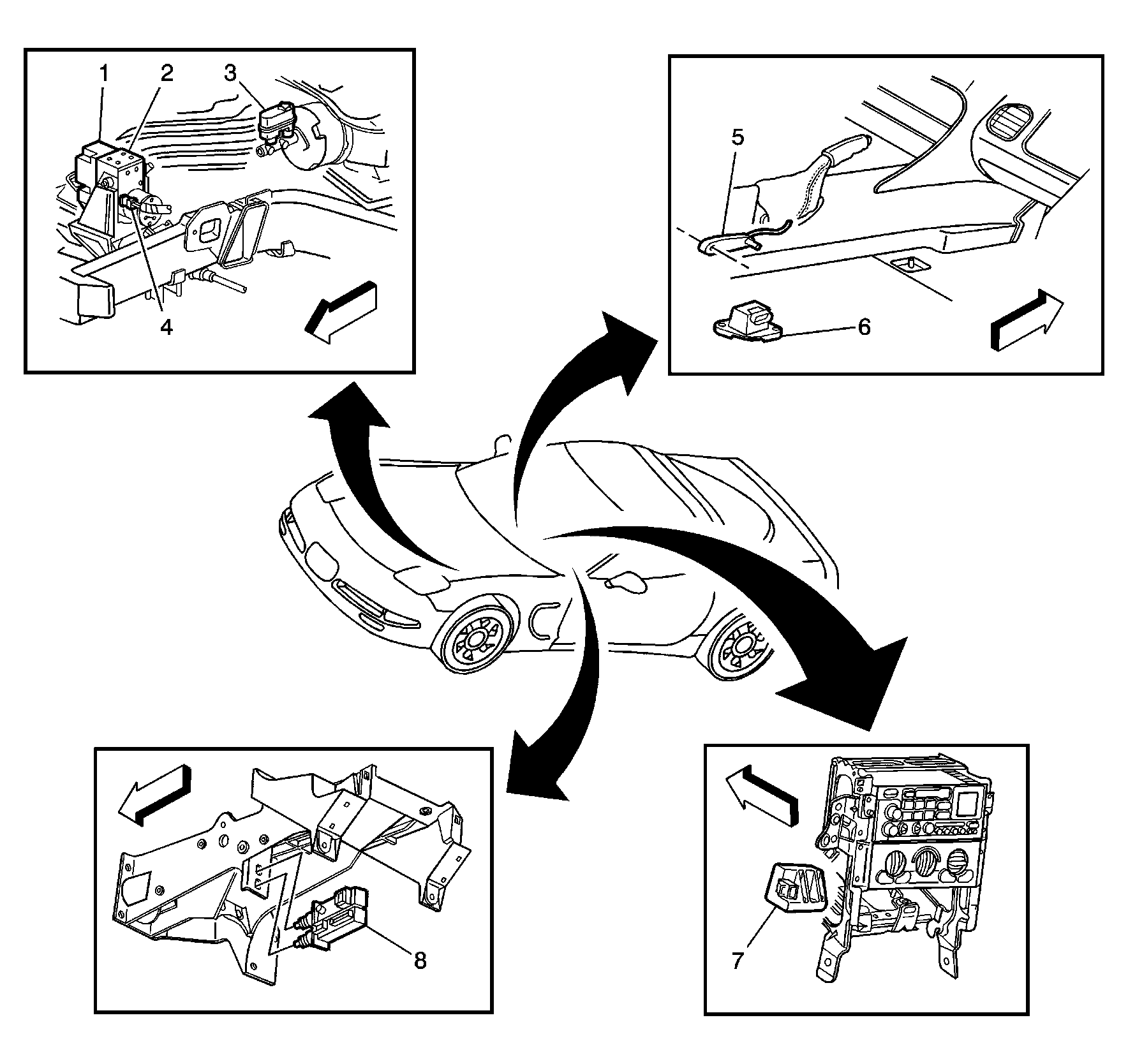

| Callout | Component Name |
|---|---|
| 1 | Electronic Brake Control Module (EBCM) |
| 2 | Brake Pressure Modular Valve (BPMV) |
| 3 | Brake Fluid Level Switch |
| 4 | Brake Fluid Pressure Sensor |
| 5 | Park Brake Switch |
| 6 | Lateral Accelerometer Sensor |
| 7 | Yaw Rate Sensor |
| 8 | Stoplamp Switch |

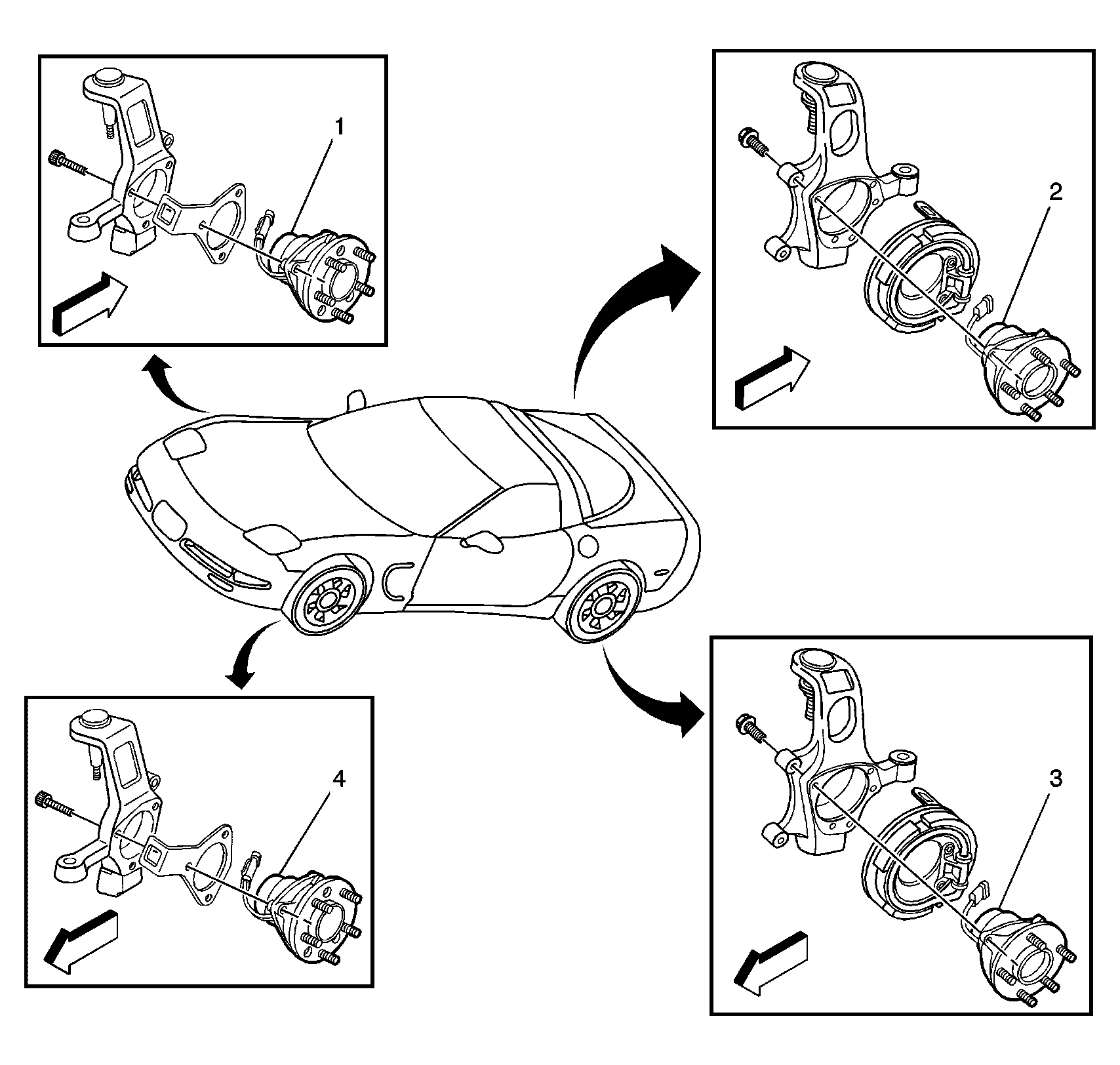

| Callout | Component Name |
|---|---|
| 1 | Wheel Speed Sensor (WSS) - RF |
| 2 | Wheel Speed Sensor (WSS) - RR |
| 3 | Wheel Speed Sensor (WSS) - LR |
| 4 | Wheel Speed Sensor (WSS) - LF |

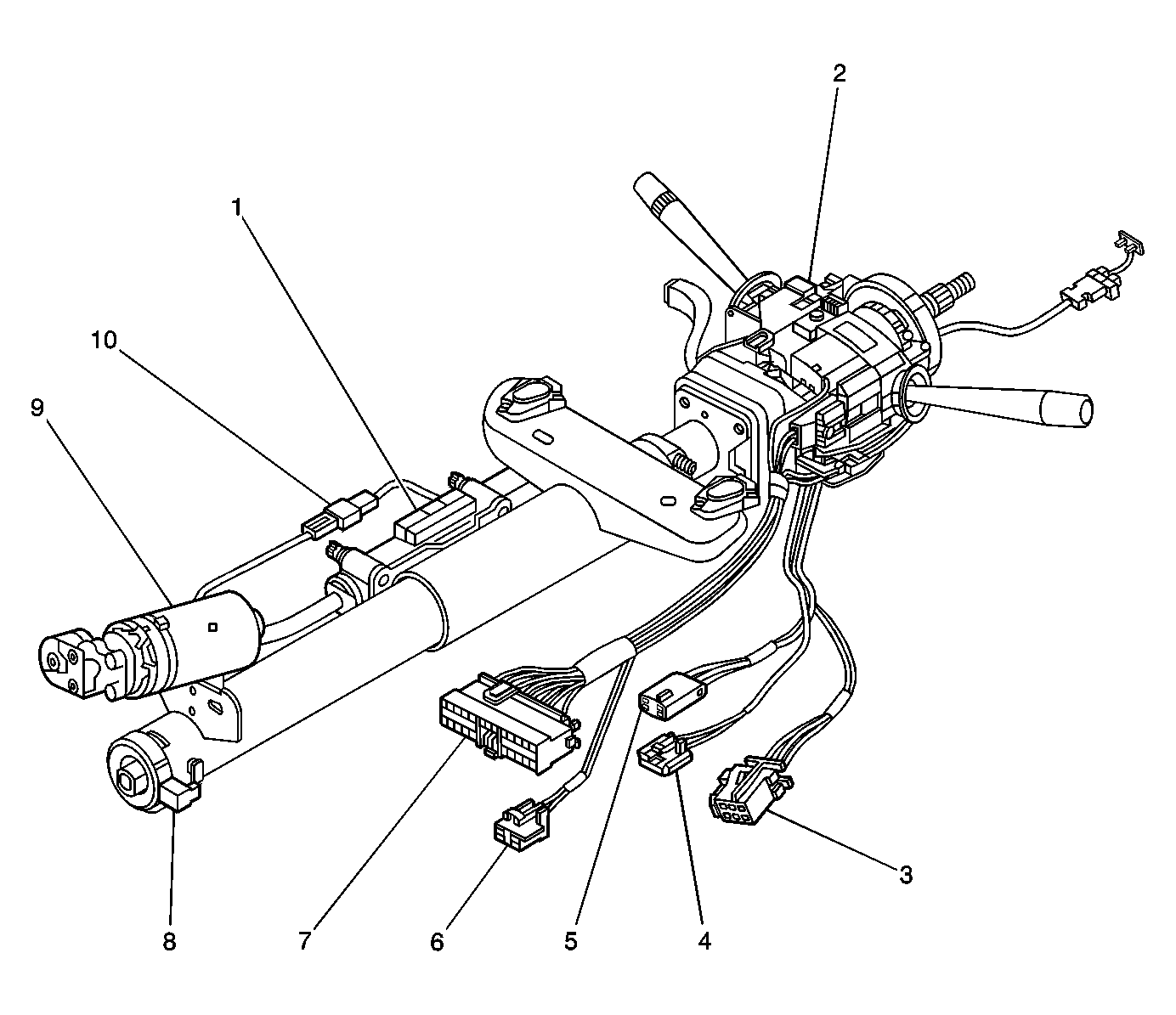

| Callout | Component Name |
|---|---|
| 1 | Telescoping Sensor |
| 2 | Steering Column Lock |
| 3 | C219 |
| 4 | C207 |
| 5 | C211 |
| 6 | C217 |
| 7 | C209 |
| 8 | Steering Wheel Position Sensor |
| 9 | Telescoping Drive Motor |
| 10 | C210 |
