Installation Procedure
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

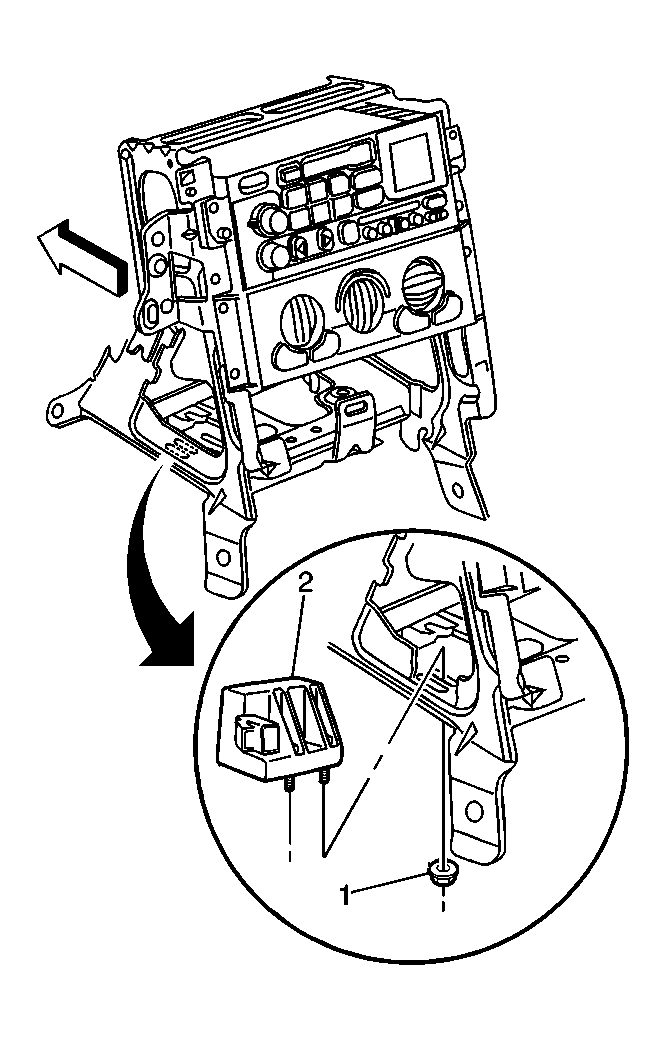

- Install the yaw rate sensor (2) onto the bracket.
- Install the yaw rate sensor mounting bolts (1).
Tighten: Tighten the nuts to 7 N.m (62 lb in).
- Connect the yaw rate sensor electrical connector.
- Install the IP accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory in Instrument Panel, Gages and Console.
- Turn the ignition switch to the ON position, engine off.
- Perform the Diagnostic System Check - ABS .
NOTE:
Refer to Fastener Notice in Cautions and Notices.
